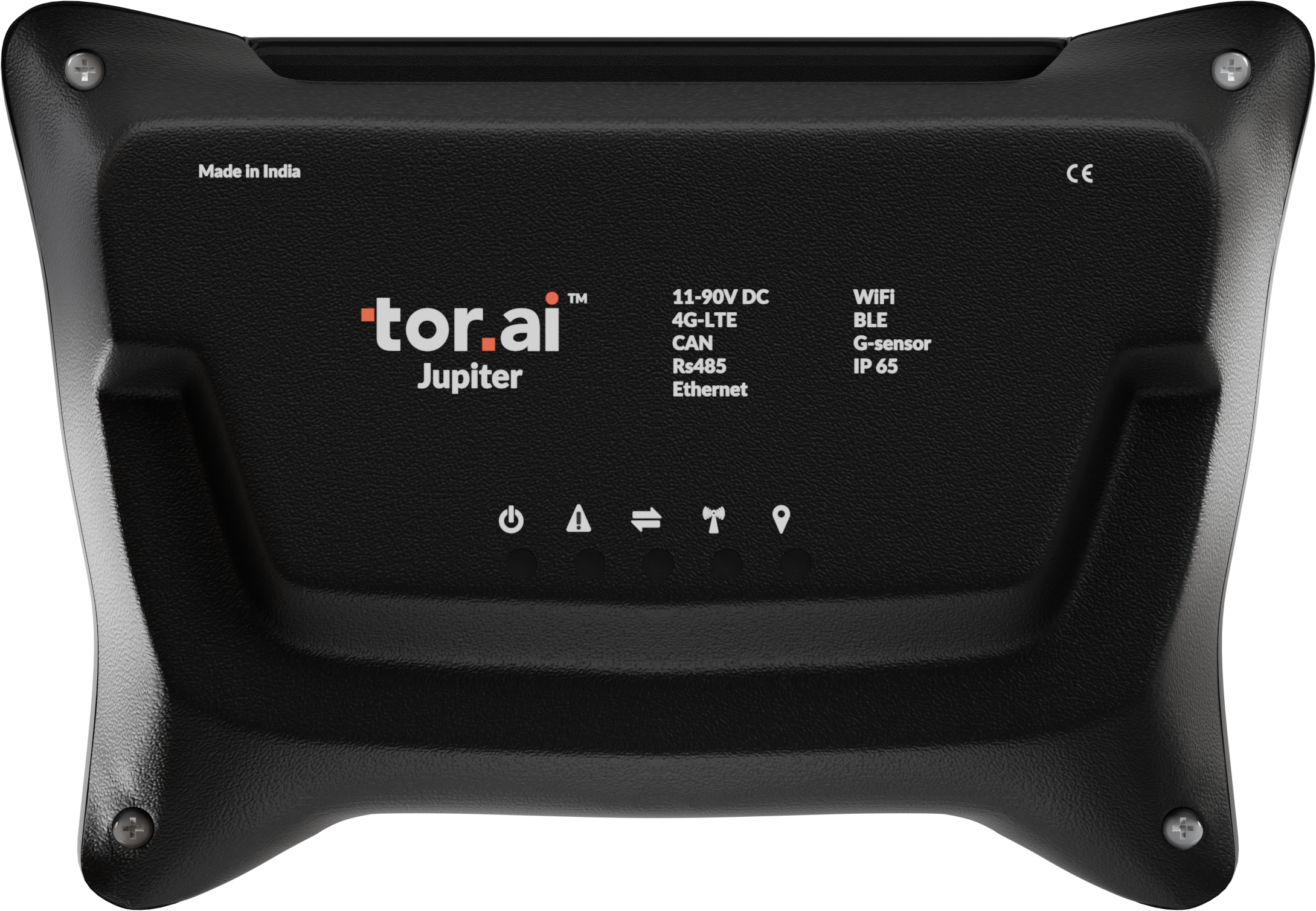

Tor Jupiter
Industrial application device having 4G LTE Cat1 connectivity with flexible communication protocol support and flexible Inputs along with a high capacity battery backup
Features
Gain Real-Time Insights, remotely
Keep a watchful eye on your industrial equipment's health, even remotely
Fuel Efficiency at Your Fingertips
Track fuel consumption precisely with support for analog and Bluetooth sensors. (add icon for AI and BLE sensor)
Seamless communication with Industrial Protocols
Leverage industry-standard protocols like CAN bus and Modbus over RS485 for effortless integration
Uninterrupted Connectivity with Ethernet Support
Enjoy reliable data transmission through Ethernet connectivity
Extended Operation with Battery Backup
Maintain operation for hours even during power outages with the long-lasting battery
Adaptable to Your Needs
The device boasts a variety of analog and digital inputs/outputs, allowing for flexible integration with diverse equipment and sensors
Reliable Data Storage with 128MB Flash Memory
Ensure data security and retrieval even during extended network disruptions with ample flash memory
Use Cases
Capture your product’s real-world performance, safely and securely upgrade your products in real-time with OTA/FOTA upgrades and gain differentiated service advantage by remote diagnostics.
Capture your Battery Management System’s real-world performance, extend battery lifespan through real-time monitorin, remote diagnostics & OTA upgrades.
Improve your fleet’s effective utilization by closely monitoring fleet operations across fleet status, driver behaviour, charging/ discharging trend and route scheduling and adherence.
Make better risk profiling of claims by using analytics across vehicle performance, driving behaviour, theft and crash event data for warranty & insurance claims.
Specification
| Power Supply | Jupiter 511 | Jupiter 512 | Jupiter 513 | Jupiter 514 | Jupiter 611 | Jupiter 612 | Jupiter 811 |
| Supply Voltage | 11-90 V DC | 11-90 V DC | 11-90 V DC | 11-90 V DC | 11-90 V DC | 11-90 V DC | 11-30 V DC |
| Max Supply Voltage | 90 V DC | 90 V DC | 90 V DC | 90 V DC | 90 V DC | 90 V DC | 30 V DC |
| Reverse Polarity Protection | 0 to -90 V DC | 0 to -90 V DC | 0 to -90 V DC | 0 to -90 V DC | 0 to -90 V DC | 0 to -90 V DC | 0 to -30 V DC |
| Max Operating Current | <100 mA | <100 mA | <100 mA | <100 mA | <100 mA | <100 mA | <100 mA |
| Peak Operating Current | 2A @network activities | 2A @network activities | 2A @network activities | 2A @network activities | 2A @network activities | 2A @network activities | 2A @network activities |
| BackUp Battery | 1000 mAH , Li-Ion 3.7 V | 1000 mAH , Li-Ion 3.7 V | 1000 mAH , Li-Ion 3.7 V | 1000 mAH , Li-Ion 3.7 V | 1000 mAH , Li-Ion 3.7 V | 1000 mAH , Li-Ion 3.7 V | NA |
| Communication | Jupiter 511 | Jupiter 512 | Jupiter 513 | Jupiter 514 | Jupiter 611 | Jupiter 612 | Jupiter 811 |
| Cellular | 4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 2G- GSM 900 MHz/1800 MHz | 4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 2G- GSM 900 MHz/1800 MHz | 4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 2G- GSM 900 MHz/1800 MHz | NA | 4G- LTE-FDD B1/B3/B5/B7/ B8/B20 LTE-TDD B38/B40/B41 WCDMA-B1/B5/B8 2G- GSM 900 MHz/1800 MHz | NA | NA |
| WIFI | NA | NA | NA | IEEE 802.11 Wireless network | NA | IEEE 802.11 Wireless network | NA |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS | GPS, GLONASS, BeiDou, Galileo, QZSS | GPS, GLONASS, BeiDou, Galileo, QZSS | GPS, GLONASS, BeiDou, Galileo, QZSS | GPS, GLONASS, BeiDou | GPS, GLONASS, BeiDou | NA |
| Network Protocol | Http, Mqtt, TCP IP | Http, Mqtt, TCP IP | Http, Mqtt, TCP IP | Mqtt | Http, Mqtt, TCP IP | Mqtt | Ethernet |
| Interfaces | Jupiter 511 | Jupiter 512 | Jupiter 513 | Jupiter 514 | Jupiter 611 | Jupiter 612 | Jupiter 811 |
| Digital Input | 8 (0-40 V) | 8 (0-40 V) | 8 (0-40 V) | 8 (0-40 V) | 0 | 0 | 0 |
| Digital output | 4 | 4 | 4 | 4 | 0 | 0 | 0 |
| Analogue Input | 8 (30v)- Voltage based | 8 (4-20mA) | 8 (6 voltage based and 2 current based) | 8 (6 voltage based and 2 current based) | 0 | 0 | 0 |
| CAN | 1 | 1 | 1 | 1 | 1 | 1 | 0 |
| RS232/485 | 1 (RS485) | 1 (RS485) | 1 | 1 (RS485) | 1 | 1 (RS485) | 1 |
| Counter Input (0-1000 Hz) | 2 | 2 | 2 | 2 | NA | NA | NA |
| Hour Meter | 1 | 1 | 1 | 1 | NA | NA | NA |
| Ethernet | NA | NA | NA | NA | 1 | 1 | 1 |
| GNSS Antenna | External | External | External | External | External | External | NA |
| Cellular Antenna | External GSM | External GSM | External GSM | External GSM | External GSM | External GSM | NA |
| LED Indication | Power, Network, GNSS | Power, Network, GNSS | Power, Network, GNSS | Power, Network, GNSS | Power, Network, GNSS | Power, Network, GNSS | NA |
| SIM | Micro | Micro | Micro | Micro | Micro | Micro | Micro |
| Memory | 128MB | 128MB | 128MB | 128MB | 8MB | 8MB | 8MB |
| Bluetooth | Jupiter 511 | Jupiter 512 | Jupiter 513 | Jupiter 514 | Jupiter 611 | Jupiter 612 | Jupiter 811 |
| Specification | BLE 4.2 | BLE 4.2 | BLE 4.2 | BLE 4.2 | NA | NA | NA |
| Supported peripherals | Fuel sensors, BLE Beacons | Fuel sensors, BLE Beacons | Fuel sensors, BLE Beacons | Fuel sensors, BLE Beacons | NA | NA | NA |
| Additional Features | Jupiter 511 | Jupiter 512 | Jupiter 513 | Jupiter 514 | Jupiter 611 | Jupiter 612 | Jupiter 811 |
| Configuration & FW update | FOTA | FOTA | FOTA | FOTA | FOTA | FOTA | NA |
| Sensors | Accelerometer | Accelerometer | Accelerometer | Accelerometer | NA | NA | NA |
| Operating Environment | Jupiter 511 | Jupiter 512 | Jupiter 513 | Jupiter 514 | Jupiter 611 | Jupiter 612 | Jupiter 811 |
| Operating Temperature | -40 to +85 deg C | -40 to +85 deg C | -40 to +85 deg C | -10 to +70 deg C | -40 to +85 deg C | -10 to +70 deg C | -40 to +85 deg C |
| Operating Humidity | 85 Rh | 85 Rh | 85 Rh | 85 Rh | 85 Rh | 85 Rh | 85 Rh |
| Vibration | 2g, 10-150 Hertz | 2g, 10-150 Hertz | 2g, 10-150 Hertz | 2g, 10-150 Hertz | 2g, 10-150 Hertz | 2g, 10-150 Hertz | 2g, 10-150 Hertz |
| Enclosure Ingress Protection (IP) | IP 65 | IP 65 | IP 65 | IP 65 | NA | NA | NA |
