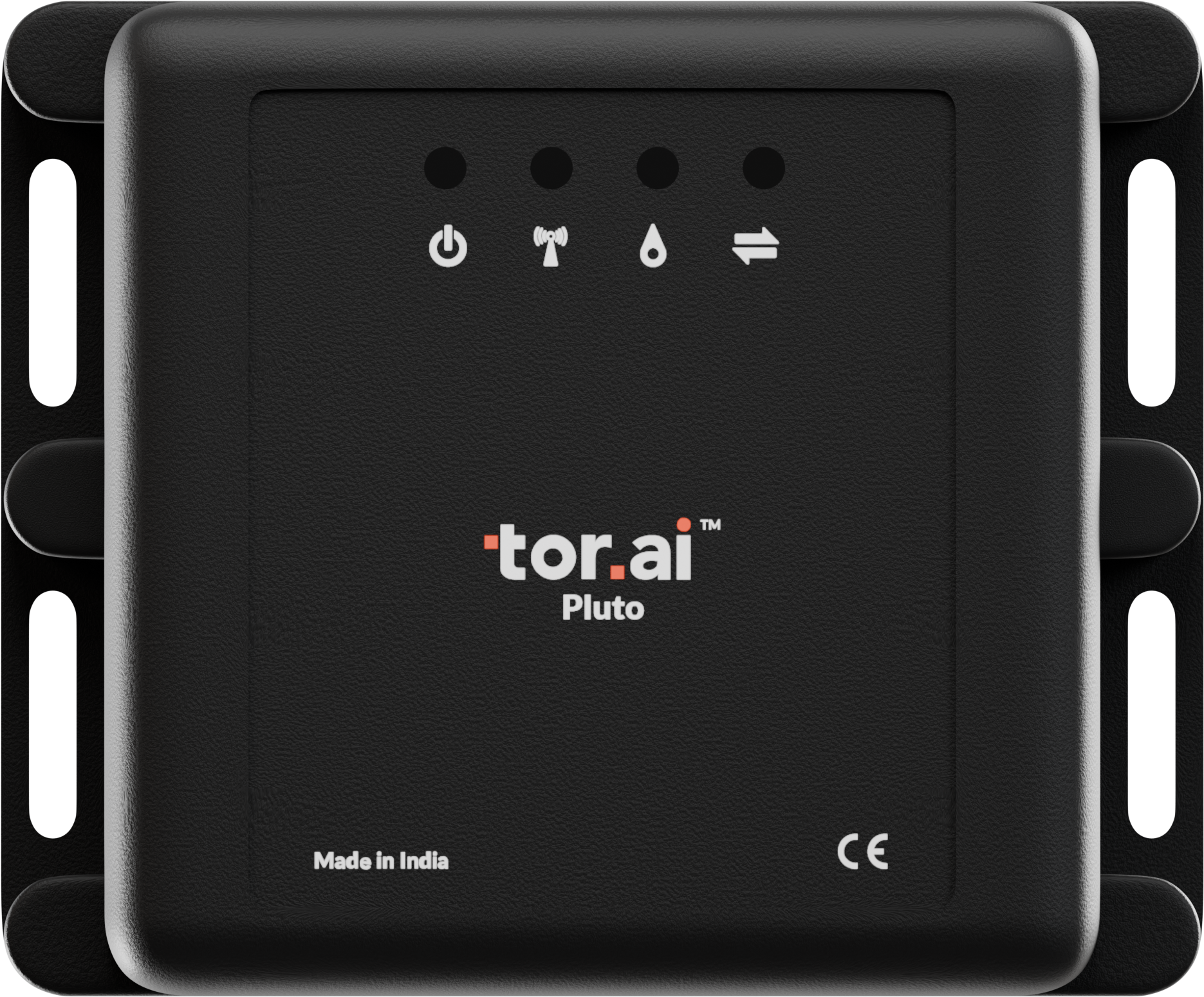

Tor Pluto
- Gain complete visibility of energy consumption across several boards.
- Maintain end-to-end traceability to gain insight into power quality issues.
- Reduce total energy cost through comprehensive visibility across several parameters.
Configurability
Web based utility to configure MODBUS memory map
FOTA enabled
Easily reconfigurable remotely over FOTA
Interfaces
Lite Gateway with serial communication interfaces : RS 485/ RS 232 / TCP-IP
Fully Certified
Type tested and fully certified by NABL as well as EMI EMC tested
Value to your business
- Gain complete visibility of energy consumption across several boards.
- Maintain end-to-end traceability to gain insight into power quality issues.
- Reduce total energy cost through comprehensive visibility across several parameters.
Description
- Ability to integrate sensors and multiple controllers on RS485 MODBUS RTU and Serial port RS232 MODBUS RTU/Serial protocols
- Inbuilt GSM triangulation with wireless connectivity under GSM, GPRS and 2G options
- Ideal input power range of 11 to 36V DC supply
- CE & RoHS certified and is compliant to ISO 7637 – 2 , IEC 6100, ESD EFT Burst, ISO 11452-4,-2, ISO 67637-2
Specification
| Power Supply | Pluto 311 | Pluto 212 | Pluto 312 | Pluto 411 |
| Supply Voltage | 11-36 V DC | 11-36 V DC | 11-30 V DC | 11-90 V DC |
| Max Supply Voltage | 36 V DC | 36 V DC | 30 V DC | 90 V DC |
| Load Dump Protection | 12 V | 12 V | NA | NA |
| Reverse Polarity Protection | 0 to -36 V DC | 0 to -36 V DC | 0 to -30 V DC | 0 to -90 V DC |
| Max Operating Current | <100 mA | <100 mA | <100 mA | <100 mA |
| Peak Operating Current | 2A @network activities | 2A @network activities | 2A @network activities | 2A @network activities |
| BackUp Battery | NA | NA | NA | NA |
| Communication | Pluto 311 | Pluto 212 | Pluto 312 | Pluto 411 |
| Cellular | 2G Quad-band GSM 850 / 900 / 1800 / 1900 MHz | 2G Quad-band GSM 850 / 900 / 1800 / 1900 MHz | 4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 2G- GSM 900 MHz/1800 MHz | 4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 2G- GSM 900 MHz/1800 MHz |
| GNSS | NA | NA | GPS, GLONASS, BeiDou, Galileo, QZSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Network Protocol | Http, Mqtt, TCP IP | Http, Mqtt, TCP IP | Http, Mqtt | Http, Mqtt |
| Interfaces | Pluto 311 | Pluto 212 | Pluto 312 | Pluto 411 |
| Digital Input | 0 | 0 | 2 | 2 |
| Digital output | 0 | 0 | 0 | 1 |
| Analogue Input | 0 | 0 | 2 | 2 |
| CAN | 0 | 0 | NA | 1 |
| RS232/485 | 1 (RS485) | 1 (RS232) | 1 (RS485) | NA |
| Counter Input (0-1000 Hz) | 0 | 0 | NA | NA |
| Hour Meter | 0 | 0 | NA | NA |
| GNSS Antenna | NA | NA | Internal | Internal |
| Cellular Antenna | External GSM | External GSM | Internal GSM | Internal GSM |
| LED Indication | Power, Network, Communication (RS485) | Power, Network, Communication (RS232) | NA | NA |
| SIM | Normal (1) | Normal (1) | Micro | Micro |
| Memory | 200 records @ 1min frequency | 200 records @ 1min frequency | 1000 strings | 1000 strings |
| Bluetooth | Pluto 311 | Pluto 212 | Pluto 312 | Pluto 411 |
| Specification | NA | NA | NA | NA |
| Supported peripherals | Standard RS485 O/P | Standard RS232 O/P | NA | NA |
| Additional Features | Pluto 311 | Pluto 212 | Pluto 312 | Pluto 411 |
| Configuration & FW update | Desktop Config Utility, FOTA (SMS) | Desktop Config Utility, FOTA (SMS) | Web configuration | Web configuration |
| Sleep Modes | NA | NA | Yes | Yes |
| Operating Environment | Pluto 311 | Pluto 212 | Pluto 312 | Pluto 411 |
| Operating Temperature (without battery) | -10 to +70 deg C | -10 to +70 deg C | -10 to +70 deg C | -10 to +70 deg C |
| Storage Temperature (without battery) | -20 to +95 deg C | -20 to +95 deg C | -20 to +95 deg C | -20 to +95 deg C |
| Operating Temperature (with battery) | NA | NA | 0 to 40 deg C | 0 to 40 deg C |
| Storage Temperature (with battery) | NA | NA | 0 to 60 deg C | 0 to 60 deg C |
| Operating Humidity | 85 Rh | 85 Rh | 85 Rh | 85 Rh |
| Vibration | 2g, 10-150 Hertz | 2g, 10-150 Hertz | 2g, 10-150 Hertz | 2g, 10-150 Hertz |
| Enclosure Ingress Protection (IP) | IP 42 | IP 42 | IP 65 | IP 65 |
