Tor Mars

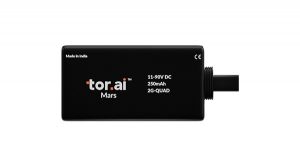

An Industrial IoT gateway designed for real-time monitoring, flexible connectivity, and robust data management across diverse industrial applications.
Overview

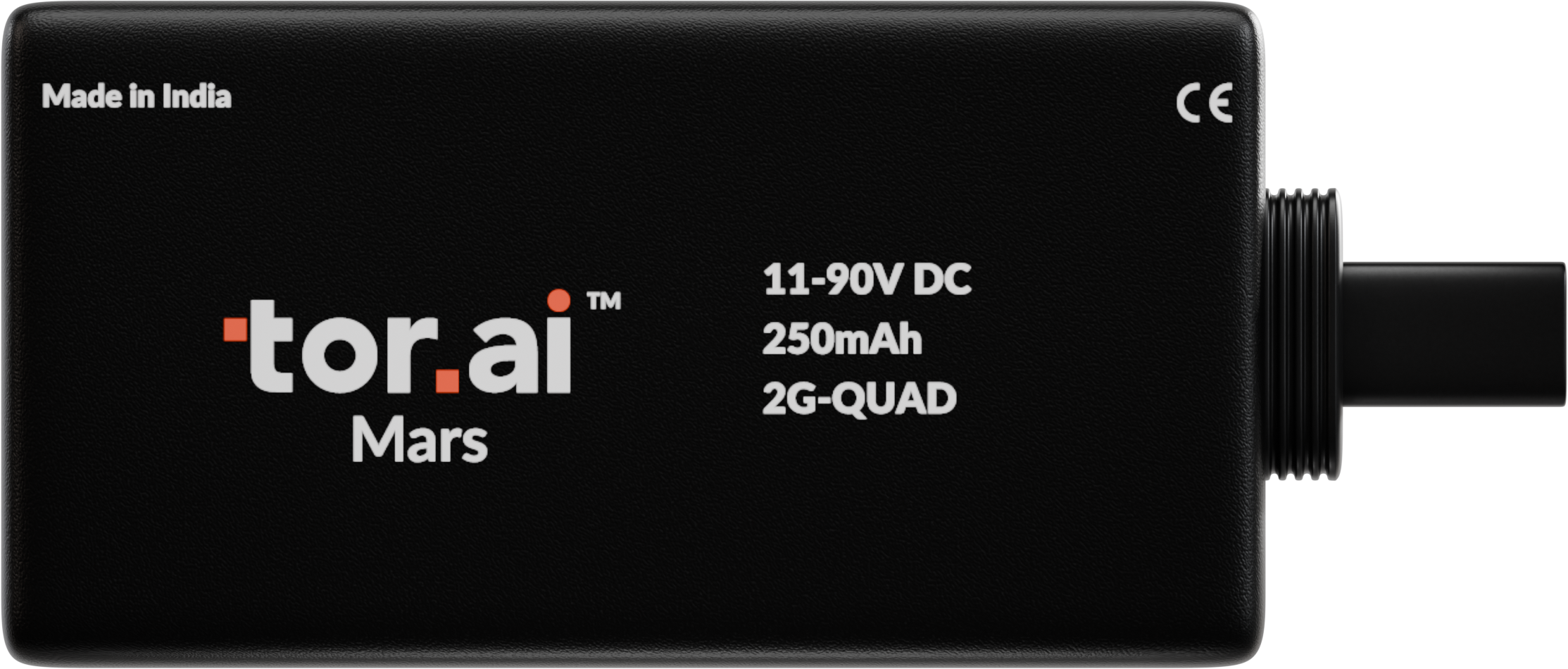

Mars 700 Series
Mars 712 / 713 – Mars 712 offers full I/Os, GNSS, and cellular for smart farming and remote asset control, while Mars 713 is a cost-effective tracker for basic location monitoring.
Features
Uncover Real-Time Vehicle Insights
Gain complete visibility into your fleet's location and movement with our basic GPS tracking. Optimize routes, improve efficiency, and make informed decisions based on real-time data
Go Beyond Location Tracking
Don't settle for just location data. Additionally, leverage the digital input for key on/off detection, providing valuable insights into vehicle usage patterns. The analog input can also be used to monitor battery voltage levels, ensuring timely intervention before a dead battery disrupts operations
Enhanced Security with Remote Immobilization
Take control in critical situations.Our digital output enables vehicle immobilization in case of theft or unauthorized use, providing an extra layer of security for your fleet
Never Lose Sight of the vehicle
Our integrated, compact battery keeps your VTS device transmitting data even when the engine is off or the key is out. This ensures continuous tracking, providing peace of mind for valuable assets
Specifications
Power Supply
| Power Supply | Tor Mars 712 | Mars 713 |
| Supply Voltage | 12-90 V DC | 3*AA Battery |
| Max Supply Voltage | 90 V DC | 5 V DC |
| Reverse Polarity Protection | 0 to -90 V DC | 0 to -5 V DC |
| Max Operating Current | <100 mA | NA |
| Peak Operating Current | 2A @network activities | NA |
| BackUp Battery | 250 mAH , Li-Ion 3.7 V | Slabs |
Communication
| Communication | Tor Mars 712 | Mars 713 |
| Cellular | 2G Quad-band GSM 850 / 900 / 1800 / 1900 MHz | 2G Quad-band GSM 850 / 900 / 1800 / 1900 MHz |
| GNSS | GPS, GLONASS | Traingulation |
| Network Protocol | Http, Mqtt | Mqtt |
Interfaces
| Interfaces | Tor Mars 712 | Mars 713 |
| Digital Input | 1 | NA |
| Digital output | 1 | NA |
| Analogue Input | 1 (0-40 v) | NA |
| GNSS Antenna | Internal | NA |
| Cellular Antenna | Internal GSM | Internal GSM |
| SIM | Micro (1) | Nano (1) |
| Memory | 200 records @1 min frequency | NA |
Additional Features
| Additional Features | Tor Mars 712 | Mars 713 |
| Configuration & FW update | FOTA | NA |
Physical Specification
| Physical Specification | Tor Mars 712 | Mars 713 |
| Dimension | 51 * 98 * 20 (LWH) | 51 * 98 * 20 (LWH) |
Operating Environment
| Operating Environment | Tor Mars 712 | Mars 713 |
| Operating Temperature | -10 to +70 deg C | 0 to 40 deg C |
| Operating Humidity | 85 Rh | NA |
| Vibration | 2g, 10-150 Hertz | NA |
| Enclosure Ingress Protection (IP) | IP 65 | 85 Rh |

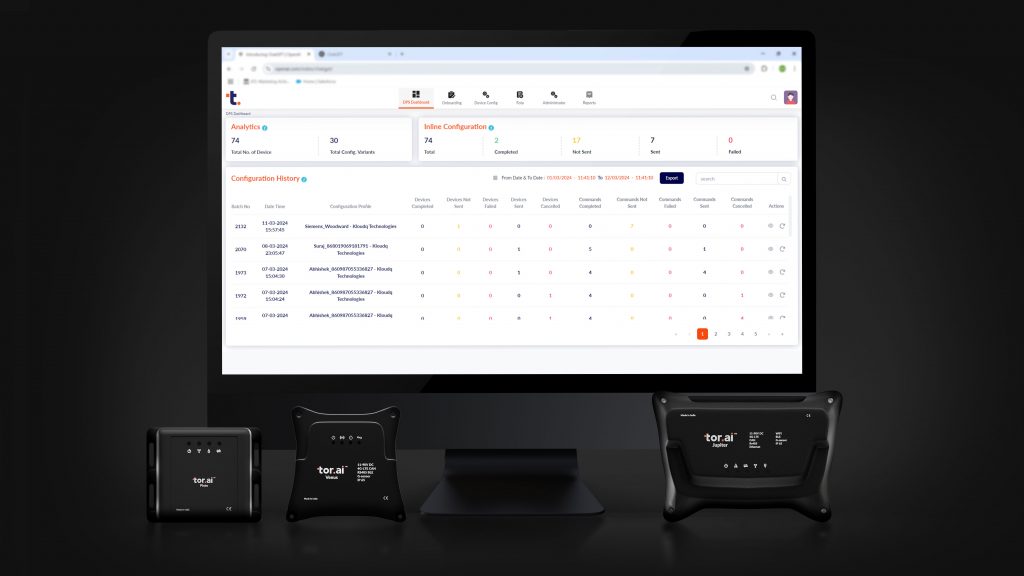

Device management and configuration tool
Configuration & FOTA: Supports over-the-air (OTA) and firmware-over-the-air (FOTA) updates for remote configuration and diagnostics.
