Sensor, Tor Product
Tor Mercury

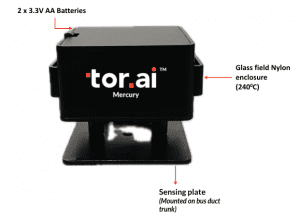

Tor Mercury is a high-temperature, long-life wireless sensor built for extreme environments. It is suitable for temperature monitoring of bus bar trunking & distribution panel systems. Its 240°C resilience, 15-year battery life, and BLE connectivity enable seamless IoT integration, faster installations, and reliable performance with minimal maintenance.
Features
High-Temperature Resilience
Operates effectively up to 240°C, suitable for extreme environments.
Long Battery Life
15-year battery life ensures minimal maintenance and long-term reliability.
Wireless Connectivity
BLE 5.2 support allows for seamless integration into IoT ecosystems.
Easy Deployment
Thermally conductive, electrically insulating adhesive-based deployment simplifies installation.
Specifications
| Temperature Measuring range | -40 to +240 *C |
| Temperature accuracy | 0.1 |
| Battery | 2700 mAH, 2 x ER14505 batteries |
| Battery Life | 15 years |
| Operating voltage | 7.2V (nominal) |
| Dimensions | 65 × 70 x 65 (LWH) |
| Communication range | BLE 5.2, advertising mode |
| Communication range | 50 meter |
| Ingress Protection | IP40 |
| Attachment method | Adhesive for horizontal busbars, Extension clip |
BLE
Wireless connectivity via BLE
240 deg Celsius
High temperature resilience
15 years
Long battery life
Simple deployment
Thermally conductive electrically insulating adhesive based deployment
Specification
| Temperature Measuring range | -40 to +240 *C |
| Temperature accuracy | 0.1 |
| Battery | 2700 mAH, 2 x ER14505 batteries |
| Battery Life | 15 years |
| Operating voltage | 7.2V (nominal) |
| Dimensions | 65 × 70 x 65 (LWH) |
| Communication range | BLE 5.2, advertising mode |
| Communication range | 50 meter |
| Ingress Protection | IP40 |
| Attachment method | Adhesive for horizontal busbars, Extension clip |
