Smart energy meter with wireless connectivity

Tor Titan 312

Titan 312 enhances power monitoring by combining precise metering with wireless connectivity for easy configuration and data access.

Available on :

Overview

Equipped with Wi-Fi and BLE along with RS485, Titan 312 enables seamless integration with IoT systems, mobile apps, and energy management platforms.

Mobile App

Access real-time data, insights, and reports directly from your smartphone. Enables remote monitoring, instant alerts, and quick decision-making anytime, anywhere through an intuitive interface

Wi-fi/BLE connectivity

Seamless wireless connectivity for fast data transfer and device configuration. Supports both Wi-Fi and Bluetooth Low Energy (BLE) for flexible deployment, easy commissioning, and reliable communication.

Digital logbook

Automatically records operational data, events, and usage history in a digital format. Eliminates manual entries, ensures data accuracy, and provides easy access to historical records for audits and analysis

Specific energy consumption

Measures energy usage relative to actual production or machine operation. By correlating energy data with runtime or output, SEC helps identify inefficiencies, optimize processes, and reduce energy costs through data-driven insights.

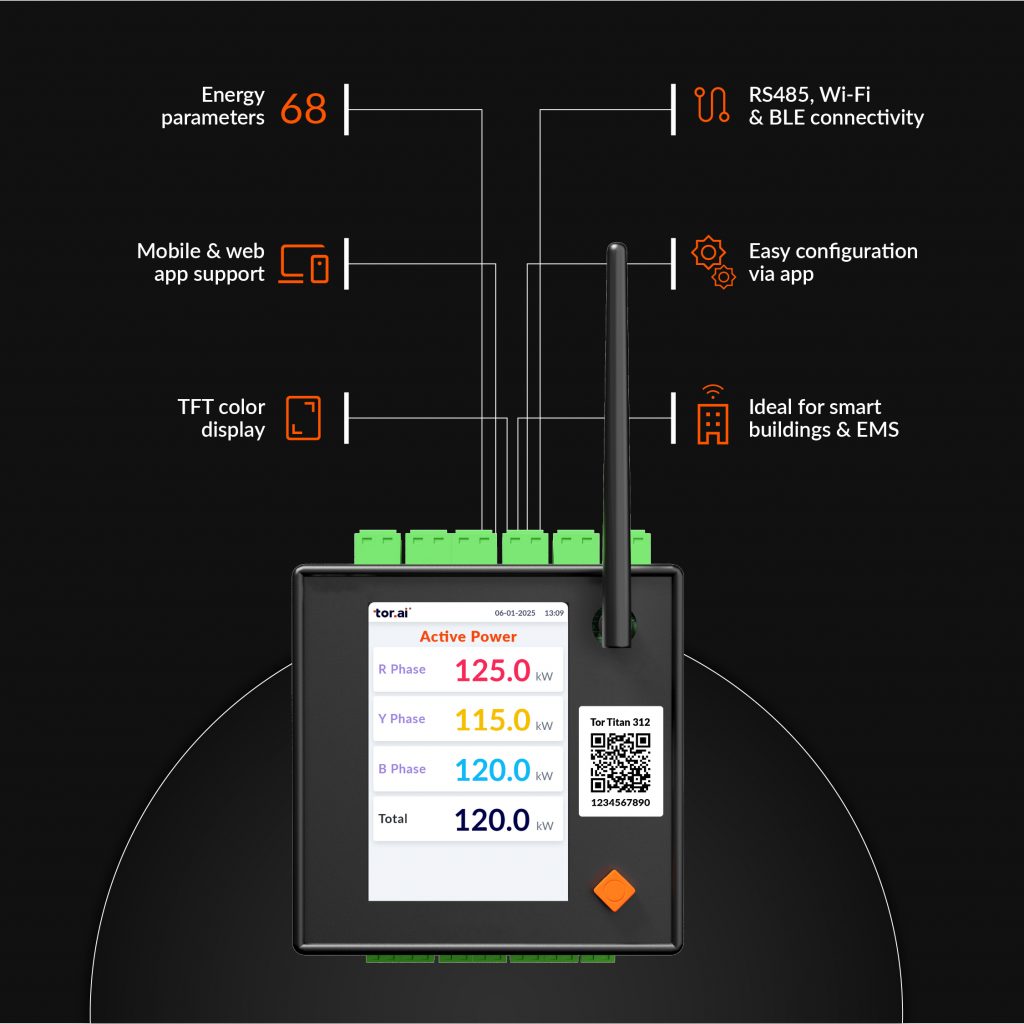

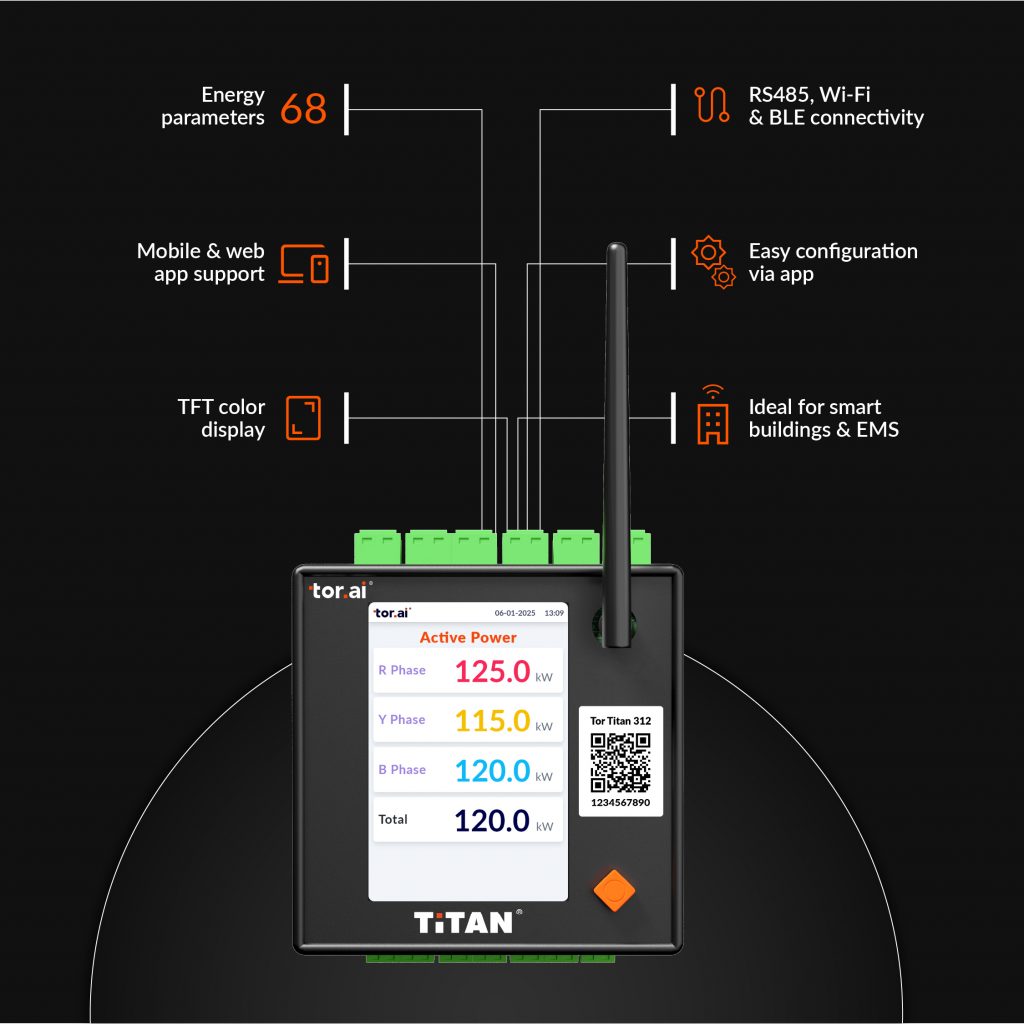

Key features

68 parameters

Tracks 68 electrical parameters including
voltages, power factors, and harmonics for
real-time monitoring

Built in Wi-Fi with native connectivity

Supports Wi-Fi, BLE, RS485 and ethernet to enable seamless IoT and cloud integration

TFT display | Compact design

Features a 3.5” TFT screen that provides real-time data visualization and historical trends

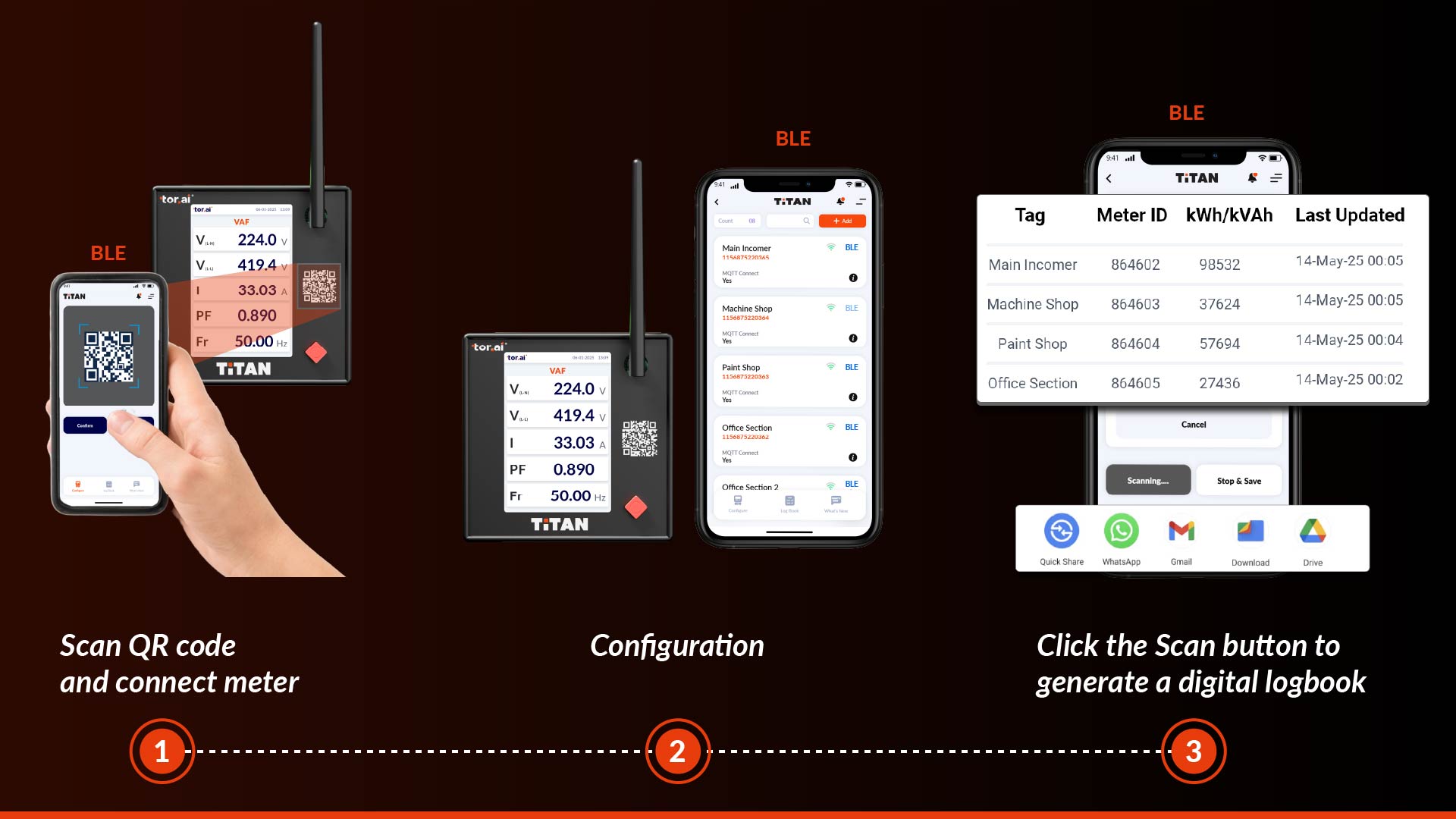

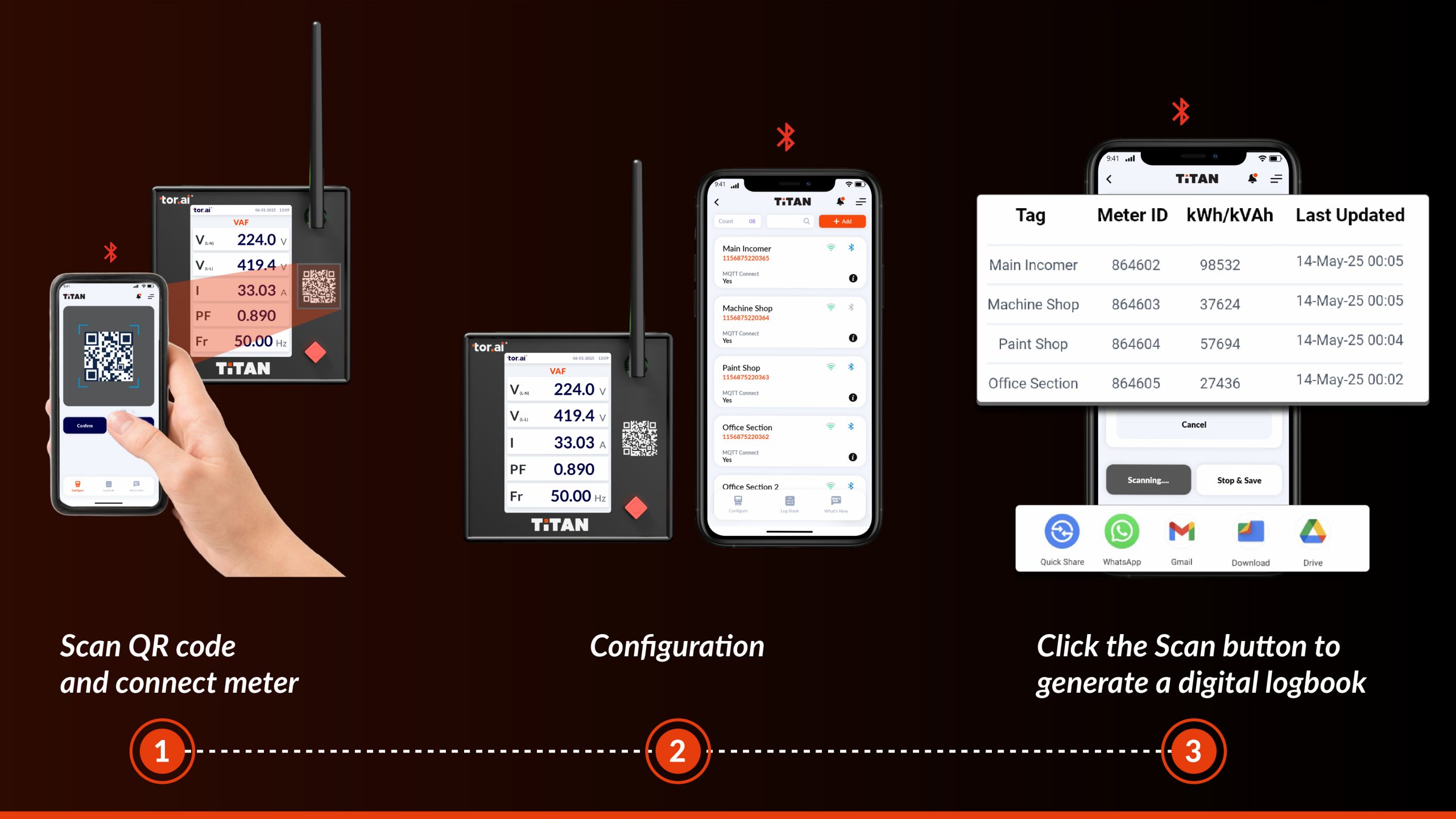

Digital logbook

Eliminate manual data logging with Tor Titan mobile app which automatically syncs the energy consumptions data

Applications

Specific energy consumption

Specific Energy Consumption (SEC) measures energy usage in relation to actual production or machine operation, offering a true picture of energy efficiency. By linking energy data with runtime, load, or process cycles, it helps pinpoint inefficiencies and performance gaps. SEC enables identification of energy-intensive machines and supports process optimization to reduce wastage. With seamless integration into Titan EMS and mobile apps, insights are presented through intuitive dashboards and reports. This empowers teams to make informed decisions that enhance productivity and operational efficiency.

Digital logbook

Titan 300 Series focuses on reliable energy measurement with essential machine status visibility. It acts as a digital logbook by recording voltage, current, energy, and operating hours. Ideal for basic monitoring and audit-ready data capture. Mobile app access enables quick local insights without complex setup.

Free EMS with analytics

Titan 300 Series comes with free EMS integration, offering centralized dashboards, trend analysis, and downloadable reports. Users gain visibility into voltage, current, power factor, THD, and energy consumption. Ideal for plants seeking analytics without additional software costs.

Specifications

Power Supply

Electrical	Titan 211	Titan 212	Titan 311	Titan 312	Titan 313
Voltage Range	50V – 500V (AC 3 Phase 4 wire, 3 phase 3 wire)	50V – 500V (AC 3 Phase 4 wire, 3 phase 3 wire)	50V – 500V	50V – 500V	50V – 500V
Aux Power Supply range	65V – 450V AC/DC supply	65V – 450V AC/DC supply	65V – 450V AC/DC supply	65V – 450V AC/DC supply	65V – 450V AC/DC supply
Current Range	0.05A – 5.0A (20% Overload)	0.05A – 5.0A (20% Overload)	0.05A – 5.0A (20% Overload)	0.05A – 5.0A (20% Overload)	0.05A – 5.0A (20% Overload)
Frequency	45Hz – 65Hz	45Hz – 65Hz	45Hz – 65Hz	45Hz – 65Hz	45Hz – 65Hz
Accuracy Class	0.5S	0.5S	0.5S	0.5S	0.5S
Short time over current	200% for 10 Sec	200% for 10 Sec	200% for 10 Sec	200% for 10 Sec	200% for 10 Sec

Compliance

Compliance	Titan 211	Titan 212	Titan 311	Titan 312	Titan 313
Standards	IS 14697, IS 13779, IEC62052-11, IEC62053-22, IEC62053-23, IEC 61010, IEC 62053-31	IS 14697, IS 13779, IEC62052-11, IEC62053-22, IEC62053-23, IEC 61010, IEC 62053-31	IS 14697, IS 13779, IEC62052-11, IEC62053-22, IEC62053-23, IEC 61010, IEC 62053-31	IS 14697, IS 13779, IEC62052-11, IEC62053-22, IEC62053-23, IEC 61010, IEC 62053-31	IS 14697, IS 13779, IEC62052-11, IEC62053-22, IEC62053-23, IEC 61010, IEC 62053-31

Mechanical

Mechanical	Titan 211	Titan 212	Titan 311	Titan 312	Titan 313
*Dimensions (WHD)*	969641 mm	969641 mm	969641 mm	969641 mm	969641 mm
Weight	0.5Kg	0.5Kg	0.5Kg	0.5Kg	0.5Kg
Enclosure	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Terminals	Plug In	Plug In	Plug In	Plug In	Plug In
Mounting	Panel Mounting, Din rail (Optional)	Panel Mounting, Din rail (Optional)	Panel Mounting, Din rail (Optional)	Panel Mounting, Din rail (Optional)	Panel Mounting, Din rail (Optional)

Environmental

Environmental	Titan 211	Titan 212	Titan 311	Titan 312	Titan 313
IP	IP54(front facia) ; IP 20 (at terminals)	IP54(front facia) ; IP 20 (at terminals)	IP54(front facia) ; IP 20 (at terminals)	IP54(front facia) ; IP 20 (at terminals)	IP54(front facia) ; IP 20 (at terminals)
Insulation	min 10 MOhm	min 10 MOhm	min 10 MOhm	min 10 MOhm	min 10 MOhm
Impluse withstand	Refer to standard		Refer to standard
Operating Temp	10 to 75 deg C	10 to 75 deg C	10 to 75 deg C	10 to 75 deg C	10 to 75 deg C
Storage Temp	0 to 85 deg C	0 to 85 deg C	0 to 85 deg C	0 to 85 deg C	0 to 85 deg C
Humidity	95% RH	95% RH	95% RH	95% RH	95% RH

Communication

Communication	Titan 211	Titan 212	Titan 311	Titan 312	Titan 313
Modbus	RS 485	RS 485	RS 485	RS 485	RS 485
Baud rate	9600 to 115200 settable	9600 to 115200 settable	9600 to 115200 settable	9600 to 115200 settable	9600 to 115200 settable
WIFI	NA	IEEE 802.11 Wireless network	NA	IEEE 802.11 Wireless network	IEEE 802.11 Wireless network
BLE (Bluetooth Low Energy)	NA	BLE 5.0	NA	BLE 5.0	BLE 5.0
CT/VT	Configurable via RS485	Configurable via RS485	Configurable via RS485	Configurable through Joystick and BLE	Configurable through Joystick and BLE

Interfaces

Interfaces	Titan 211	Titan 212	Titan 311	Titan 312	Titan 313
Analogue Input	NA	NA	NA	NA	2 Numbers (0-500 ohms and 4-20mA )
Digital Input	NA	NA	NA	NA	2
Digital Output	NA	NA	NA	NA	2
Counter Input (0-1000 Hz)	NA	NA	NA	NA	1 (based on DI)
Hour Meter	NA	NA	NA	NA	3 Numbers (1 voltage based, 1 current based, 1 DI based)

Display

Display	Titan 211	Titan 212	Titan 311	Titan 312	Titan 313
Screen	NA	NA	Colour TFT 3.5 inch (320*480)	Colour TFT 3.5 inch (320*480)	Colour TFT 3.5 inch (320*480)

Additional Features

Additional Features	Titan 211	Titan 212	Titan 311	Titan 312	Titan 313
Transient Analysis over WIFI	NA	NA	NA	NA	NA
Titan mobile app	NA	Android and iOS	NA	Android and iOS	Android and iOS
