Advanced monitoring with full connectivity

Tor Titan 411

Titan 411 is a feature-rich multifunction energy meter designed for advanced industrial and commercial power monitoring applications.

Available on :

Overview

Built for demanding environments, Titan 411 delivers complete electrical visibility with a high-resolution TFT display and multi-protocol connectivity. It supports deep energy analytics and seamless system integration.

Hour meter

Accurately tracks the total operating hours of machines and equipment. Helps schedule preventive maintenance, avoid overuse, and improve asset lifecycle management by providing reliable runtime data.

Counter

Records the number of operations, cycles, or events performed by the machine. Ideal for monitoring production counts, usage frequency, and performance trends across shifts or processes.

Mobile app

Access real-time data, insights, and reports directly from your smartphone. Enables remote monitoring, instant alerts, and quick decision-making anytime, anywhere through an intuitive interface

Wi-fi/BLE connectivity

Seamless wireless connectivity for fast data transfer and device configuration. Supports both Wi-Fi and Bluetooth Low Energy (BLE) for flexible deployment, easy commissioning, and reliable communication.

Transient analysis

Tor Titan doesn’t just monitor energy; it investigates failures. With its event-triggered transient engine, you get a high-resolution window into the exact moment an anomaly occurs, turning raw data into forensic evidence.

Specific energy consumption

Measures energy usage relative to actual production or machine operation. By correlating energy data with runtime or output, SEC helps identify inefficiencies, optimize processes, and reduce energy costs through data-driven insights.

Key features

68 parameters

Tracks 68 electrical parameters including
voltages, power factors, and harmonics for
real-time monitoring

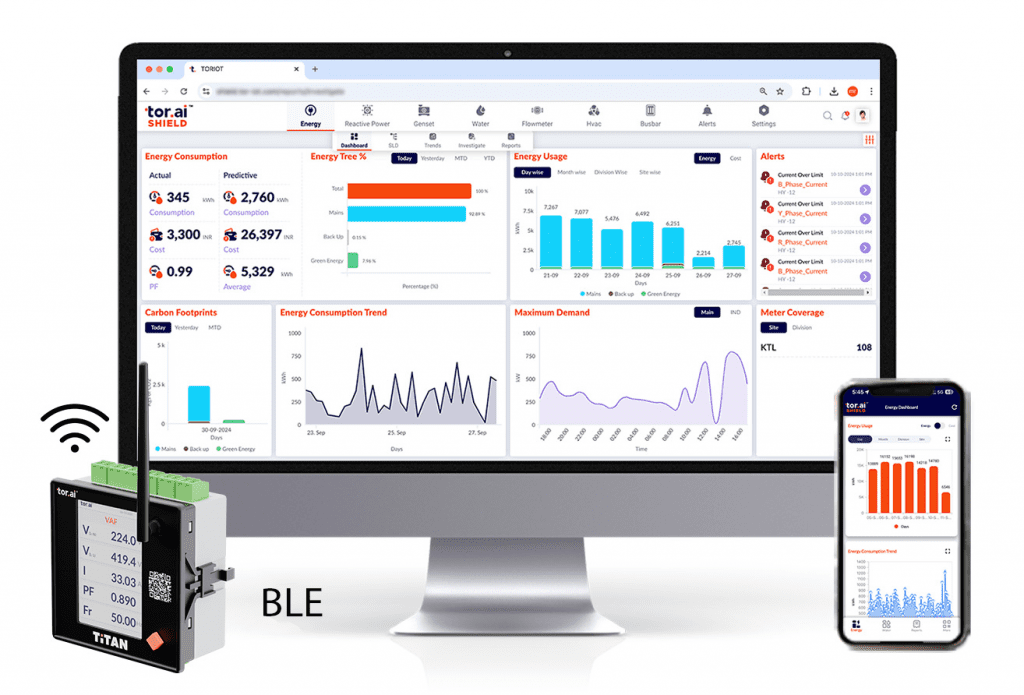

Built in Wi-Fi with native connectivity

Supports Wi-Fi, BLE, RS485 and ethernet to enable seamless IoT and cloud integration

TFT display | Compact design

Features a 3.5” TFT screen that
provides real-time data visualization
and historical trends

Digital logbook

Eliminate manual data logging
with Tor Titan mobile app which
automatically syncs the energy
consumptions data

Built in scheduling

Includes digital inputs/outputs
and RTC functionality for
schedule-based automation and
event triggers

Applications

Specific energy consumption

Specific Energy Consumption (SEC) measures energy usage in relation to actual production or machine operation, offering a true picture of energy efficiency. By linking energy data with runtime, load, or process cycles, it helps pinpoint inefficiencies and performance gaps. SEC enables identification of energy-intensive machines and supports process optimization to reduce wastage. With seamless integration into Titan EMS and mobile apps, insights are presented through intuitive dashboards and reports. This empowers teams to make informed decisions that enhance productivity and operational efficiency.

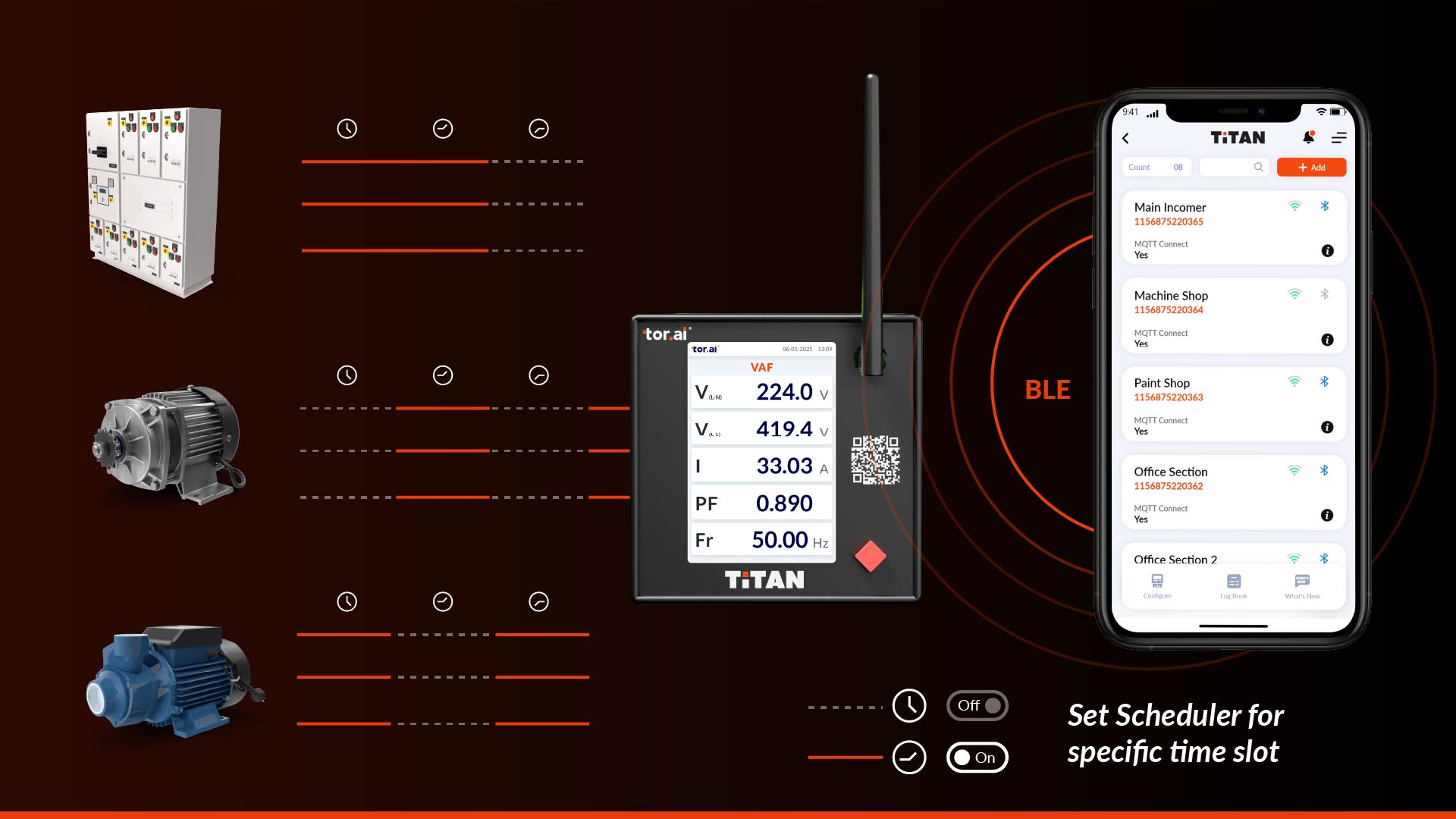

In-built scheduler

Titan 300 Series introduces scheduler functionality to automate load ON/OFF operations based on time or operating conditions. This enables energy optimization during peak and non-peak hours. Scheduling reduces manual intervention and improves operational discipline across machines.

Free EMS with analytics

Titan 300 Series comes with free EMS integration, offering centralized dashboards, trend analysis, and downloadable reports. Users gain visibility into voltage, current, power factor, THD, and energy consumption. Ideal for plants seeking analytics without additional software costs.

Specifications

Power supply

Electrical	Titan 411
Voltage range	50V – 500V
Aux power supply range	65V – 450V AC/DC supply
Current range	0.05A – 5.0A (20% Overload)
Frequency	45Hz – 65Hz
Accuracy class	0.5S
Short time over current	200% for 10 Sec

Compliance

Compliance	Titan 411
Standards	IS 14697, IS 13779, IEC62052-11, IEC62053-22, IEC62053-23, IEC 61010, IEC 62053-31

Mechanical

Mechanical	Titan 411
*Dimensions (WHD)*	969641 mm
Weight	0.5Kg
Enclosure	Polycarbonate
Terminals	Plug In
Mounting	Panel Mounting, Din rail (Optional)

Environmental

Environmental	Titan 411
IP	IP54(front facia) ; IP 20 (at terminals)
Insulation	min 10 MOhm
Impulse withstand
Operating temp	10 to 75 deg C
Storage temp	0 to 85 deg C
Humidity	95% RH

Communication

Communication	Titan 411
Modbus	RS 485
Baud rate	9600 to 115200 settable
Wi-Fi	IEEE 802.11 Wireless network
BLE (Bluetooth Low Energy)	BLE 5.0
CT/ VT	Configurable through Joystick and BLE

Interfaces

Interfaces	Titan 411
Analogue input	2 Numbers (0-500 ohms and 4-20mA )
Digital input	2
Digital output	2
Counter input (0-1000 Hz)	1 (based on DI)
Hour Meter	3 Numbers (1 voltage based, 1 current based, 1 DI based)

Display

Display	Titan 411
Screen	Colour TFT 3.5 inch (320*480)

Additional features

Additional features	Titan 411
Transient analysis over Wi-Fi	1 sample @20 msec over WIFI R,Y,B phase voltages R,Y,B phase currents Phase wise power factor Phase wise Vthd Phase wise Ithd
Titan mobile app	Android and iOS
