Tor Cygnus
Tor Cygnus is a robust Industry 4.0 connectivity and computing device, offering multi-interface connectivity, real-time data transfer, and advanced features like 4G LTE, GNSS, and BLE. Designed for rugged environments, it empowers predictive maintenance
Overview
Tor Cygnus is a compact yet powerful “BMS in a Box” that bridges the gap between industrial assets and intelligent automation. Designed with modular flexibility and industrial-grade resilience, Cygnus offers a future-ready platform that caters to the needs of diverse stakeholders across the energy, manufacturing, and automation value chain. From system integrators and IoT architects to operations leaders and enterprise IT teams, Cygnus delivers tailored value at every touchpoint of the deployment journey.
Features

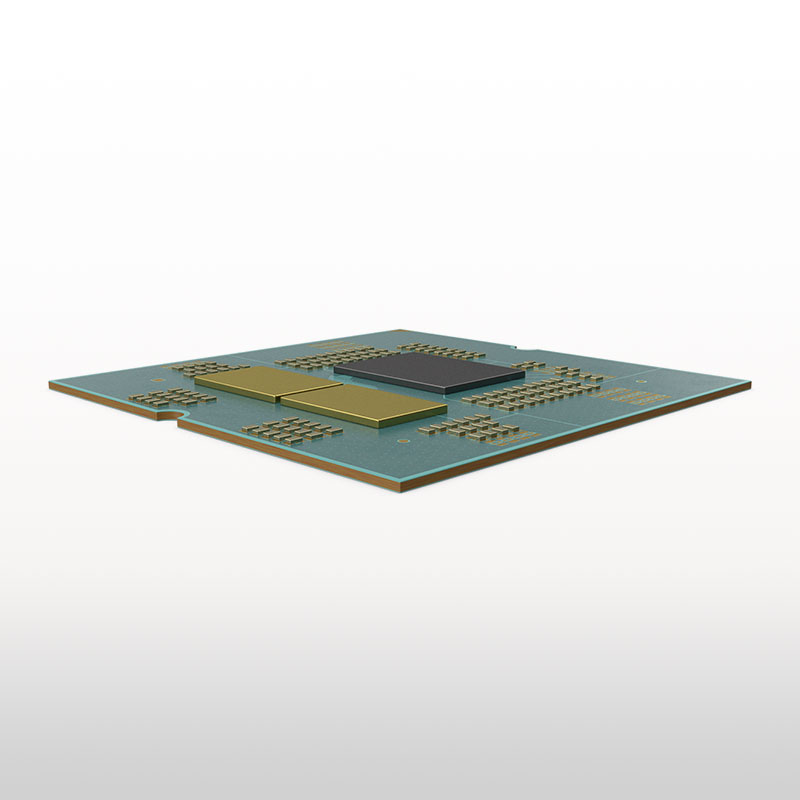

High storage capacity
16GB flash storage and 2GB RAM

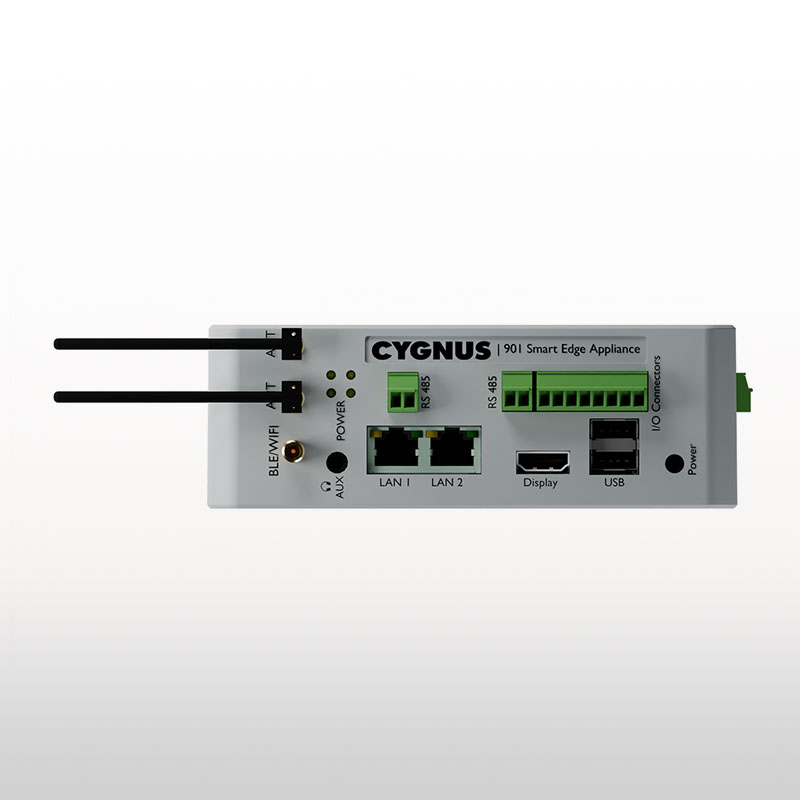

Versatile connectivity
USB 2.0, Ethernet (RJ45), RS485 & HDMI

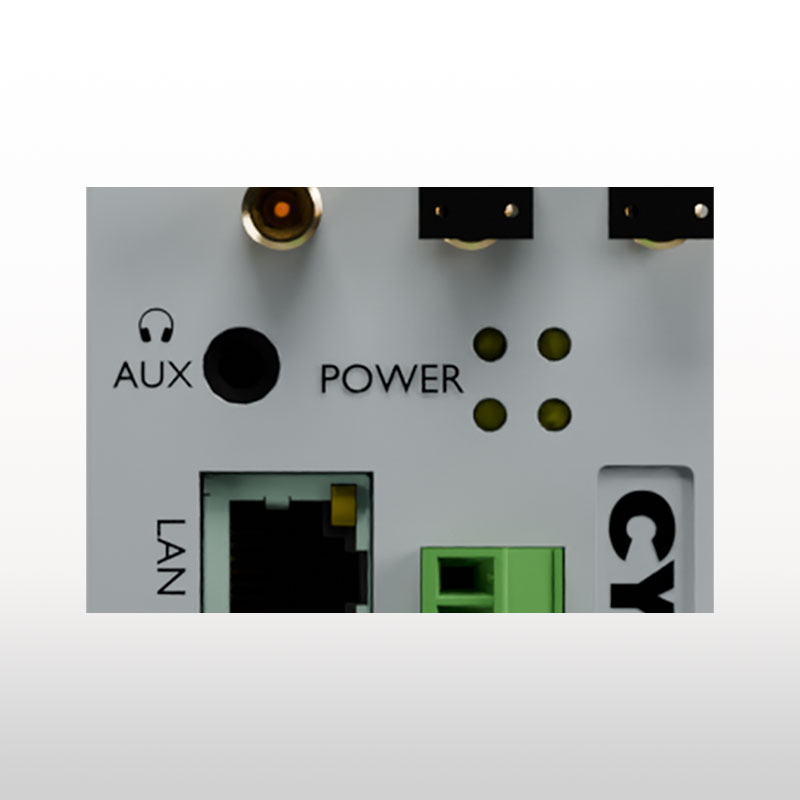

Audio support
3.5 mm AUX port

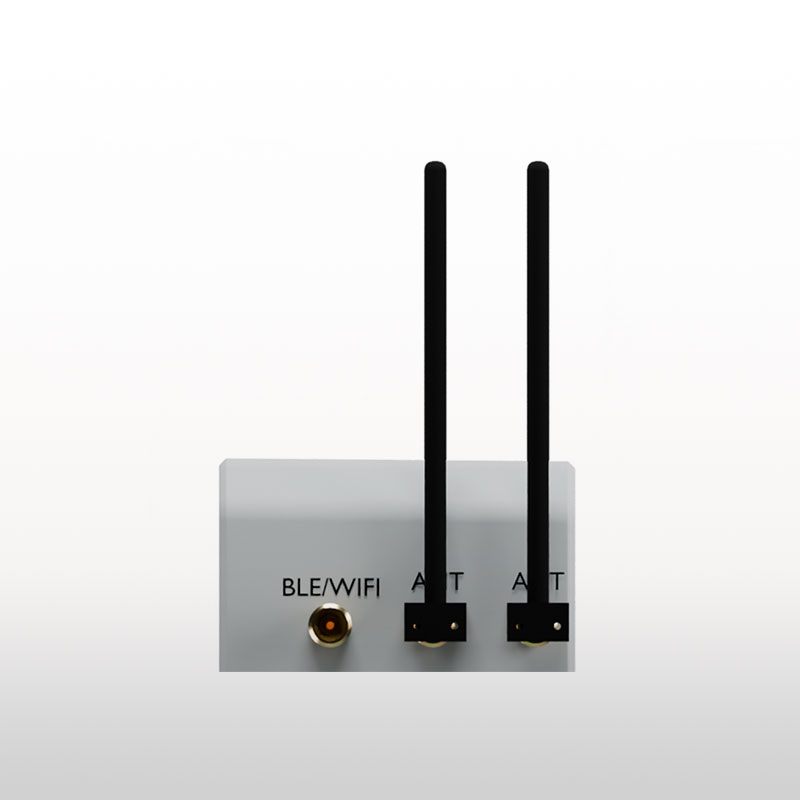

Multi-network antenna
3 external antennas for GSM, GPS, BLE, and Wi-Fi

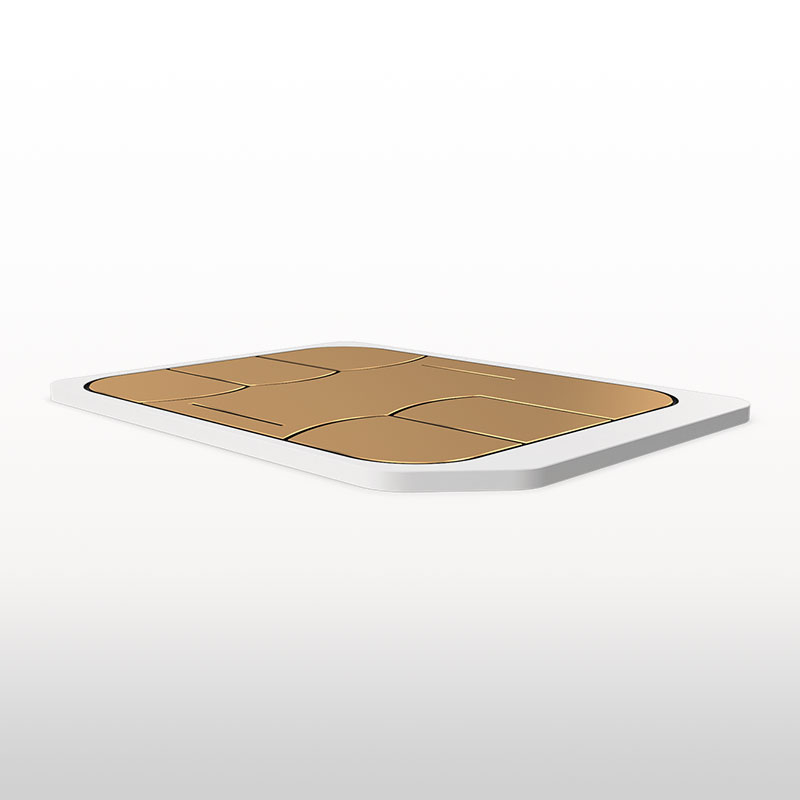

4G cellular connectivity
Nano SIM

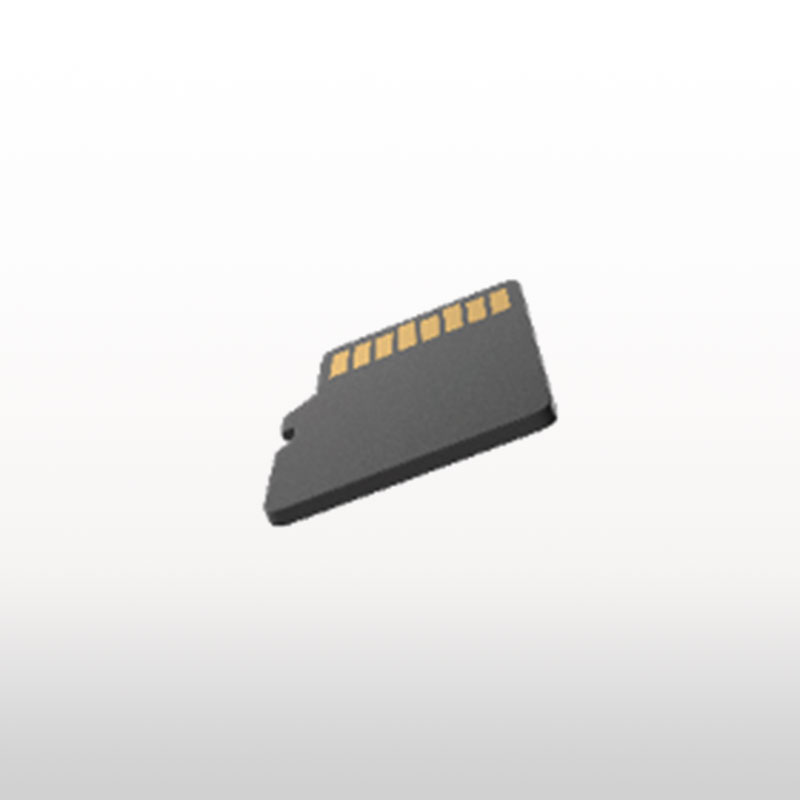

Expandable storage
SD cards support up to 128GB

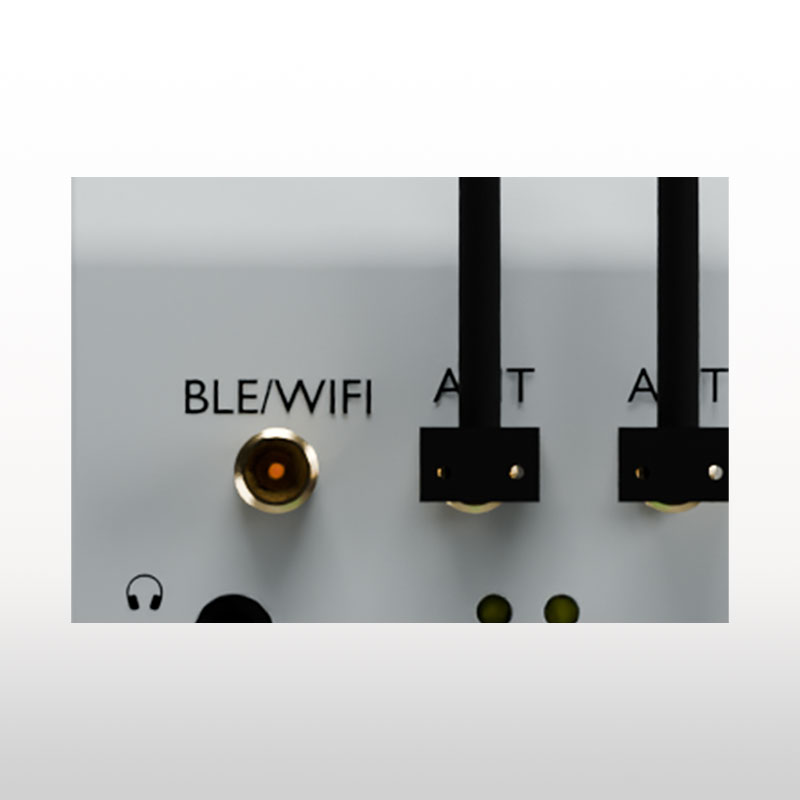

Wireless communication
Wi-Fi (IEEE 802.11 family) and Bluetooth 5.0 (BLE)

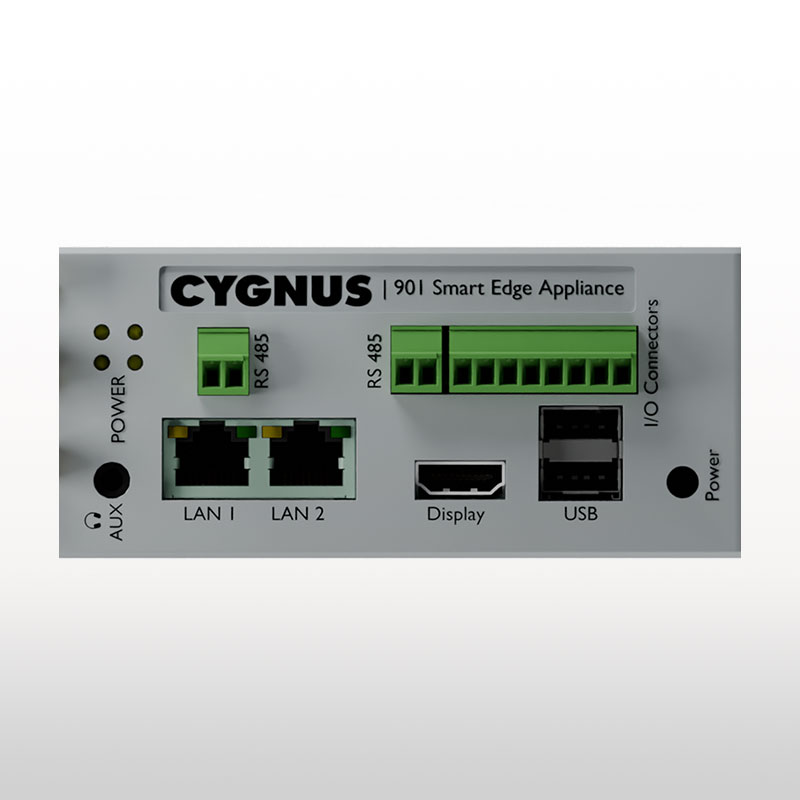

Multiple input & output interfaces
4 Digital Inputs, 1 Analog Input, and 4 Digital Outputs

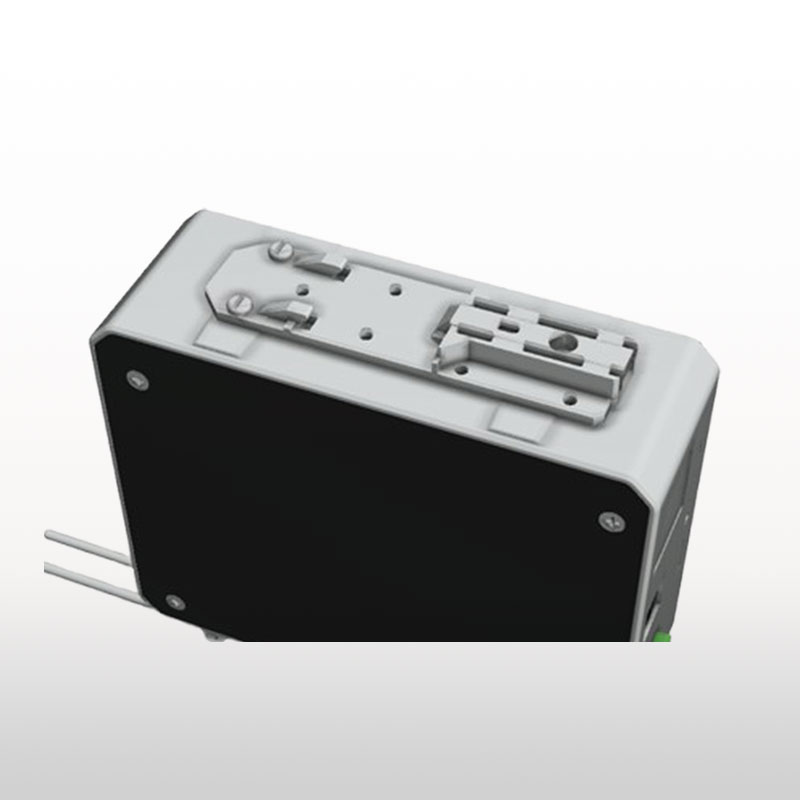

Flexible mounting options
Supports DIN rail & table top mounting

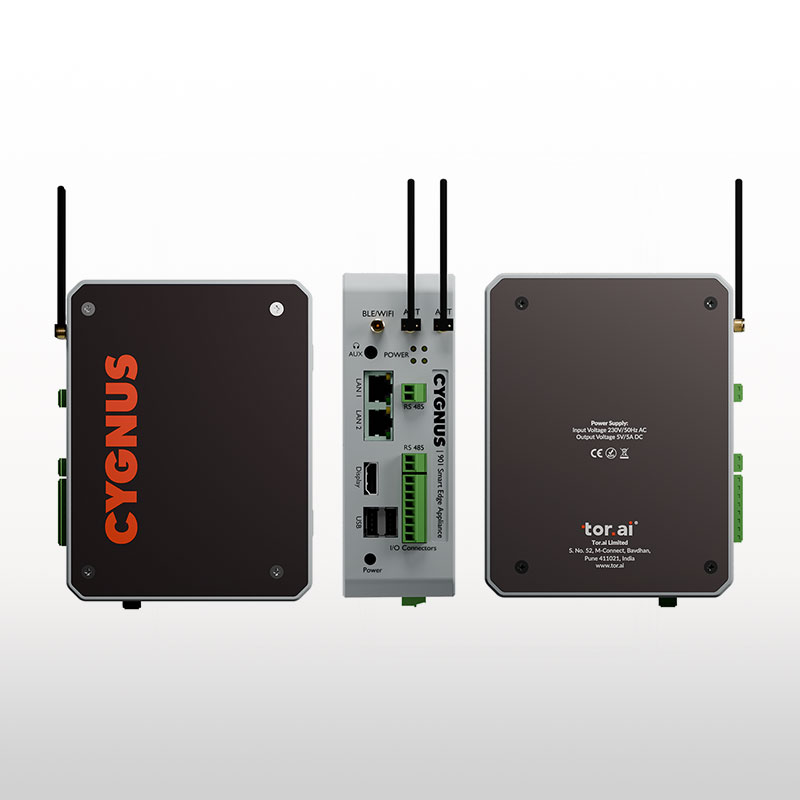

Compact design
150x115x52 mm

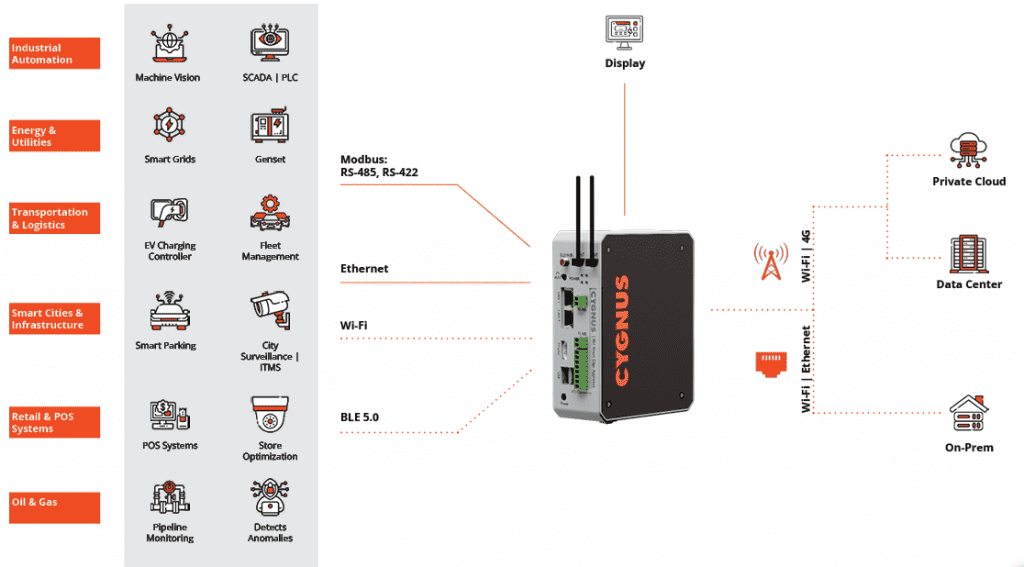

Architecture
End to end tech for continuous uninterrupted remote monitoring
Benefits
- Provides multi-connectivity options with USB 2.0, dual Ethernet ports, RS485 serial communication, and 4G cellular with external antennas for GSM, GPS, and BLE/Wi-Fi
- Includes advanced interfaces such as an HDMI port for visuals and 3.5mm AUX for audio input/output
- Supports enhanced data handling with a Nano SIM slot and SD card storage up to 128 GB, along with precise 16-bit analog input (0-36V, 0-1K resistor)
- Enables real-time location tracking and geofencing with GNSS/GPS
- Features 4 digital inputs (0-30V) and 4 digital outputs (sink type, 1A max current) for seamless control and monitoring
- Equipped with powerful LED indicators for power status and network activity (4G/GSM/GPS)
- Designed for the future with SDK and programming language support to develop custom IoT solutions effortlessly
- Deliver durable performance in harsh environments with a rugged design
Specifications
Power Supply
| Input Voltage | 230V/50Hz AC |
| Output voltage | 5V/5A DC |
SDK
| Operating System | Android 13 |
| Processor | Qualcomm® QCM2290 quad-core ARM® Cortex®[email protected] GHz 64-bit processor with built-in Adreno™ 702 GPU |
| Supported Programming Languages | C, C++, Python, Java, Node.js etc. |
| (for users to develop their own Applications) | |
| Flash Available for SDK | 16GB(Standard) / 32GB(Optional) |
| RAM Available for SDK | 2GB |
Network Protocols
| Ethernet, HTTP, MQTT, Modbus (RS485, 422), Modbus TCP/IP, Ethernet IP, BACnet, Profinet, OPCUA |
Interfaces
| USB | USB 2.0 – 2nos. |
| Ethernet | RJ45 – 2nos. |
| Serial | RS485 – 2 Unit |
| HDMI | 1 HDMI port |
| Audio | 3.5 mm AUX to support Speaker & Mic |
| Antenna | 3 Units External Antenna – (GSM, GPS, BLE/WIFI) |
| Cellular | 4G |
| SIM Slot | Nano SIM – 1 unit |
| SD CARD Slot | Support upto 128GB |
| Location Services | GNSS/GPS |
| WIFI | IEEE 802.11 family of standards |
| Bluetooth Operation | BLE 5.0 |
| Led Indicators | Power & Network 4G(GSM/GPS) |
| Digital Inputs | 4 nos : 0 to 30V |
| Analog Inputs | 1 No. (16 bit) – 0 to 36V & Resistor 0 to 1K |
| Digital Output | 4 Nos (Sink type wit 1A max current) |
| Power/ Reset Button | Available |
| RTC | Available |
Enclosure
| Mounting | Din Rail / Table Top |
| Form Factor | 115 X 52 x 150 mm (LxWxH) |
Device management and configuration tool
Configuration & FOTA: Supports over-the-air (OTA) and firmware-over-the-air (FOTA) updates for remote configuration and diagnostics.
