Gateway

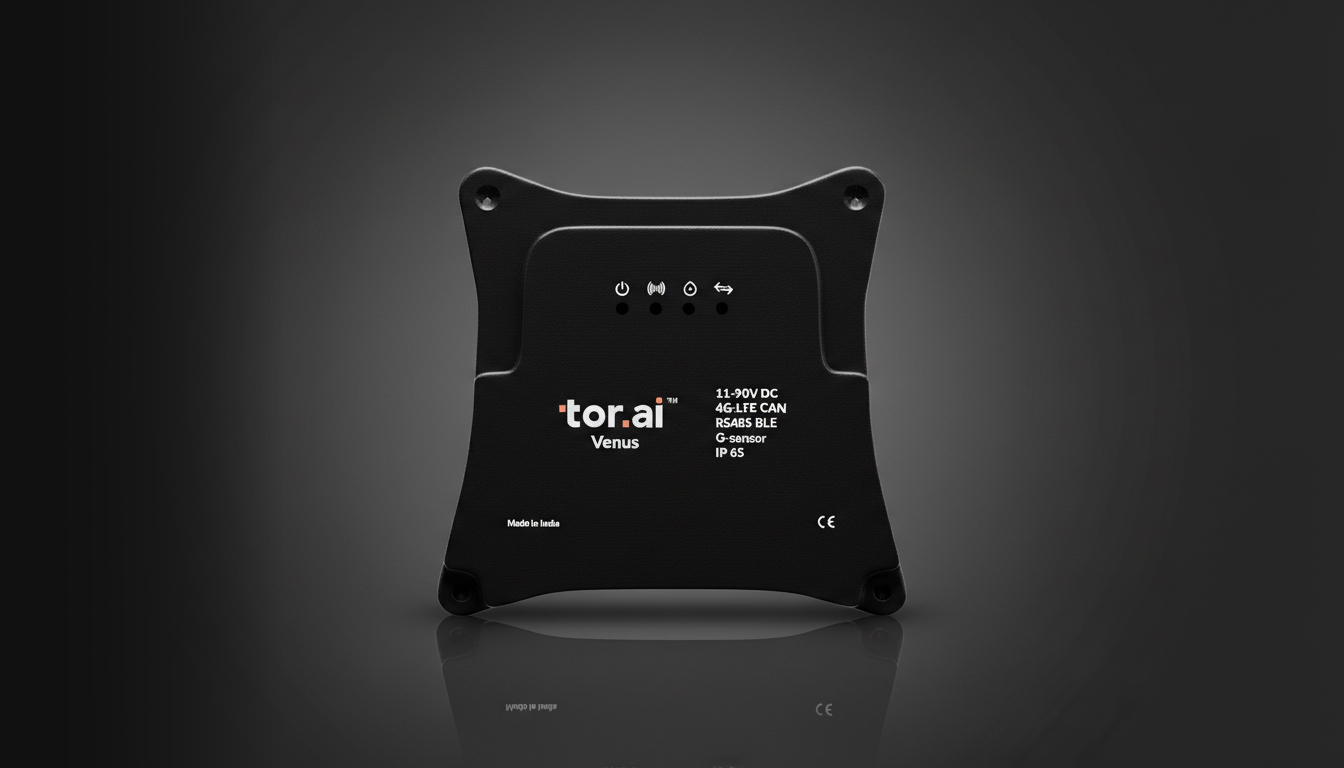

Venus 714
Venus 4G LTE gateway with RS485, CAN, digital and analog I/O, hour meter, and counter. 64 MB flash, internal cellular and GNSS antennas. 12-pin harness, no backup battery.
4G LTE
Cellular with internal GSM antenna.
RS485 + CAN
Serial and CAN interfaces.
I/O + hour meter
2 DI, 1 DO, 2 AI, 1 CI, 1 Hr Mtr.
64 MB flash
Internal antennas, onboard memory.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.
Take a closer look.
Built-in CAN interface enables direct ECU data extraction from vehicles and heavy machinery without an external adapter.
RS485 interface enables reliable wired communication with Modbus-based sensors and equipment alongside CAN in mixed-protocol installations.
2 digital inputs (0–30 V), 1 digital output, 2 analog inputs for mixed signal plants and vehicles.
Dedicated hour meter and counter input (0–1000 Hz) track equipment runtime and pulse-output devices like flow meters natively within the device.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 12–30 V DC
- Backup battery
- NA
communication
- Cellular
- 4G LTE, 2G GSM
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- Memory
- 64 MB
interfaces
- RS485
- 1
- CAN
- 1
- Digital input
- 2
- Digital output
- 1
- Analog input
- 2
- Counter input
- 1
- Hour meter
- 1
physical
- Dimensions
- 120 × 115 × 35 mm
- Harness
- 12 Pin
environmental
- IP
- IP65
- Operating temp
- −40 °C to +85 °C
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
