AHU · Chiller plant · Cooling tower

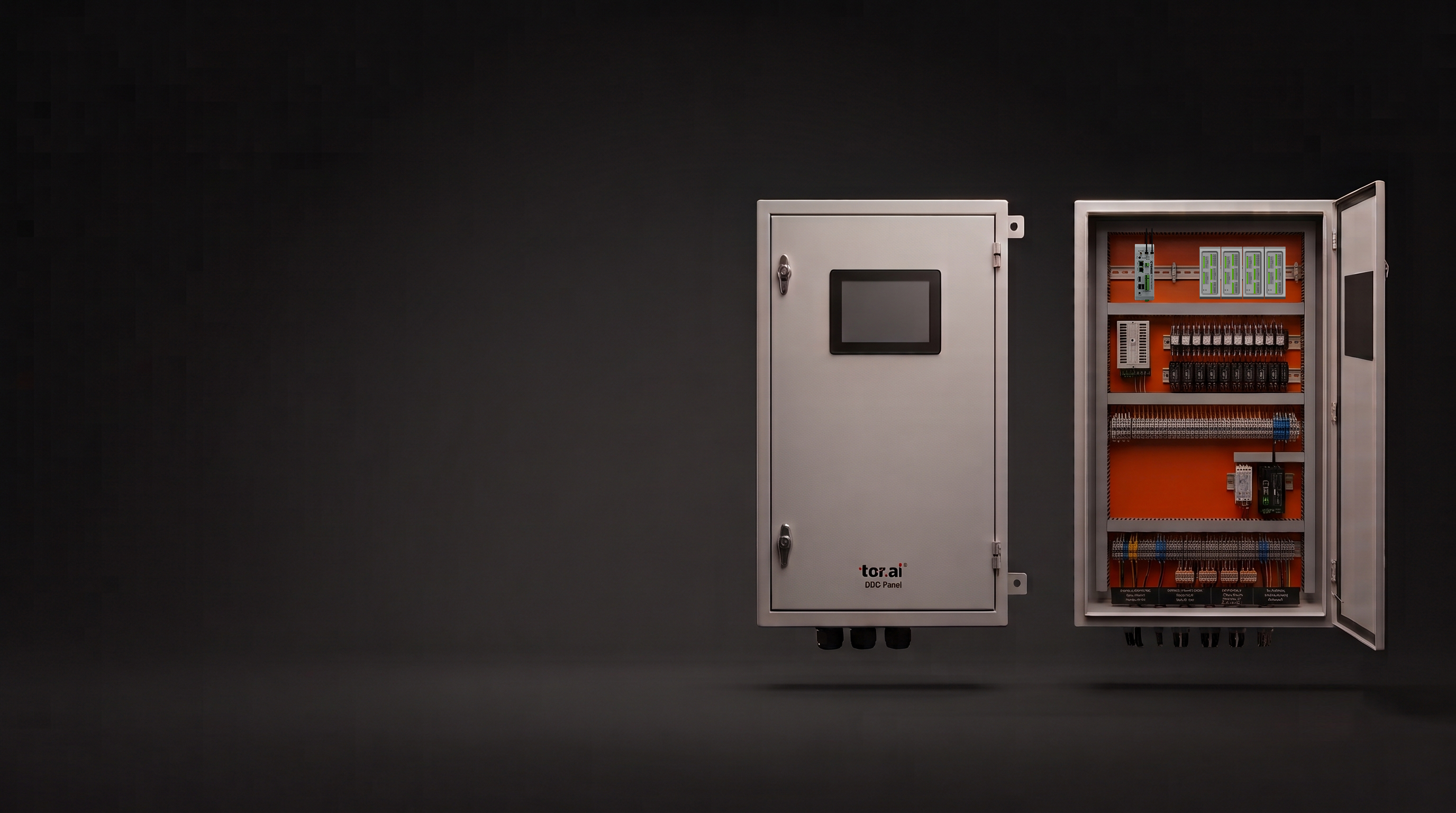

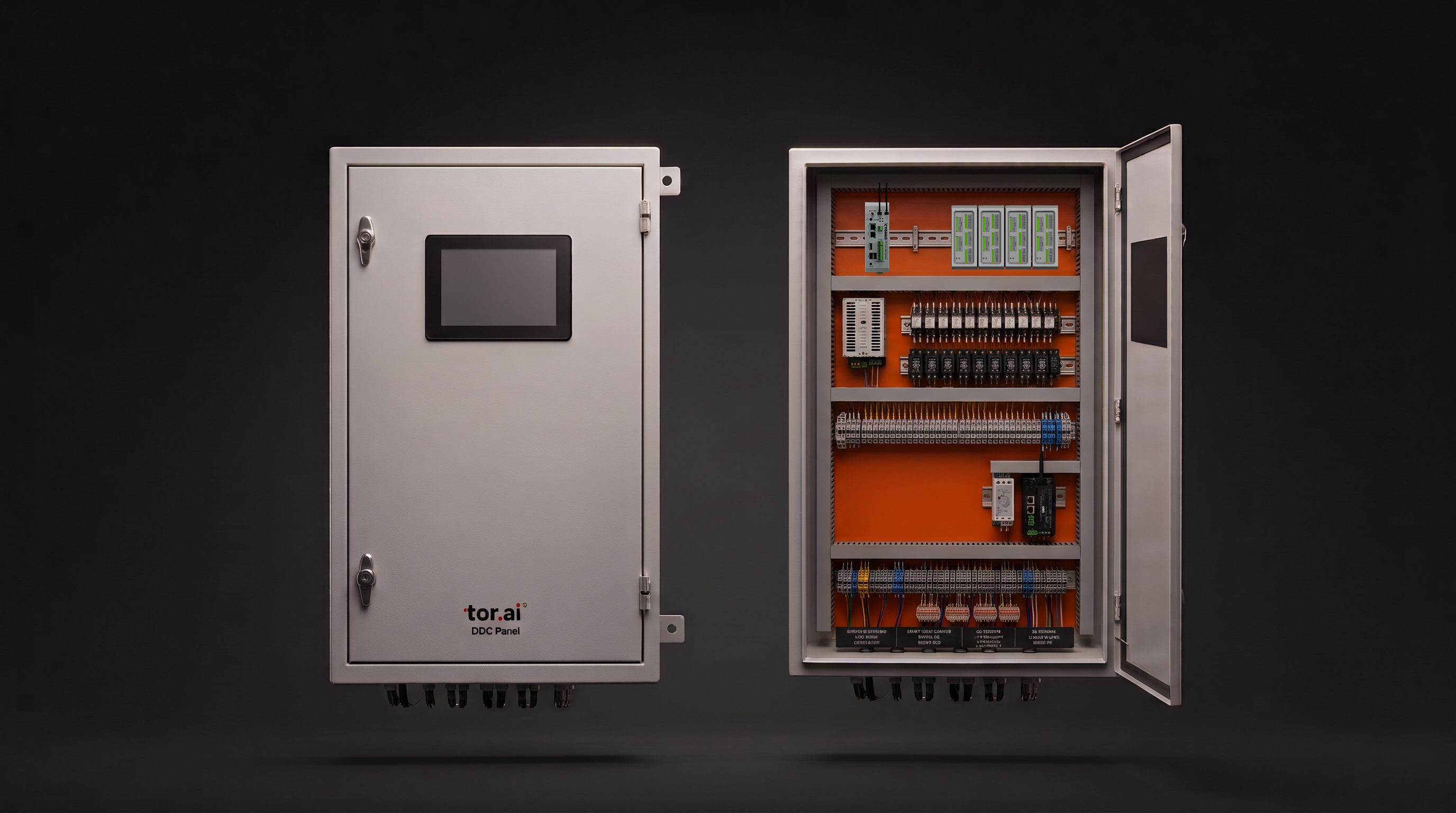

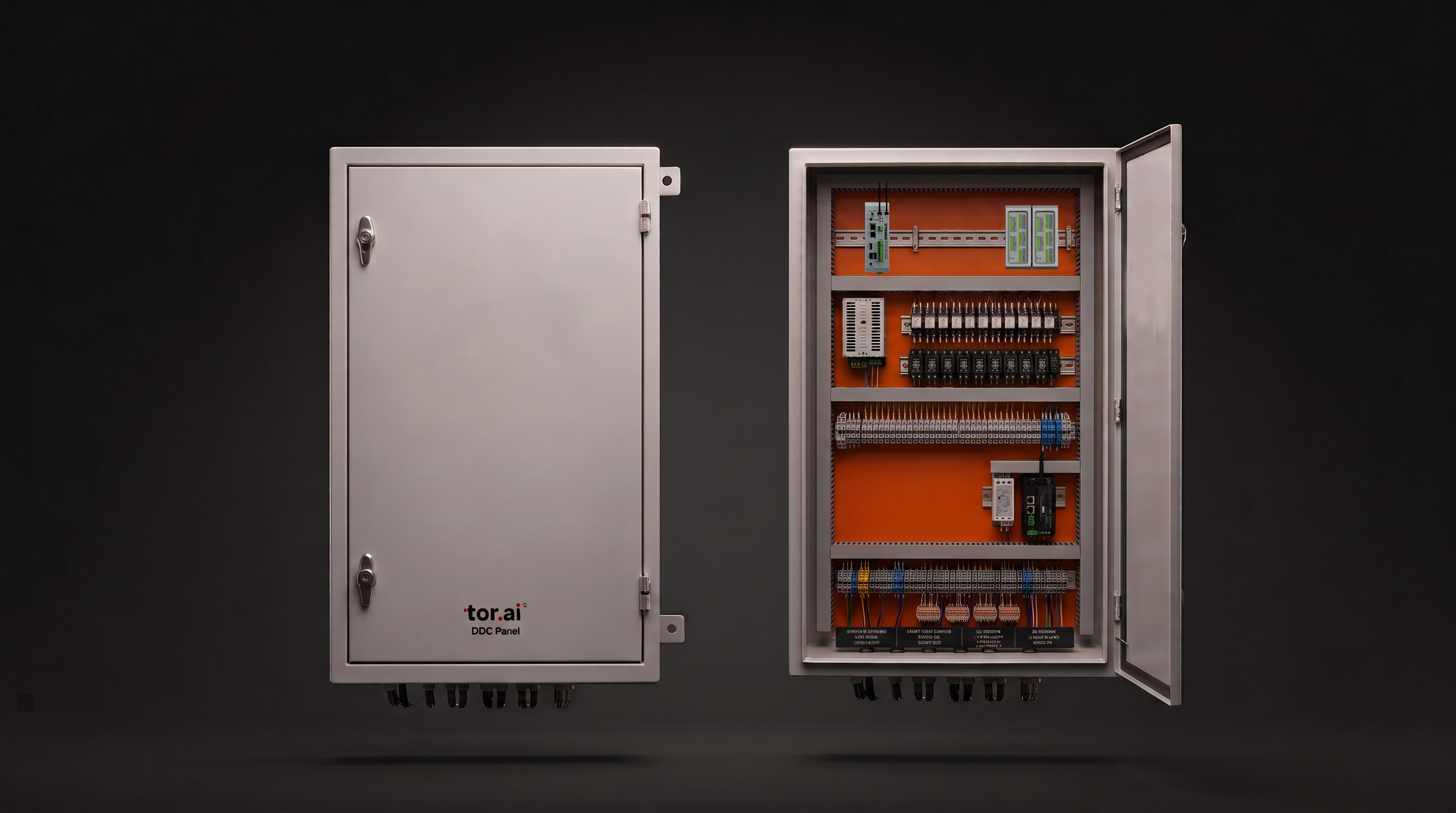

DDC Panels
Factory-built DDC panels for AHUs, chiller plants and cooling towers, wired with Tor controllers & gateways and ready to connect to Tor Shield IBMS.
Built for the asset
One panel each for AHUs, chiller plants, and cooling towers, with I/O sized to the equipment.
Talks to what you have
Modbus RS485 on every panel. BACnet on chiller plant and cooling tower. BLE on those two and on the AHU GSM variant.
Cloud or on-premise
Ethernet, Wi-Fi, or GSM to Tor Shield. On-premise needs the building LAN. The AHU GSM panel is cloud only.
Ready to commission
Ships with the Tor controller, connectivity, and the Tor Shield application for that asset.
Browse DDC panels · 4 products

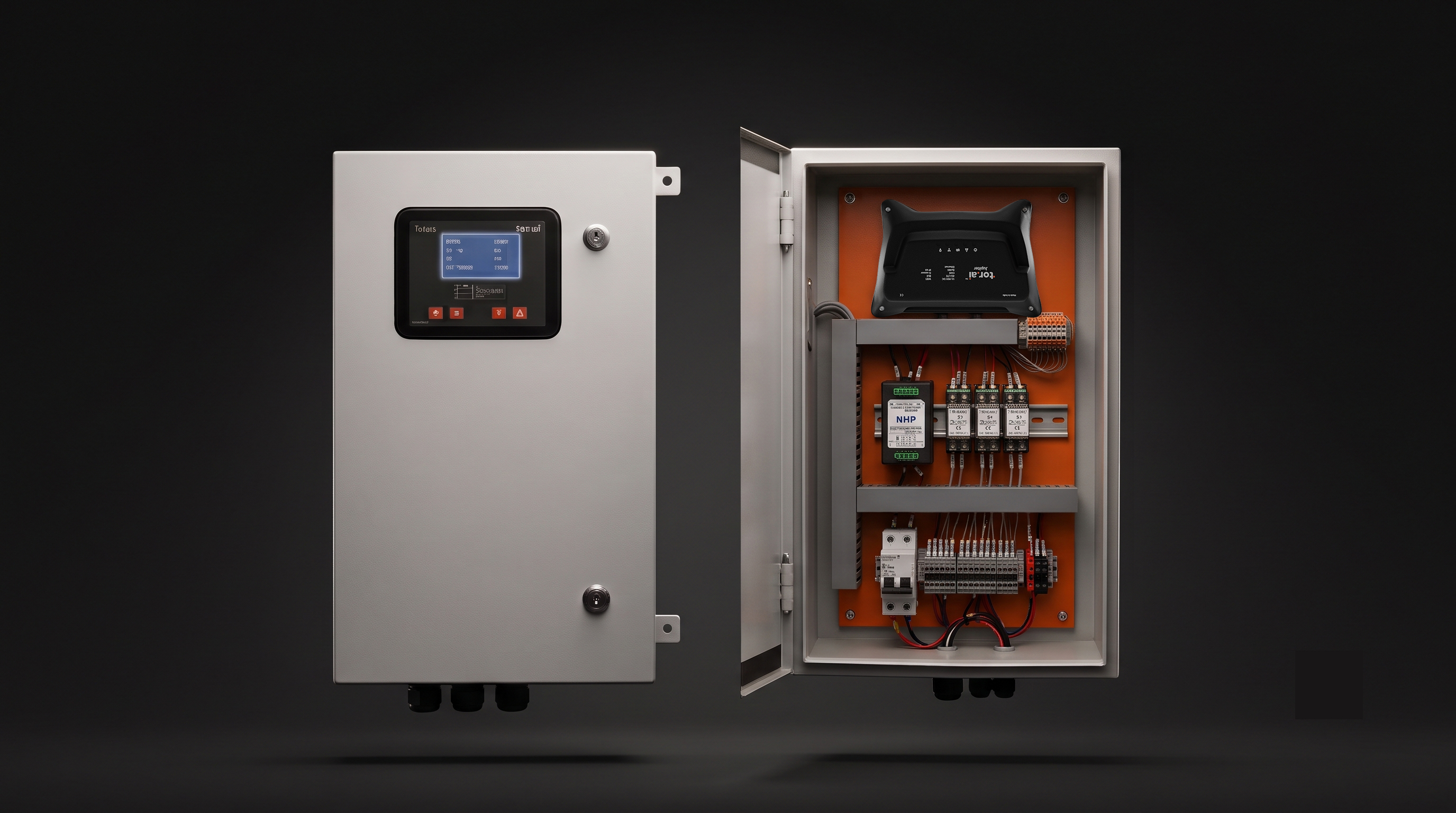

Tor AHU Panel — Ethernet
AHU panel: 18 I/O (4 DI, 8 DO, 4 AI, 2 AO), Modbus RS485, Ethernet, cloud or on-premise
Tor AHU Panel — GSM
AHU panel: 30 I/O (8 DI, 12 DO, 8 AI, 2 AO), Modbus RS485, BLE, GSM, cloud
Tor Chiller Plant Panel
Chiller plant panel: 176 I/O (124 DI, 10 relay DO, 34 AI, 8 AO), local HMI, Modbus RS485, BACnet, BLE, Ethernet / Wi-Fi / GSM, cloud or on-premise
Tor Cooling Tower Panel
Cooling tower panel: 96 I/O (64 DI, 10 relay DO, 18 AI, 4 AO), Modbus RS485, BACnet, BLE, Ethernet / Wi-Fi / GSM, cloud or on-premise
Browse DDC panels · 4 products
Tor AHU Panel — Ethernet
AHU panel: 18 I/O (4 DI, 8 DO, 4 AI, 2 AO), Modbus RS485, Ethernet, cloud or on-premise
Tor AHU Panel — GSM
AHU panel: 30 I/O (8 DI, 12 DO, 8 AI, 2 AO), Modbus RS485, BLE, GSM, cloud
Tor Chiller Plant Panel
Chiller plant panel: 176 I/O (124 DI, 10 relay DO, 34 AI, 8 AO), local HMI, Modbus RS485, BACnet, BLE, Ethernet / Wi-Fi / GSM, cloud or on-premise
Tor Cooling Tower Panel
Cooling tower panel: 96 I/O (64 DI, 10 relay DO, 18 AI, 4 AO), Modbus RS485, BACnet, BLE, Ethernet / Wi-Fi / GSM, cloud or on-premise
