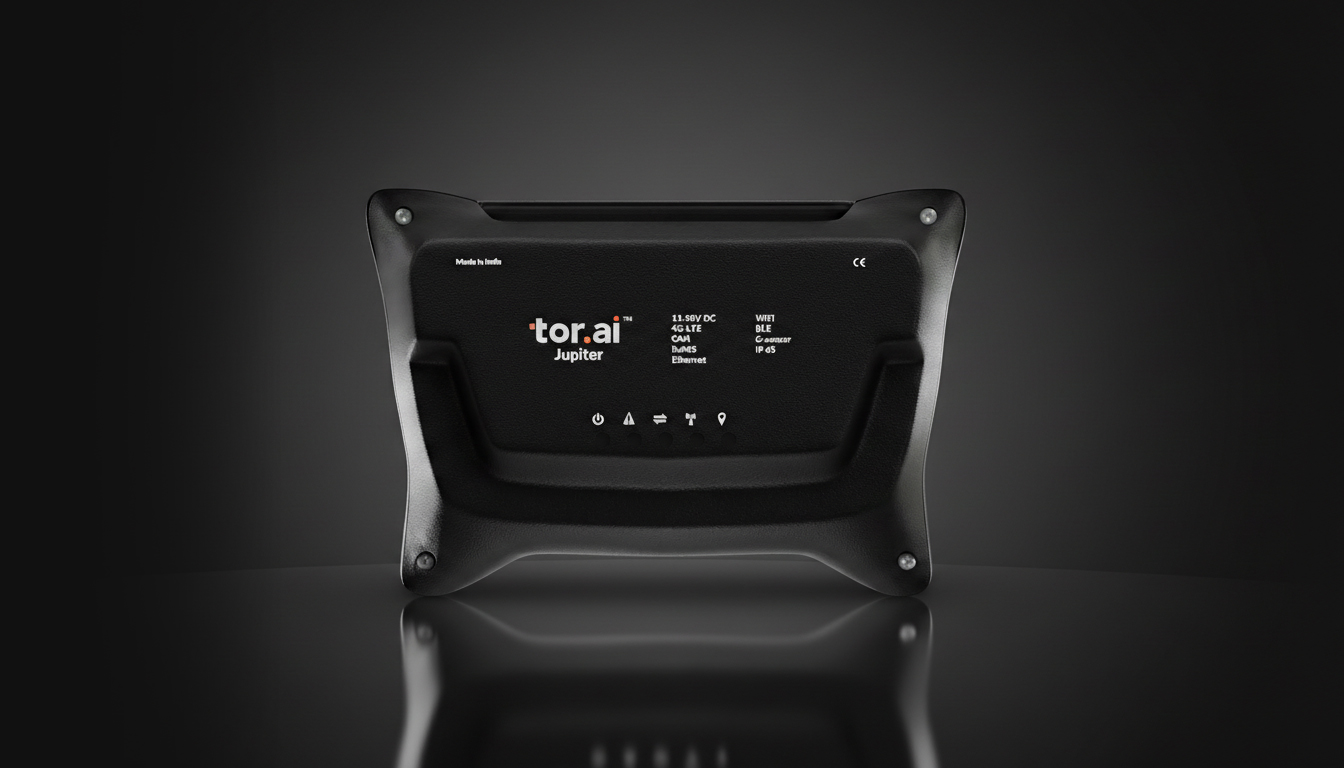

Jupiter 511
4G LTE and Wi‑Fi gateway with 8 DI, 4 DO, 8 AI (4×0–30 V + 4×4–20 mA), CAN, RS485, 2 counter inputs, 1 hour meter. Accelerometer. 800 mAH backup.
4G LTE + Wi‑Fi
Cellular and Wi‑Fi connectivity.
Rich I/O
8 DI, 4 DO, 8 AI, 2 CI, 1 Hr Mtr.
RS485 + CAN
Serial and CAN interfaces.
Accelerometer
Motion and tilt sensing.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.

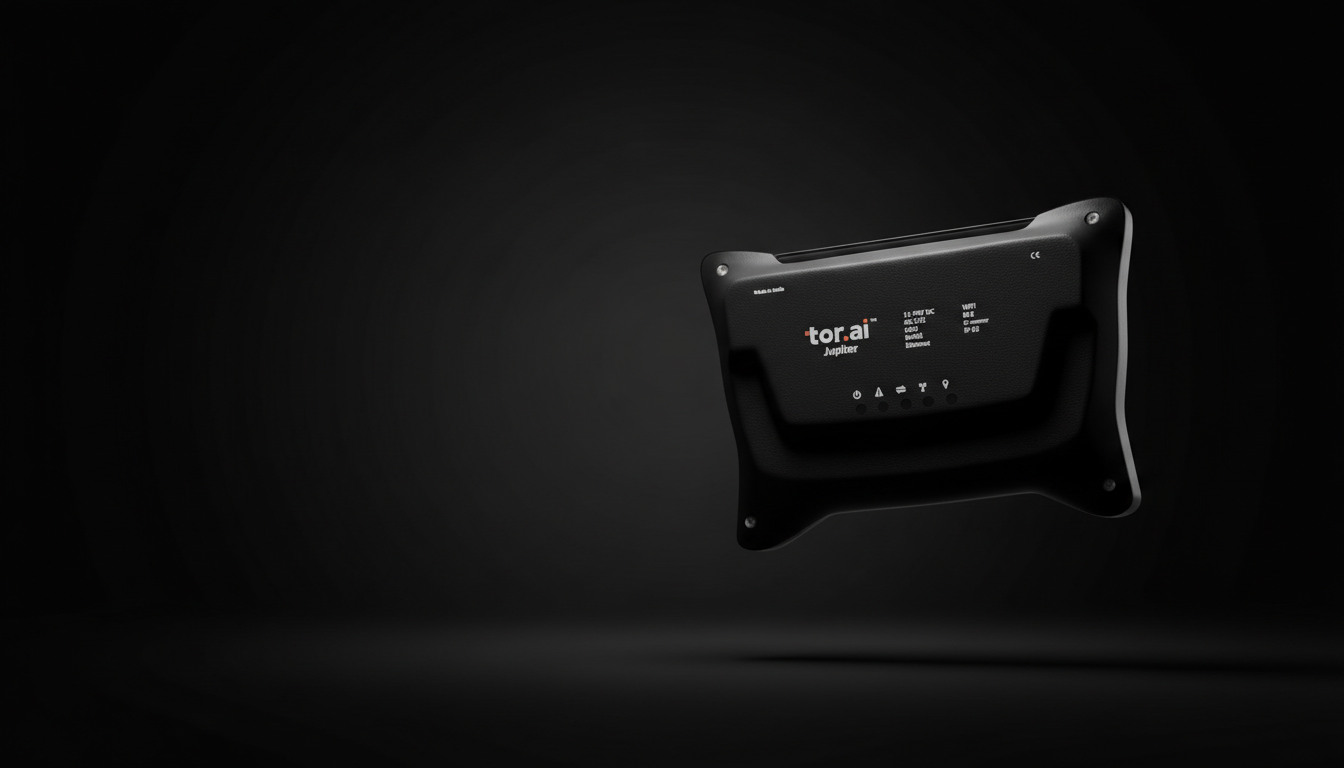

Take a closer look.
Extensive I/Os 8 digital inputs, 4 digital outputs, and 8 mixed analog inputs (4×voltage + 4×current loop) enable direct sensor and actuator interfacing without external expansion modules.
Built-in CAN interface enables direct ECU data extraction from vehicles and heavy machinery without an external adapter.
Dedicated hour meter and 2 counter inputs (0–1000 Hz) track equipment runtime and pulse-output devices like flow meters natively within the device.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.
At 170×110×42 mm with IP65 rating, fits tight installation spaces fully sealed against dust and water ingress.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 12–30 V DC
- Backup battery
- 800 mAH Li-Ion 3.7 V
communication
- Cellular
- 4G LTE, 2G GSM
- Wi‑Fi
- Yes
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- BLE
- BLE 4.2
- Memory
- 64 MB
interfaces
- RS485
- 1
- CAN
- 1
- Digital input
- 8
- Digital output
- 4
- Analog input
- 8 (4×0–30 V, 4×4–20 mA)
- Counter input
- 2
- Hour meter
- 1
- Sensors
- Accelerometer
physical
- Dimensions
- Per Jupiter series
- Harness
- —
environmental
- IP
- IP65
- Operating temp
- -40 °C to +85 °C
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
