Gateway

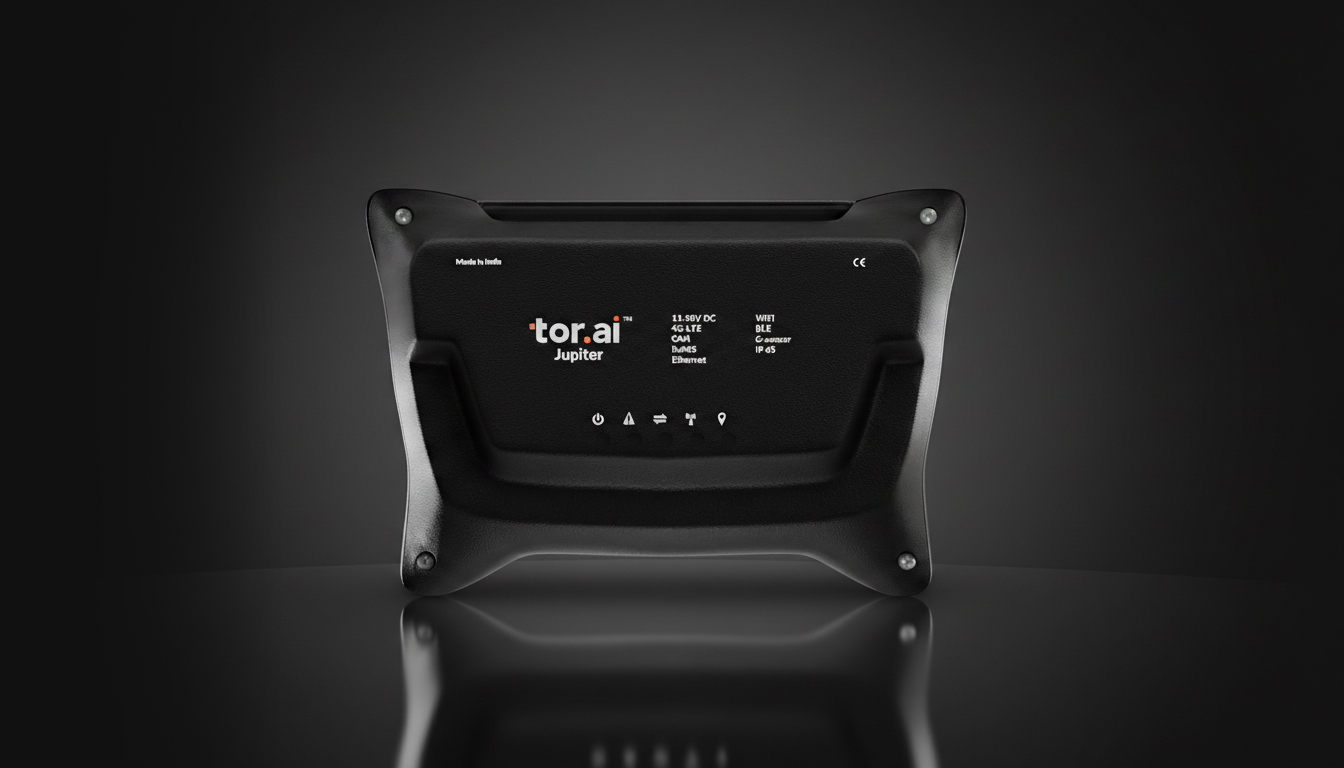

Jupiter 611 G
Jupiter 611 with Wi‑Fi. SNMP and Ethernet device with 4G LTE and CAN. 1 RS485, 1 Ethernet, 1 CAN. 800 mAH backup.
4G LTE + Wi‑Fi
Cellular and Wi‑Fi connectivity.
SNMP / Ethernet
Network management and wired LAN.
RS485 + CAN
Serial and CAN interfaces.
800 mAH backup
Li-Ion battery.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.
Take a closer look.
Dual-mode connectivity combines IEEE 802.11 WiFi with 4G LTE and 2G GSM fallback keeping the device online whether on a local network or in the field on cellular.
Built-in CAN interface enables direct ECU data extraction from vehicles and heavy machinery without an external adapter.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons, expanding monitoring capability without additional wiring.
Built-in Ethernet port enables high-speed wired network integration for fixed installations where cellular is unnecessary or unavailable.
At 170×110×42 mm with IP65 rating, fits tight installation spaces fully sealed against dust and water ingress.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 12–30 V DC
- Backup battery
- 800 mAH Li-Ion 3.7 V
communication
- Cellular
- 4G LTE, 2G GSM
- Wi‑Fi
- Yes
- Ethernet
- 1
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- SNMP
- Yes
- Memory
- 4 MB
interfaces
- RS485
- 1
- Ethernet
- 1
- CAN
- 1
physical
- Dimensions
- Per Jupiter series
- Harness
- —
environmental
- IP
- IP65
- Operating temp
- -40 °C to +85 °C
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
