Tor AHU Panel

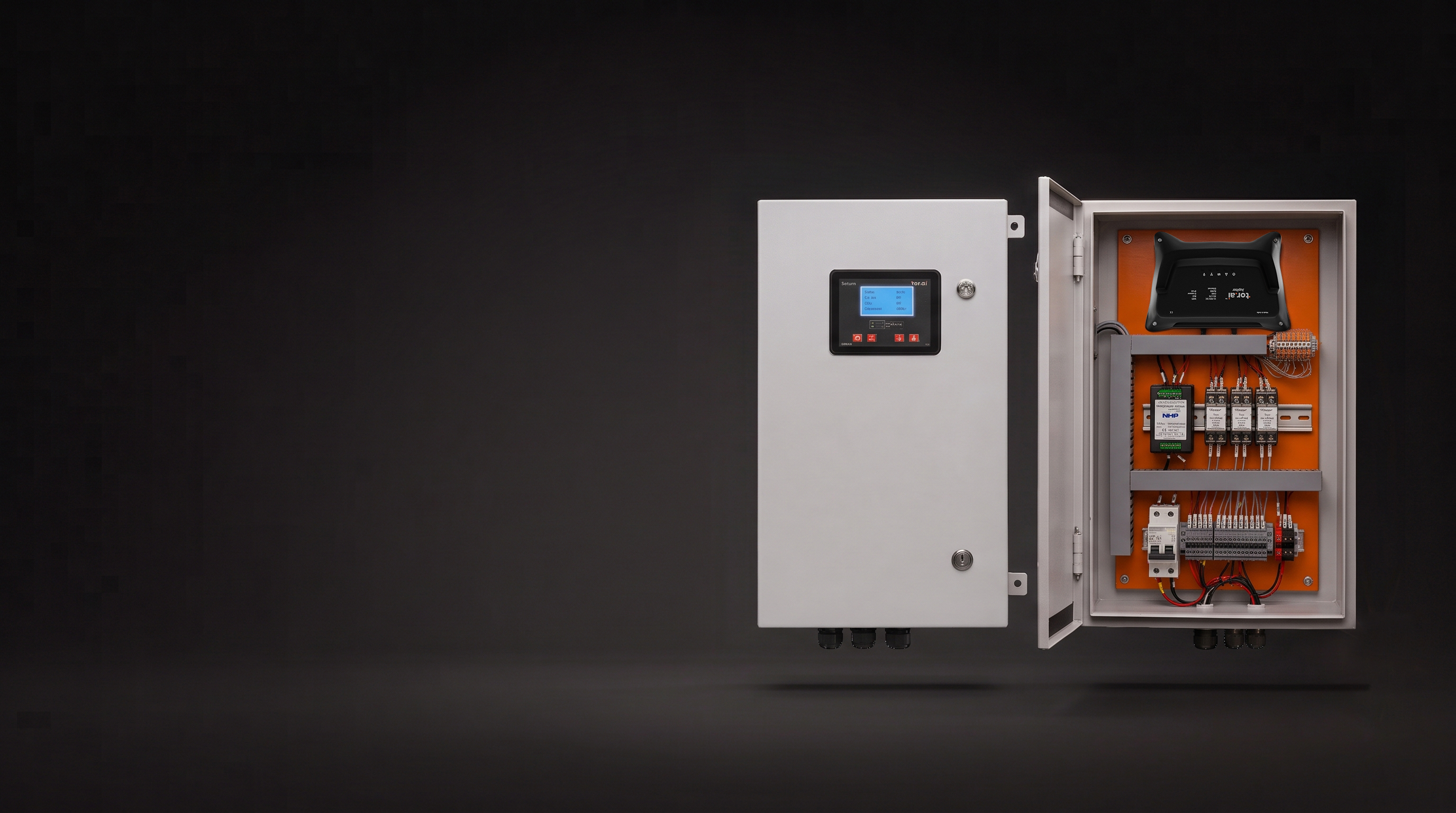

A DDC panel for controlling and monitoring Air Handling Unit. It controls the chilled water valve and fan, monitors every trip and filter alarm, and reports to Tor Shield.
What it runs
- Supply or return air temperature control by modulating the chilled water valve
- Fan speed through the VFD, on a 0–10 V signal
- Start/stop on schedule or on command from Tor Shield
- Fan status, trip and auto/manual feedback
- Filter and fault alarms pushed to the Tor Shield dashboard and phone
What's inside
- Tor Saturn 521 controller
- Tor Jupiter gateway (812 or 511 GSM)
- 12 V SMPS
- 2-pole 16 A MCB
- 230 V AC and 12 V DC interposing relays on 8-pin bases
- 12-pin plug-in field connector
Choose your variant
| Gateway | Jupiter 812 |
|---|---|
| Total I/O | 18 (4 DI, 8 DO, 4 AI, 2 AO) |
| Field protocol | Modbus RS485 |
| Backhaul | Ethernet (building LAN) |
| Deployment | Cloud or on-premise |
| Best for | Buildings with a BMS network to every plant room |
Typical point map
| Signal | Count | Typical use |
|---|---|---|
| Analog outputs (0–10 V) | 2 | Chilled water valve, VFD speed |
| Analog inputs | 4 (3 resistive, 1 voltage) | Supply air temp, return air temp, chilled water temp, duct pressure |
| Digital inputs | 4 | Fan status, VFD trip, filter alarm, auto/manual |
| Digital outputs | 8 | Fan start/stop, alarms, auxiliary loads |
The GSM variant adds the Jupiter 511's 4 DI, 4 DO and 4 AI for extra sensors or a second fan.
