Gateway

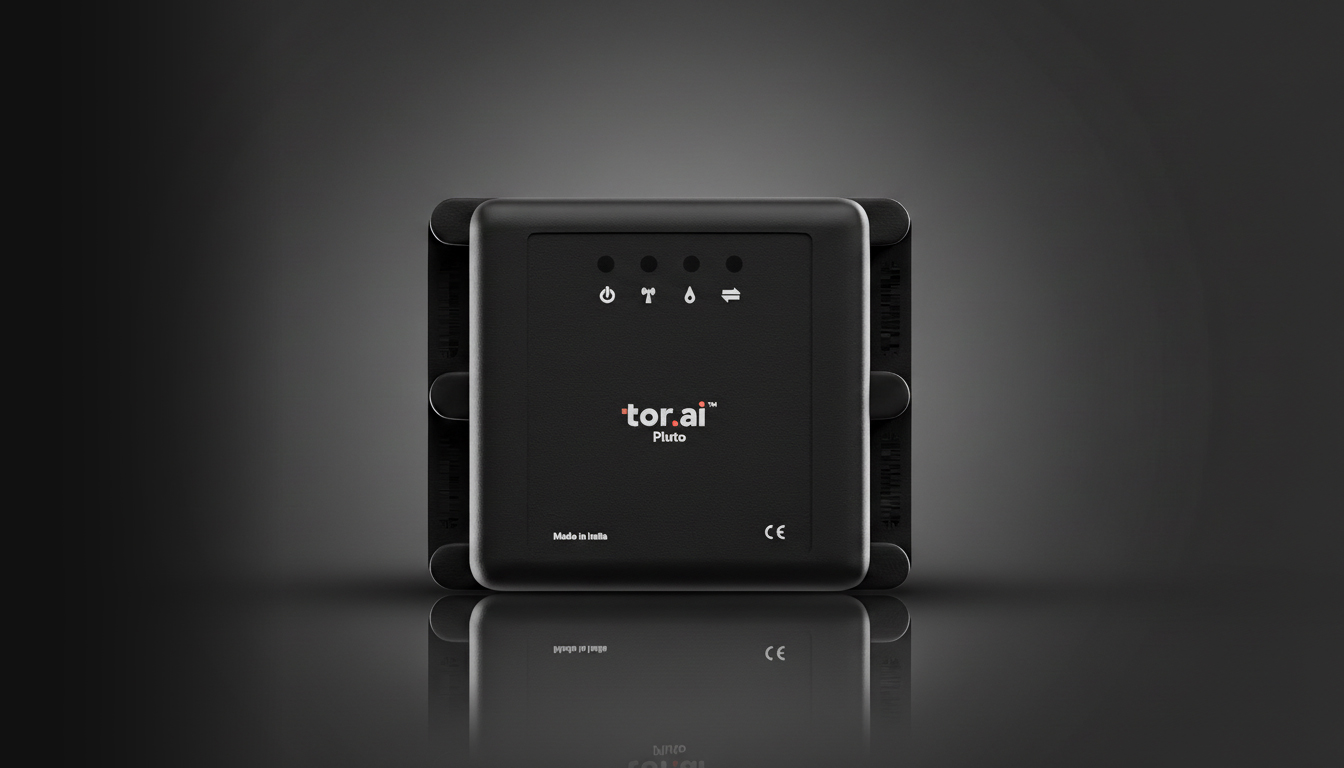

Pluto 714
4G LTE gateway with BLE, hour meter, counter input, and digital/analog I/O. 8-pin harness for industrial telemetry and equipment monitoring.
4G LTE
Cellular connectivity for remote sites.
Hour meter & counter
Pulse and runtime inputs.
Digital & analog I/O
Flexible industrial I/O.
BLE
Wireless configuration.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.
Take a closer look.
2 digital inputs (0–30V), 1 digital output, and 2 analog inputs allow direct connection to sensors and actuators within a single compact unit.
Dedicated hour meter and counter input (0–1000 Hz) track equipment runtime and pulse-output devices like flow meters natively within the device.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.
At 104×91×36 mm with IP65 rating and -40 to +85°C operating range, fits tight installation spaces in harsh outdoor and industrial environments.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 12–30 V DC
- Backup battery
- NA
communication
- Cellular
- 4G LTE, 2G GSM
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- BLE
- BLE 4.2
interfaces
- Digital I/O
- Yes
- Analog I/O
- Yes
- Hour meter
- Yes
- Counter input
- Yes
physical
- Dimensions
- 104 × 91 × 36 mm
- Harness
- 8 Pin
environmental
- IP
- IP65
- Operating temp
- -40 °C to +85 °C
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
