Gateway

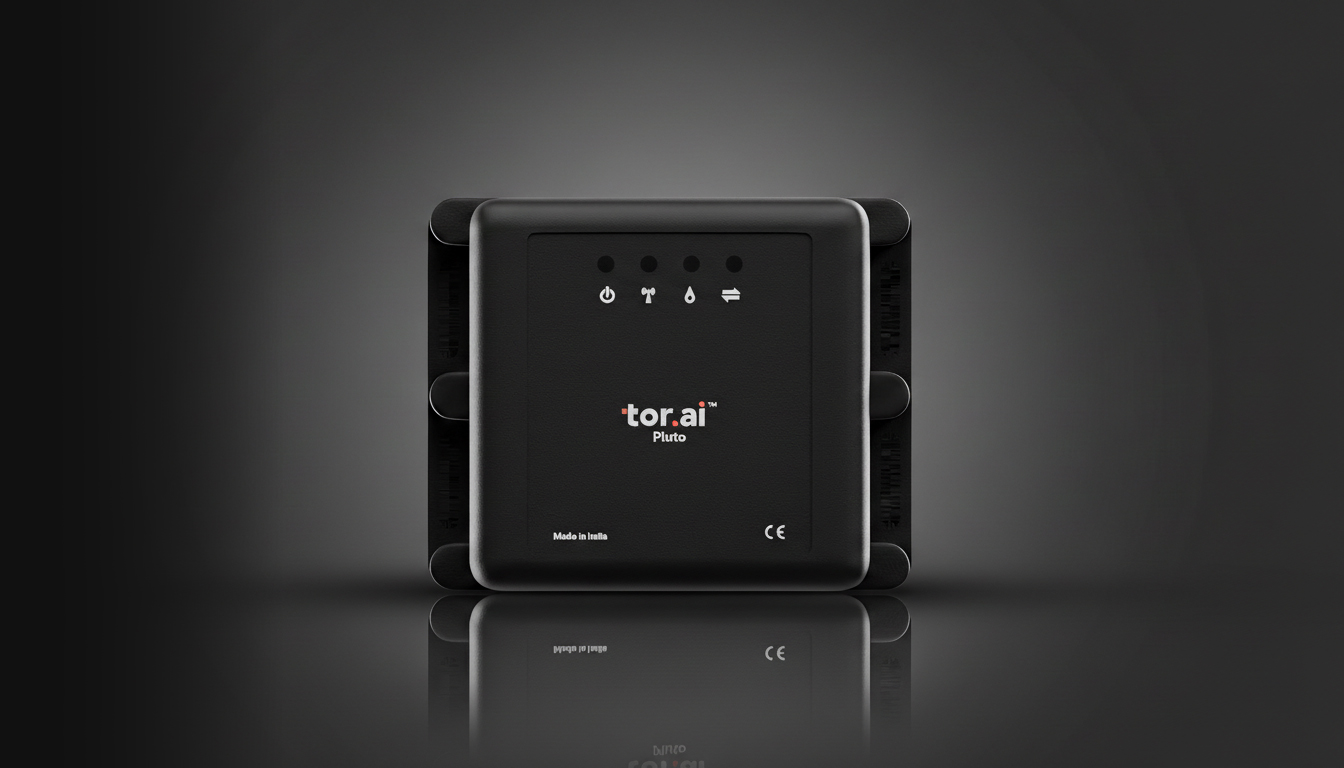

Pluto 412
4G LTE gateway with RS232, CAN, 4 DI, 1 DO, 2 AI, and accelerometer. 16-pin harness and 800 mAH backup. For industrial I/O and telemetry.
4G LTE
Cellular with external antenna.
RS232 + CAN
Serial and CAN interfaces.
I/O
4 DI, 1 DO, 2 AI (0–30 V).
Accelerometer
Motion and tilt sensing.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.

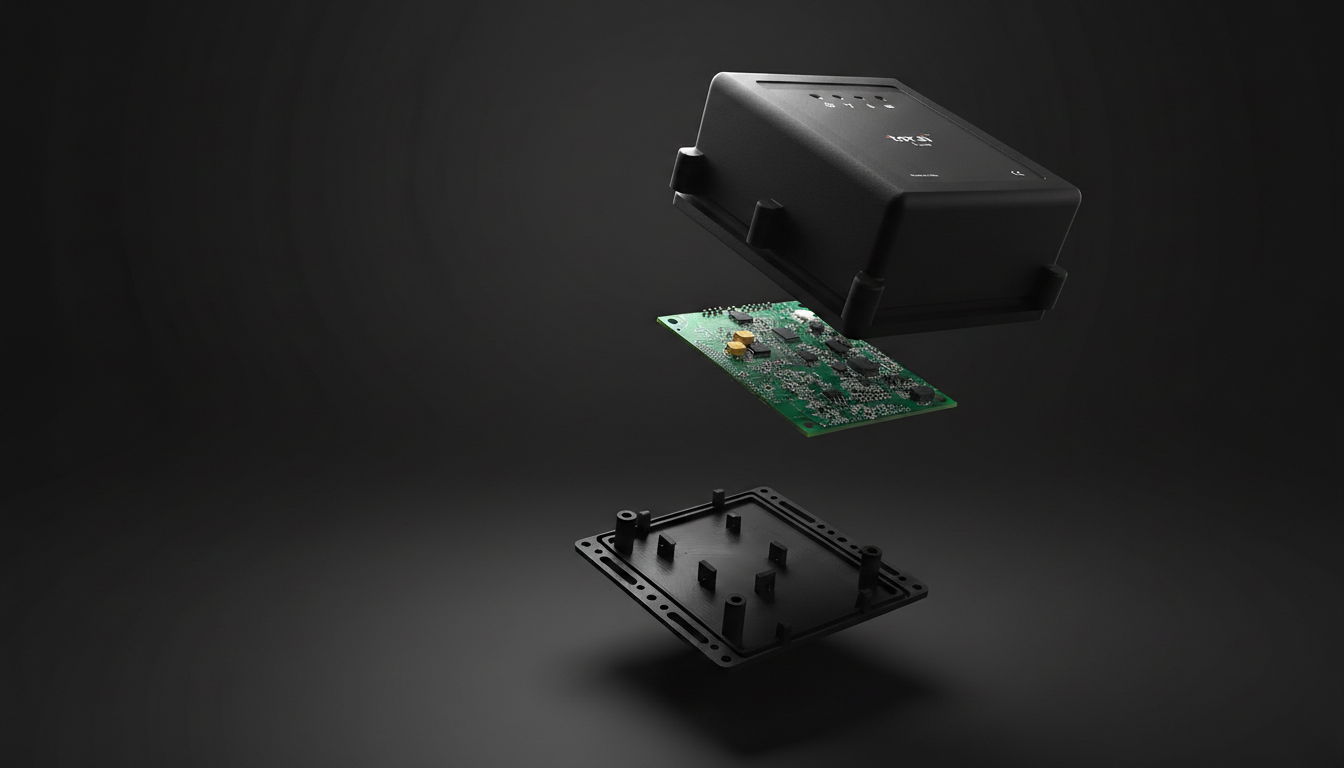

Take a closer look.
4 digital inputs (12–30V), 1 digital output, and 2 analog inputs (0–30V) enable direct interfacing with vehicle and equipment signals without external expansion modules.
Built-in CAN interface enables direct ECU data extraction from vehicles and heavy machinery without an external adapter.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.
Onboard accelerometer enables native detection of shock, vibration, and motion events adding tamper detection and impact logging without any external sensor hardware.
At 104×91×36 mm with IP65 rating and -40 to +85°C operating range, fits tight installation spaces in harsh outdoor and industrial environments.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 9–30 V DC
- Backup battery
- 800 mAH Li-Ion 3.7 V
communication
- Cellular
- 4G LTE, 2G GSM
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- Memory
- 64 MB
interfaces
- RS232
- 1
- CAN
- 1
- Digital input
- 4 (12–30 V)
- Digital output
- 1 (1 A, 60 V)
- Analog input
- 2 (0–30 V)
- Sensors
- Accelerometer
physical
- Dimensions
- 104 × 91 × 36 mm
- Harness
- 16 Pin
environmental
- IP
- IP65
- Operating temp
- -40 °C to +85 °C
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
