Gateway

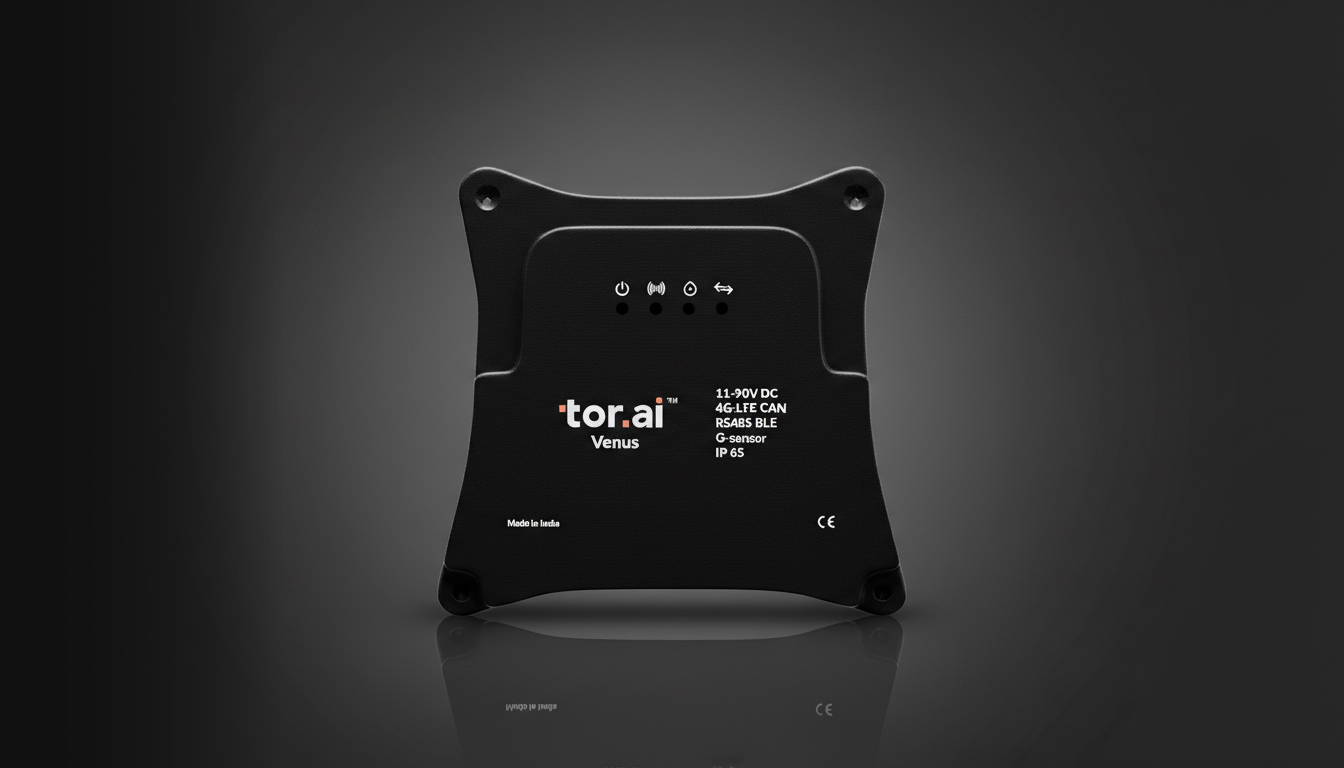

Venus 411
4G LTE gateway with CAN and digital I/O. 4-pin harness, 120×115×35 mm. No backup battery. For industrial CAN and I/O telemetry.
4G LTE
Cellular connectivity.
CAN
Industrial CAN interface.
Digital I/O
2 DI, 1 DO.
Compact
120×115×35 mm, 4 Pin.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.
Take a closer look.
Built-in CAN interface enables direct ECU data extraction from vehicles and heavy machinery without an external adapter.
2 digital inputs (0–90V) and 1 digital output enable direct interfacing with high-voltage vehicle signals without external signal conditioning.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.
At 120×115×35 mm with IP65 rating and -40 to +85°C operating range, fits tight installation spaces in harsh outdoor and industrial environments.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 12–30 V DC
- Backup battery
- NA
communication
- Cellular
- 4G LTE, 2G GSM
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- Memory
- 64 MB
interfaces
- CAN
- 1
- Digital input
- 2
- Digital output
- 1
physical
- Dimensions
- 120 × 115 × 35 mm
- Harness
- 4 Pin
environmental
- IP
- IP65
- Operating temp
- -40 °C to +85 °C
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
