Gateway
Venus 313
Venus-series 4G LTE gateway with RS485 and BLE. External cellular and GNSS antennas, 1000 strings @ 1 min. 11–30 V, 4-pin harness. Serial telemetry without CAN or field I/O.
4G LTE
Cellular with external GSM antenna.
RS485
Serial Modbus and industrial protocol support.
BLE 4.2
BLE 4.2 for wireless sensors and setup.
GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.
Take a closer look.
RS485 interface enables reliable wired communication with Modbus-based sensors and equipment over long cable runs in industrial environments.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.

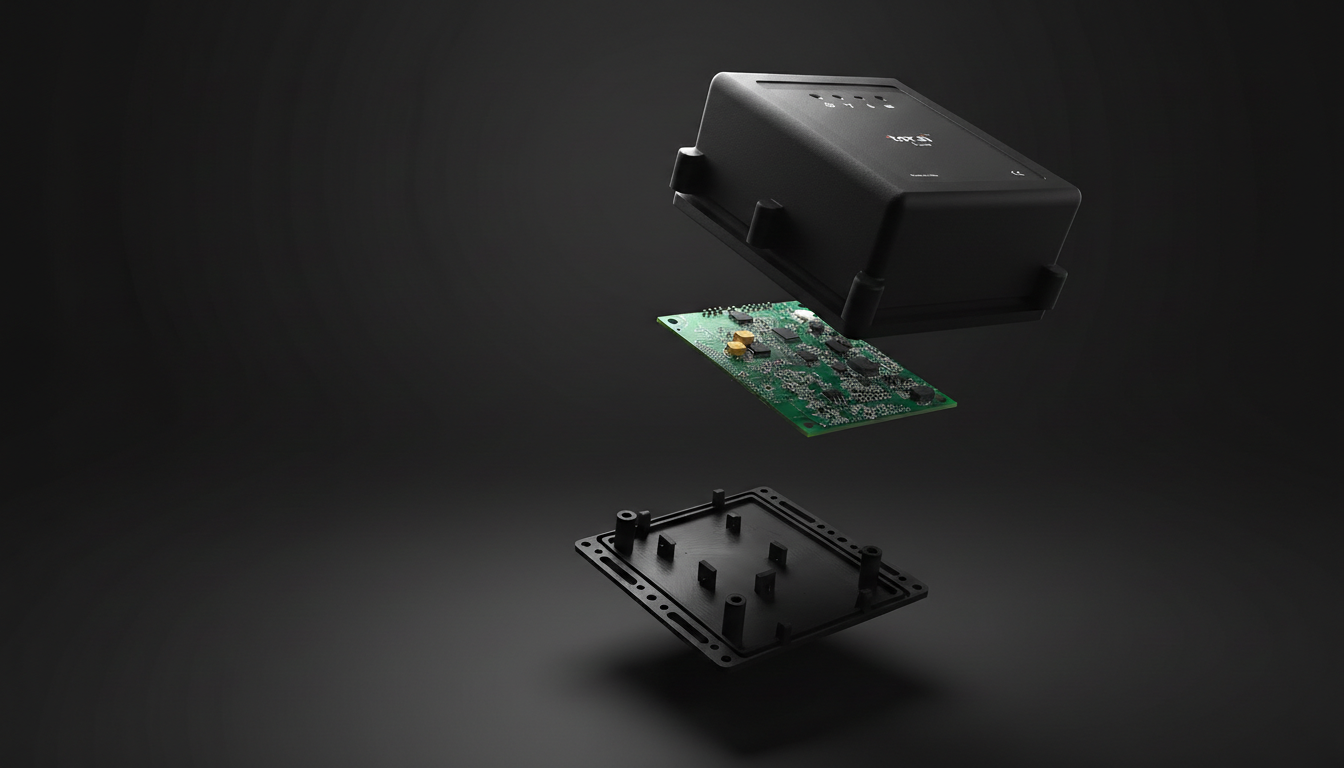

120×115×35 mm enclosure
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 11–30 V DC
- Max supply
- 30 V DC
- Reverse polarity
- 0 to −30 V DC
- Max operating current
- <100 mA
- Peak current
- 2 A @ network activities
- Backup battery
- NA
communication
- Cellular
- 4G LTE FDD/TDD, 2G GSM
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- Protocols
- HTTP, MQTT
- BLE
- BLE 4.2
- Memory
- 1000 strings @ 1 min
interfaces
- RS485
- 1
- CAN
- —
- Digital input
- —
- Digital output
- —
- GNSS antenna
- External
- Cellular antenna
- External GSM
- SIM
- Micro
physical
- Dimensions (L×W×H)
- 120 × 115 × 35 mm
- Harness
- 4 Pin
environmental
- IP
- IP65
- Operating temp
- −40 °C to +85 °C
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
