Gateway

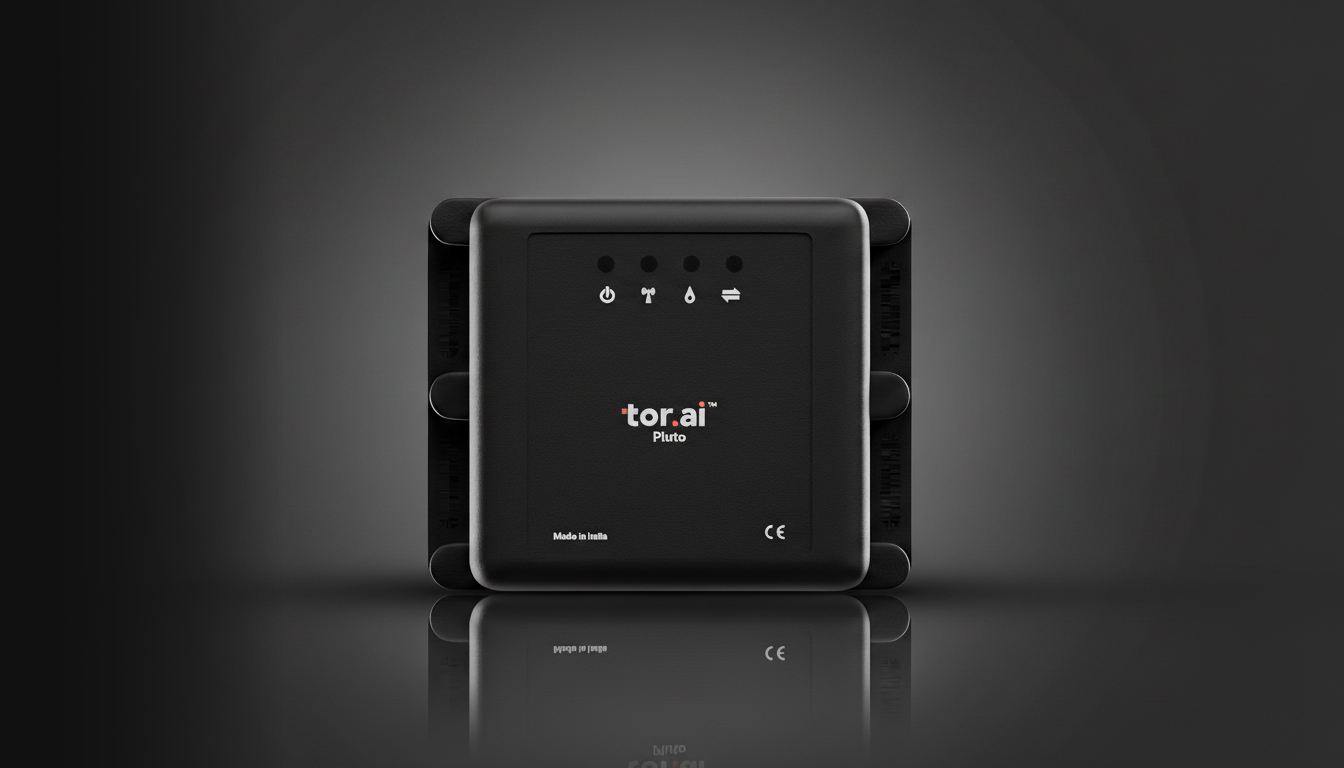

Pluto 313
Industrial 4G LTE gateway with RS485 and BLE. Compact, type-tested for harsh environments. TCP/IP and MQTT for SCADA, telemetry, and remote monitoring.
4G LTE
Cellular connectivity for field and remote sites.
RS485
Serial Modbus and industrial protocol support.
BLE 4.2
Wireless configuration and setup.
GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.
Take a closer look.
RS485 interface enables reliable wired communication with Modbus-based sensors and equipment over long cable runs in industrial environments.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.
At 104×91×36 mm with IP65 rating and -40 to +85°C operating range, fits tight installation spaces in harsh outdoor and industrial environments.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 12–30 V DC
- Max supply
- 30 V DC
- Reverse polarity
- 0 to -30 V DC
- Max operating current
- <100 mA
- Peak current
- 2 A @ network activities
- Backup battery
- NA
communication
- Cellular
- 4G LTE FDD/TDD, 2G GSM
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- Protocols
- TCP/IP, MQTT
- BLE
- BLE 4.2
- Memory
- 1000 strings
interfaces
- RS485
- 1
- RS232
- —
- CAN
- —
- GNSS antenna
- External
- Cellular antenna
- External GSM
- SIM
- Micro
physical
- Dimensions (L×W×H)
- 104 × 91 × 36 mm
- Harness
- 4 Pin
environmental
- Operating temp
- -40 °C to +85 °C
- Humidity
- 85% RH
- Vibration
- 2g, 10–150 Hz
- IP
- IP65
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
