Gateway

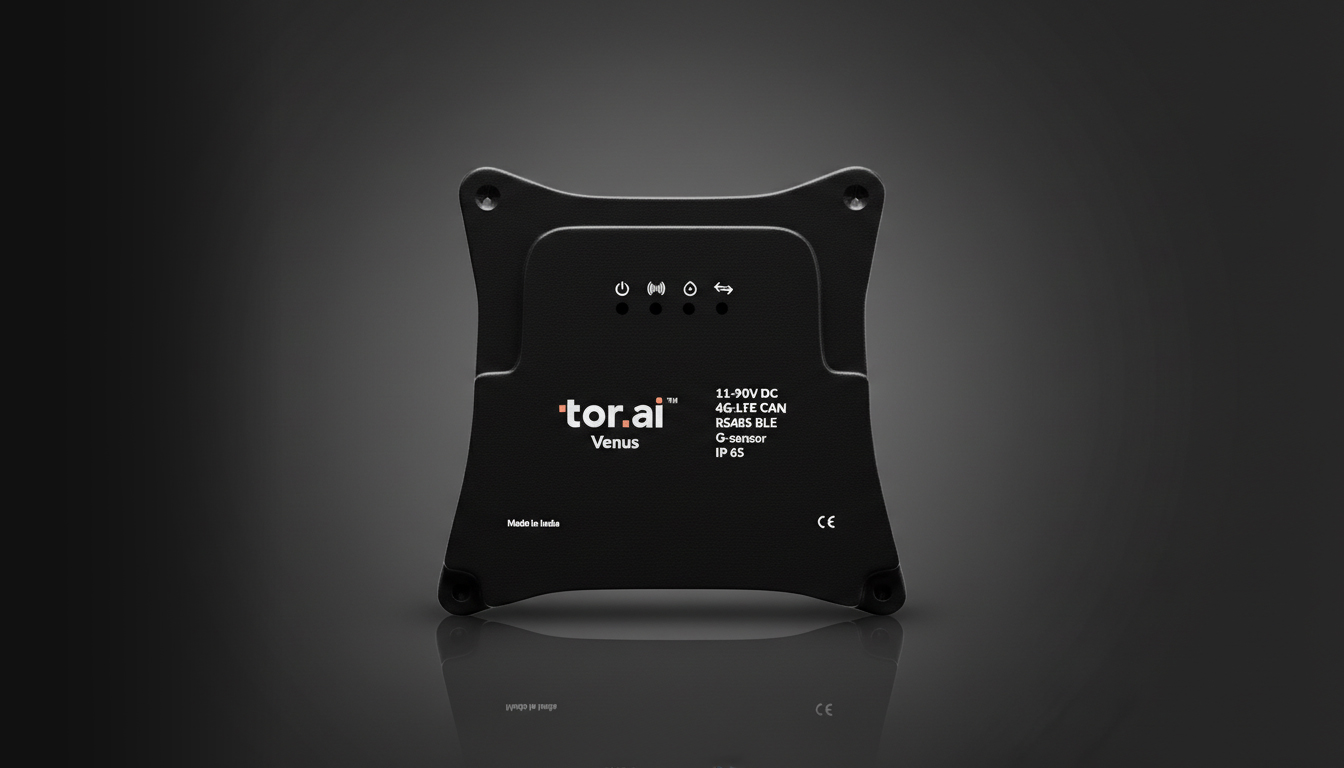

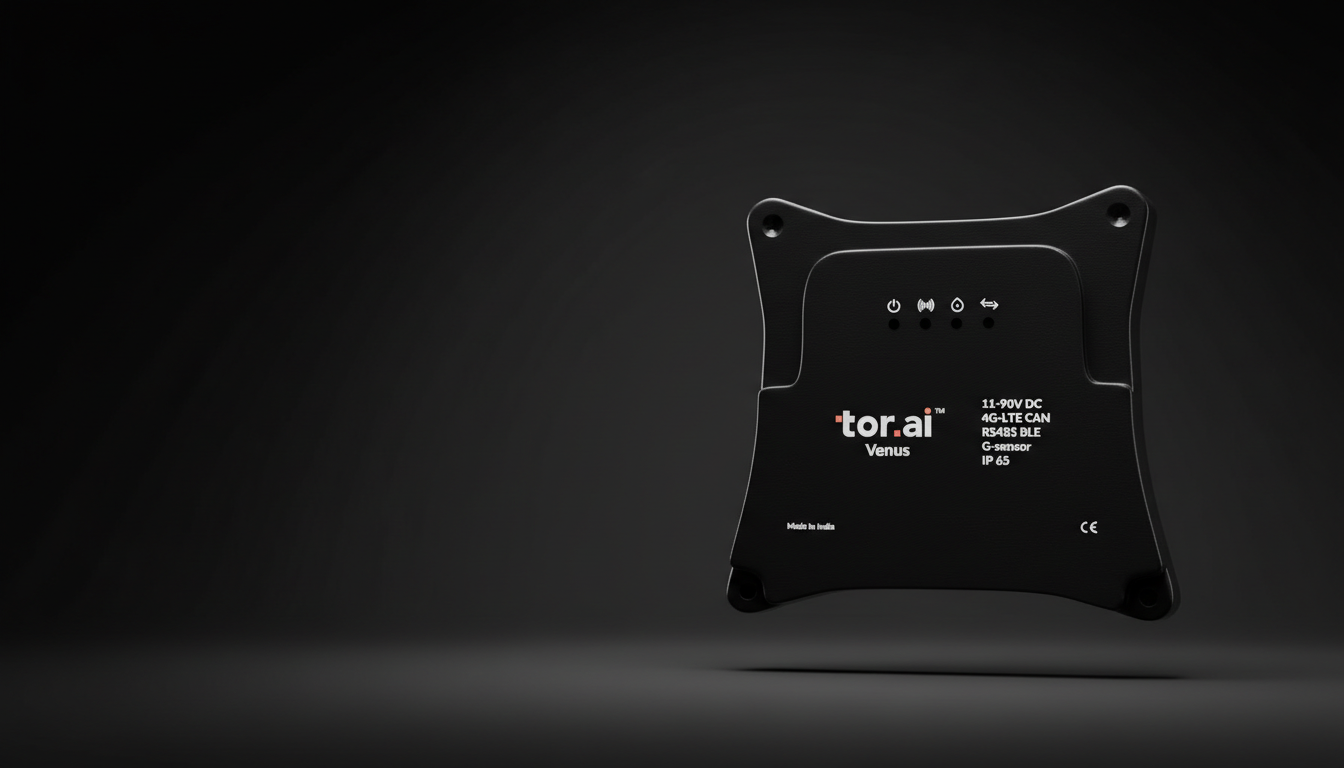

Venus 411 B
4G LTE gateway with CAN, digital and analog I/O, and accelerometer. 800 mAH backup, 4-pin harness. For industrial I/O and motion sensing.
4G LTE
Cellular connectivity.
CAN + I/O
CAN, 2 DI, 1 DO, 2 AI.
Accelerometer
Motion and tilt sensing.
800 mAH backup
Li-Ion battery.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.
Take a closer look.
Built-in CAN interface enables direct ECU data extraction from vehicles and heavy machinery without an external adapter.
2 digital inputs (0–90V) and 1 digital output enable direct interfacing with high-voltage vehicle signals without external signal conditioning.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.
Onboard accelerometer enables native detection of shock, vibration, and motion events adding tamper detection and impact logging without any external sensor hardware.
At 120×115×35 mm with IP65 rating and -40 to +85°C operating range, fits tight installation spaces in harsh outdoor and industrial environments.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 12–30 V DC
- Backup battery
- 800 mAH Li-Ion 3.7 V
communication
- Cellular
- 4G LTE, 2G GSM
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- Memory
- 64 MB
interfaces
- CAN
- 1
- Digital input
- 2
- Digital output
- 1
- Analog input
- 2
- Sensors
- Accelerometer
physical
- Dimensions
- 120 × 115 × 35 mm
- Harness
- 4 Pin
environmental
- IP
- IP65
- Operating temp
- -40 °C to +85 °C
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
