Three-phase multifunction meter

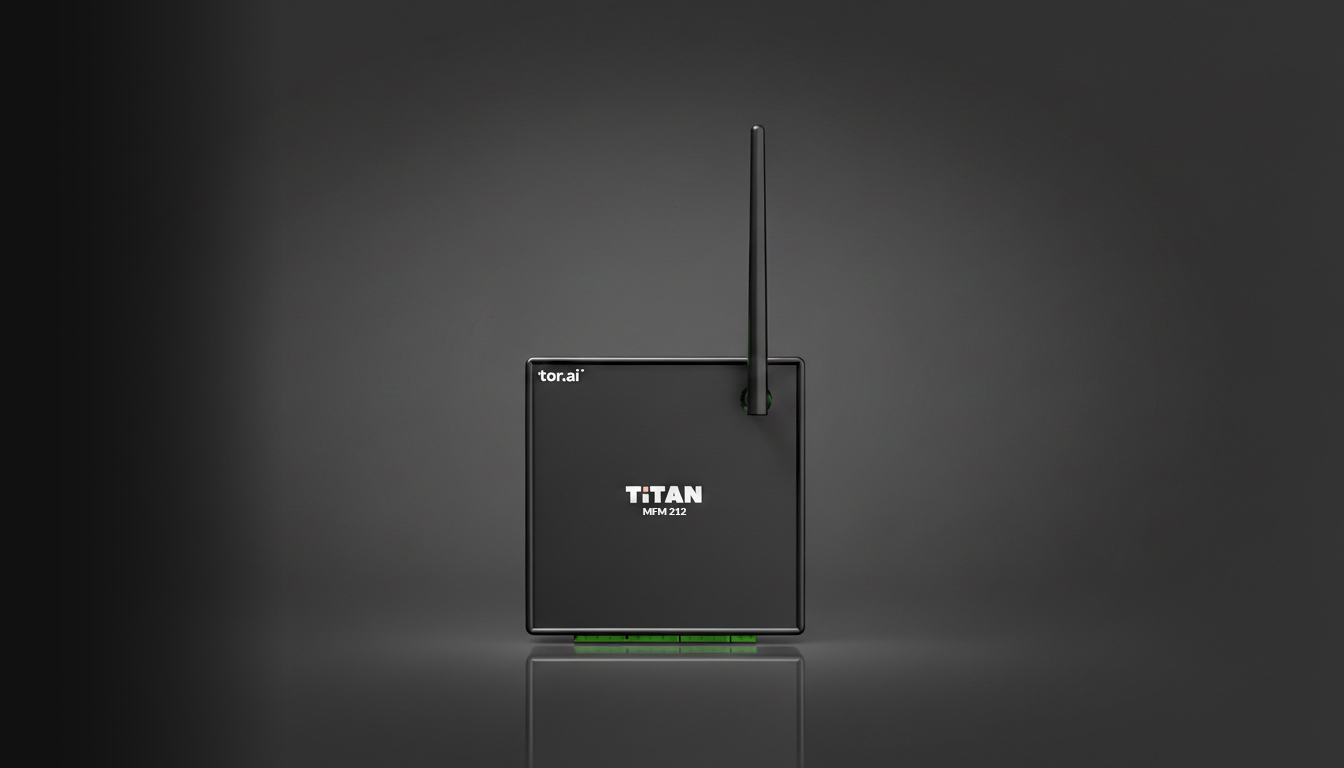

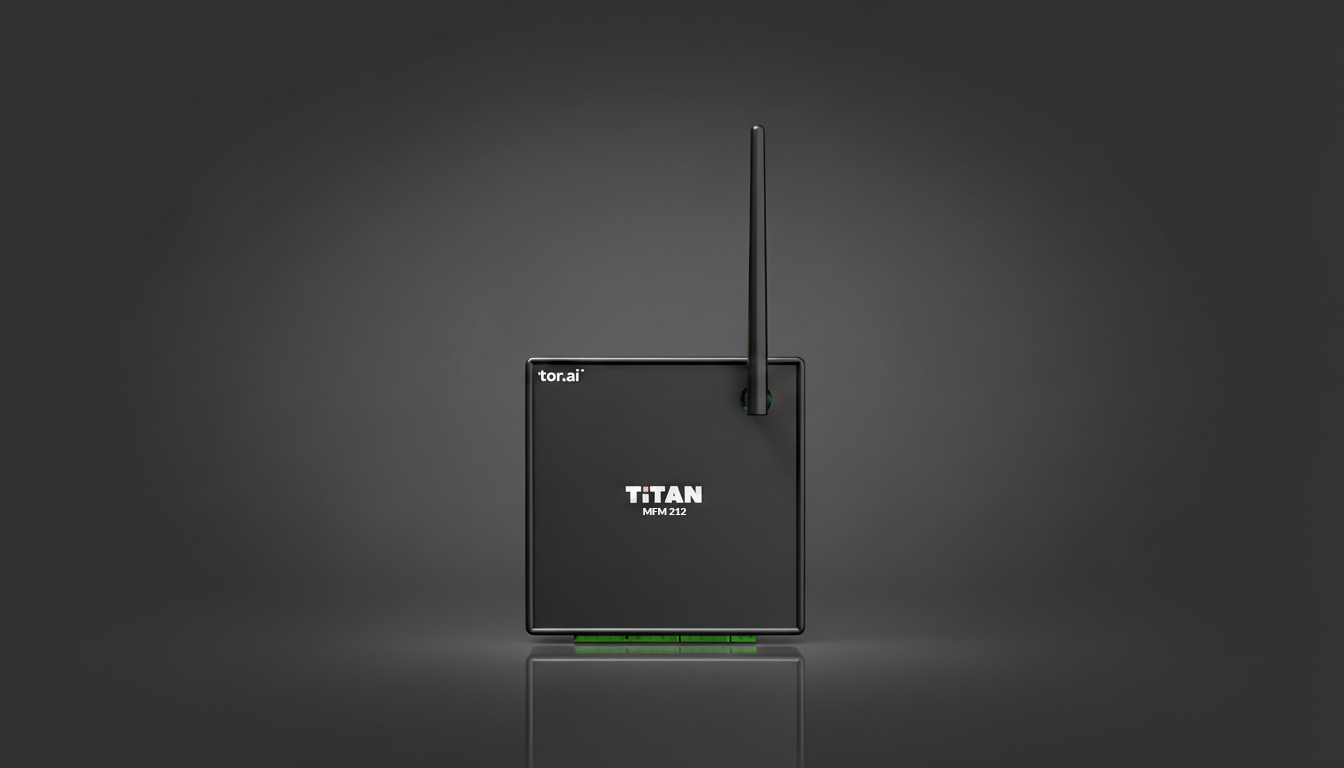

Tor Titan 212

Compact 68-parameter meter with RS485 and BLE/WiFi connectivity for panel installations requiring wireless commissioning. No display & configured via mobile app for cost-optimized deployments.

Three-phase & 0.5S

Accurate measurement for 3P4W / 3P3W applications.

Wi‑Fi & BLE

Wireless setup and Mobile App configuration.

68+ parameters

Energy, power quality, and electrical parameters.

0.5s accuracy

Accurate measurement for 3P4W / 3P3W applications.

Titan EMS

Desktop monitoring and trends on your network.

Take a closer look.

Measurement, connectivity, and full specifications.

electrical

Voltage range: 50V – 500V AC (3-phase 4-wire, 3-phase 3-wire)
Aux power: 65V – 450V AC/DC
Current range: 0.05A – 5.0A (20% overload)
Frequency: 45Hz – 65Hz
Accuracy class: 0.5S

mechanical

Dimensions (W×H×D): 96 × 96 × 41 mm
Weight: 0.5 kg
Enclosure: Polycarbonate
Terminals: Plug-in
Mounting: Panel mounting, DIN rail (optional)

communication

Modbus: RS485
Baud rate: 9600 – 115200 (settable)
Wi‑Fi: IEEE 802.11
BLE: BLE 5.0

environmental

IP: IP54 (front); IP20 (terminals)
Operating temp: 10°C to 75°C
Storage temp: 0°C to 85°C
Humidity: 95% RH

Titan EMS – Energy Management Solution

Monitor and visualize live data from Titan meters over Wi‑Fi. Dashboard of all meters, trend analysis, daily and monthly reports, auto-discovery, and scheduler.

Learn about Titan EMS →
