Three-phase multifunction meter

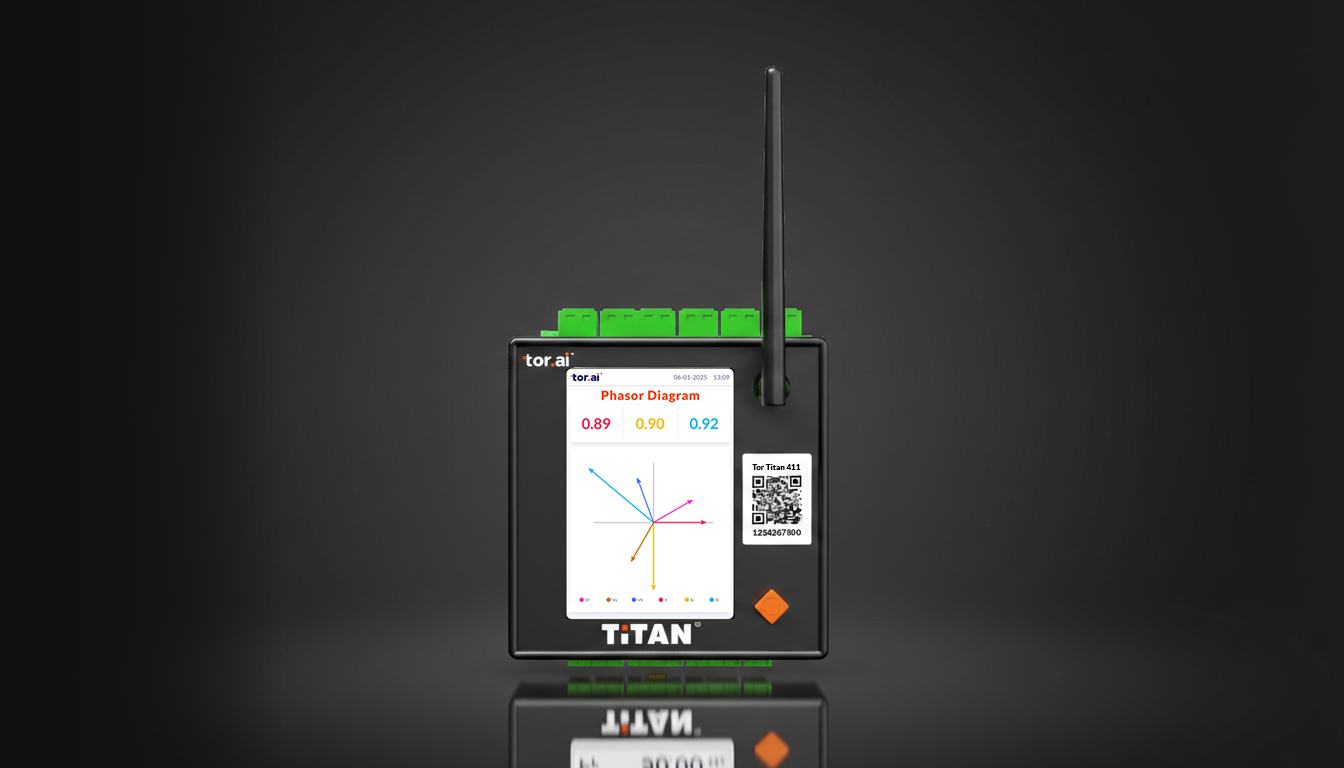

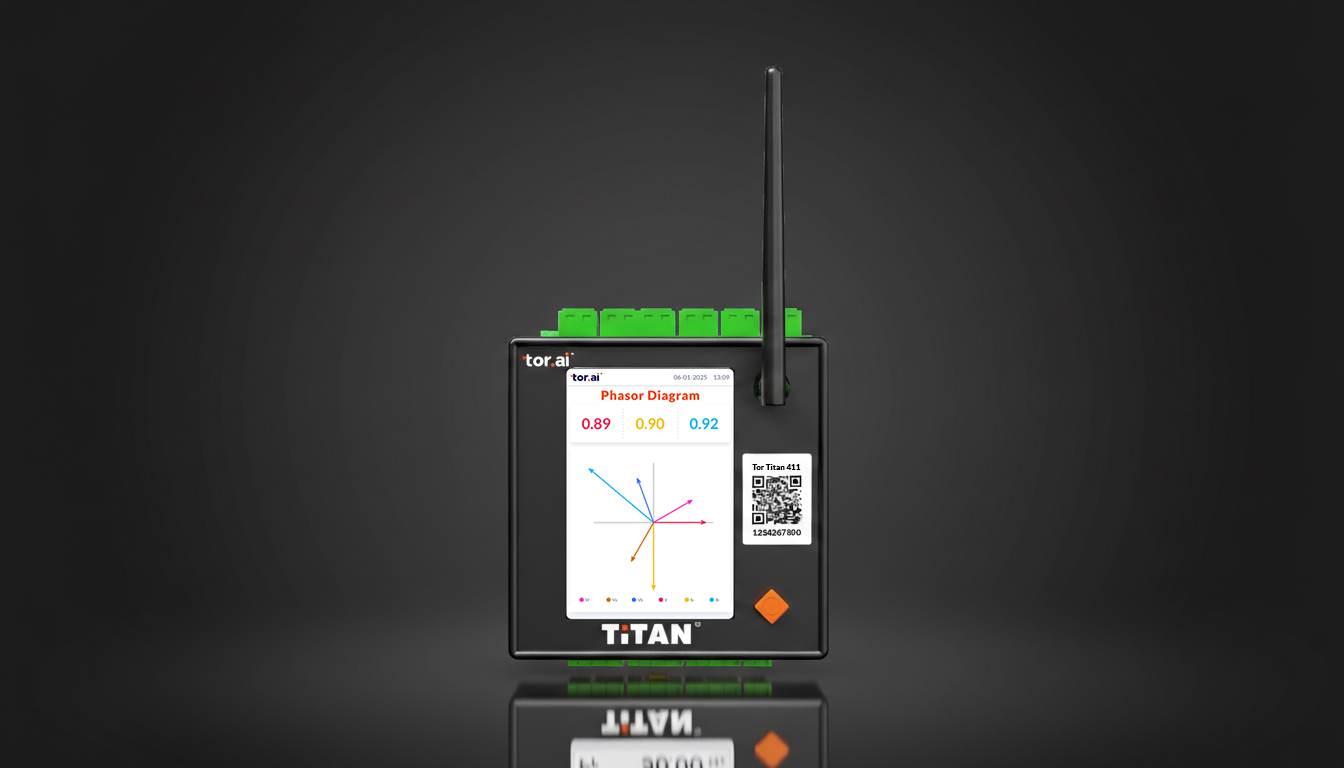

Tor Titan 411
Flagship multifunction meter with 68-parameter monitoring, transient analysis, I/Os, WiFi/BLE connectivity, hour meters, counter inputs, and Titan EMS integration.
Three-phase & 0.5S
Accurate measurement for 3P4W / 3P3W applications.
Transient analysis
Capture and analyze voltage and current transients.
Full I/O
Digital I/O, analog I/O, hour meter, counter input.
Wi‑Fi & BLE
Wireless setup and Mobile App configuration.
Titan EMS
Desktop monitoring and trends.
Take a closer look.
Captures voltage and current transients at 20ms sampling intervals over WiFi, enabling identification of power quality events and equipment faults before they cause costly downtime.
2 analog inputs (0–500Ω, 4–20mA), 2 digital inputs, and 2 digital outputs enable direct sensor monitoring and actuator control — adding PLC-like automation capability to the meter.
IEEE 802.11 WiFi and BLE 5.0 support enable wireless network integration and mobile app access — eliminating the need for physical RS485 wiring during commissioning and troubleshooting.
Auto-discovery and seamless integration with Titan EMS on-premises software provides centralized dashboards, trend analysis, live reports, and shift-based energy tracking across multiple meters.
Digital-input-based counter tracks pulse outputs from flow meters, production counters, or event sensors — linking energy consumption directly to process metrics within the same device.
Three independent hour meters (voltage-based, current-based, and DI-based) track equipment runtime across different operating modes — eliminating the need for external runtime counters.
Measurement, connectivity, I/O, transient analysis, and full specifications.
electrical
- Voltage range
- 50V – 500V AC (3-phase 4-wire, 3-phase 3-wire)
- Aux power
- 65V – 450V AC/DC
- Current range
- 0.05A – 5.0A (20% overload)
- Frequency
- 45Hz – 65Hz
- Accuracy class
- 0.5S
mechanical
- Dimensions (W×H×D)
- 96 × 96 × 41 mm
- Weight
- 0.5 kg
- Enclosure
- Polycarbonate
- Terminals
- Plug-in
- Mounting
- Panel mounting, DIN rail (optional)
communication
- Modbus
- RS485
- Baud rate
- 9600 – 115200 (settable)
- Wi‑Fi
- IEEE 802.11
- BLE
- BLE 5.0
io and analysis
- Digital I/O
- Yes
- Analog I/O
- Yes
- Hour meter
- Yes
- Counter input
- Yes
- Transient analysis
- Yes
environmental
- IP
- IP54 (front); IP20 (terminals)
- Operating temp
- 10°C to 75°C
- Storage temp
- 0°C to 85°C
- Humidity
- 95% RH
Titan EMS – Energy Management Solution
Monitor and visualize live data from Titan meters over Wi‑Fi. Dashboard of all meters, trend analysis, daily and monthly reports, auto-discovery, and scheduler.
Learn about Titan EMS →Use cases
Practical applications for energy metering, transient analysis, and I/O monitoring with Titan 411.
Energy monitoring in commercial buildings
Submeter loads, track consumption by zone, and benchmark efficiency.
Tenant billing and cost allocation
Allocate energy costs by meter for fair billing and reporting.
Power quality and compliance
Monitor voltage, THD, and power factor for standards compliance.
