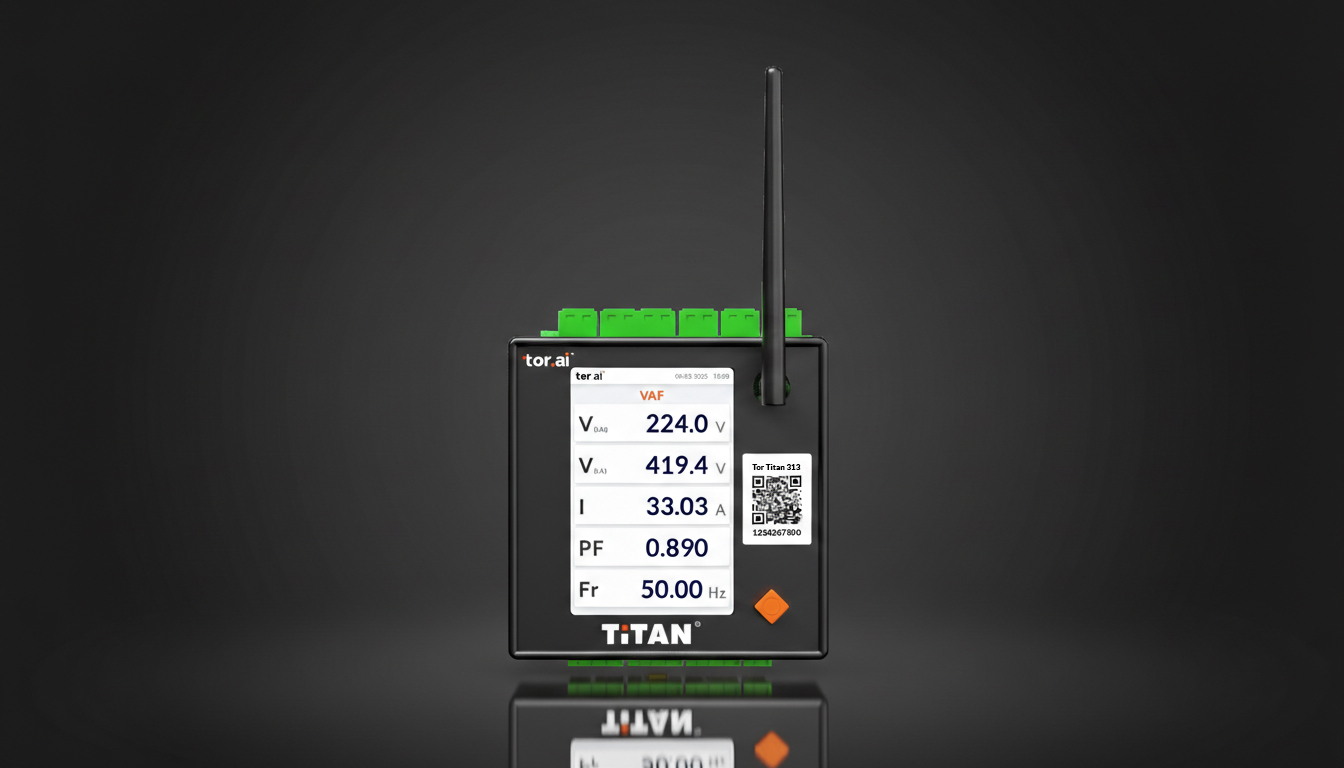

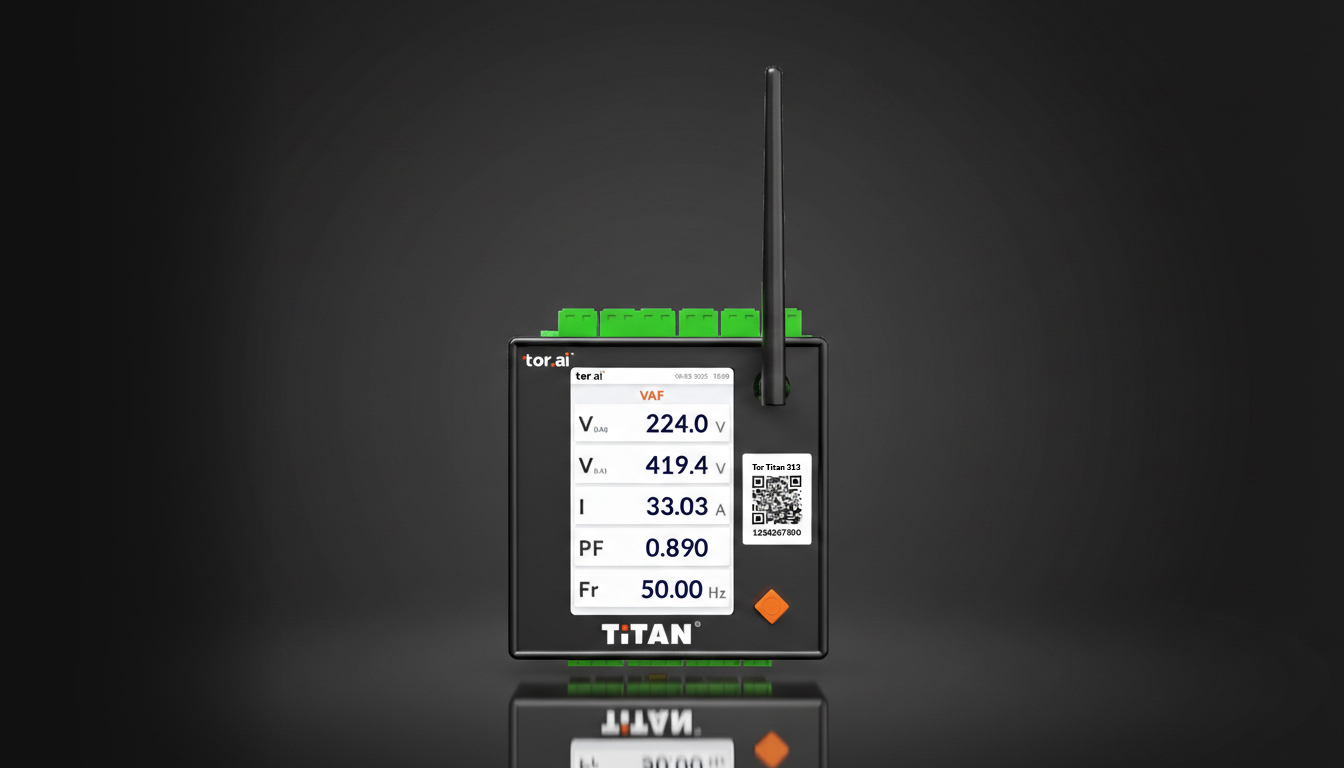

Three-phase multifunction meter
Tor Titan 313
Full-featured meter with 68 parameters, WiFi/BLE, I/Os, hour meters, counter inputs, and Titan EMS. Automation-capable solution for cost-sensitive installations.
Three-phase & 0.5S
Accurate measurement for 3P4W / 3P3W applications.
Full I/O
Digital I/O, analog I/O, hour meter, counter input.
Wi‑Fi & BLE
Wireless integration and Mobile app logbook.
TFT display
3.5" colour TFT for local readouts and configuration.
Titan EMS
Desktop monitoring and trends.
Take a closer look.
2 analog inputs (0–500Ω, 4–20mA), 2 digital inputs, and 2 digital outputs enable direct sensor monitoring and actuator control — adding PLC-like automation capability to the meter.
IEEE 802.11 WiFi and BLE 5.0 support enable wireless network integration and mobile app access — eliminating the need for physical RS485 wiring during commissioning and troubleshooting.
Auto-discovery and seamless integration with Titan EMS on-premises software provides centralized dashboards, trend analysis, live reports, and shift-based energy tracking across multiple meters.
3.5-inch high-resolution colour TFT display (320×480) provides on-device visibility of all 68 parameters — enabling local diagnostics and commissioning without external tools.
Digital-input-based counter tracks pulse outputs from flow meters, production counters, or event sensors — linking energy consumption directly to process metrics within the same device.
Three independent hour meters (voltage-based, current-based, and DI-based) track equipment runtime across different operating modes — eliminating the need for external runtime counters.
Measurement, connectivity, I/O, and full specifications.
electrical
- Voltage range
- 50V – 500V AC (3-phase 4-wire, 3-phase 3-wire)
- Aux power
- 65V – 450V AC/DC
- Current range
- 0.05A – 5.0A (20% overload)
- Frequency
- 45Hz – 65Hz
- Accuracy class
- 0.5S
mechanical
- Dimensions (W×H×D)
- 96 × 96 × 41 mm
- Weight
- 0.5 kg
- Enclosure
- Polycarbonate
- Terminals
- Plug-in
- Mounting
- Panel mounting, DIN rail (optional)
communication
- Modbus
- RS485
- Baud rate
- 9600 – 115200 (settable)
- Wi‑Fi
- IEEE 802.11
- BLE
- BLE 5.0
io and analysis
- Digital I/O
- Yes
- Analog I/O
- Yes
- Hour meter
- Yes
- Counter input
- Yes
environmental
- IP
- IP54 (front); IP20 (terminals)
- Operating temp
- 10°C to 75°C
- Storage temp
- 0°C to 85°C
- Humidity
- 95% RH
Titan EMS – Energy Management Solution
Monitor and visualize live data from Titan meters over Wi‑Fi. Dashboard of all meters, trend analysis, daily and monthly reports, auto-discovery, and scheduler.
