Gateway

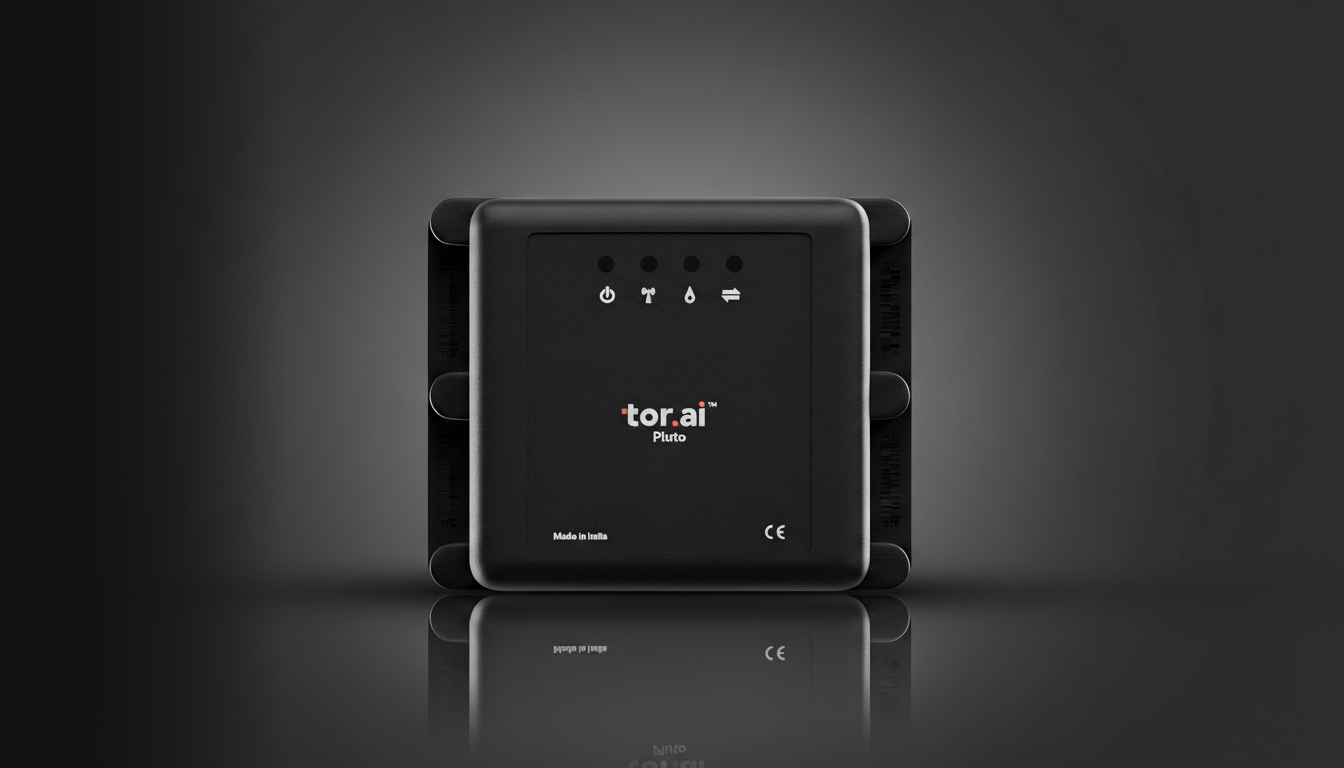

Pluto 411
4G LTE gateway with RS485, CAN, and 800 mAH backup battery. BLE for configuration. Ideal for industrial telemetry and SCADA in demanding environments.
4G LTE
Cellular connectivity with internal antenna.
RS485 + CAN
Dual serial and CAN for industrial protocols.
BLE 4.2
Wireless configuration.
800 mAH backup
Li-Ion battery for power-loss continuity.
Tor Apollo
FOTA via Tor Apollo for provisioning and updates.

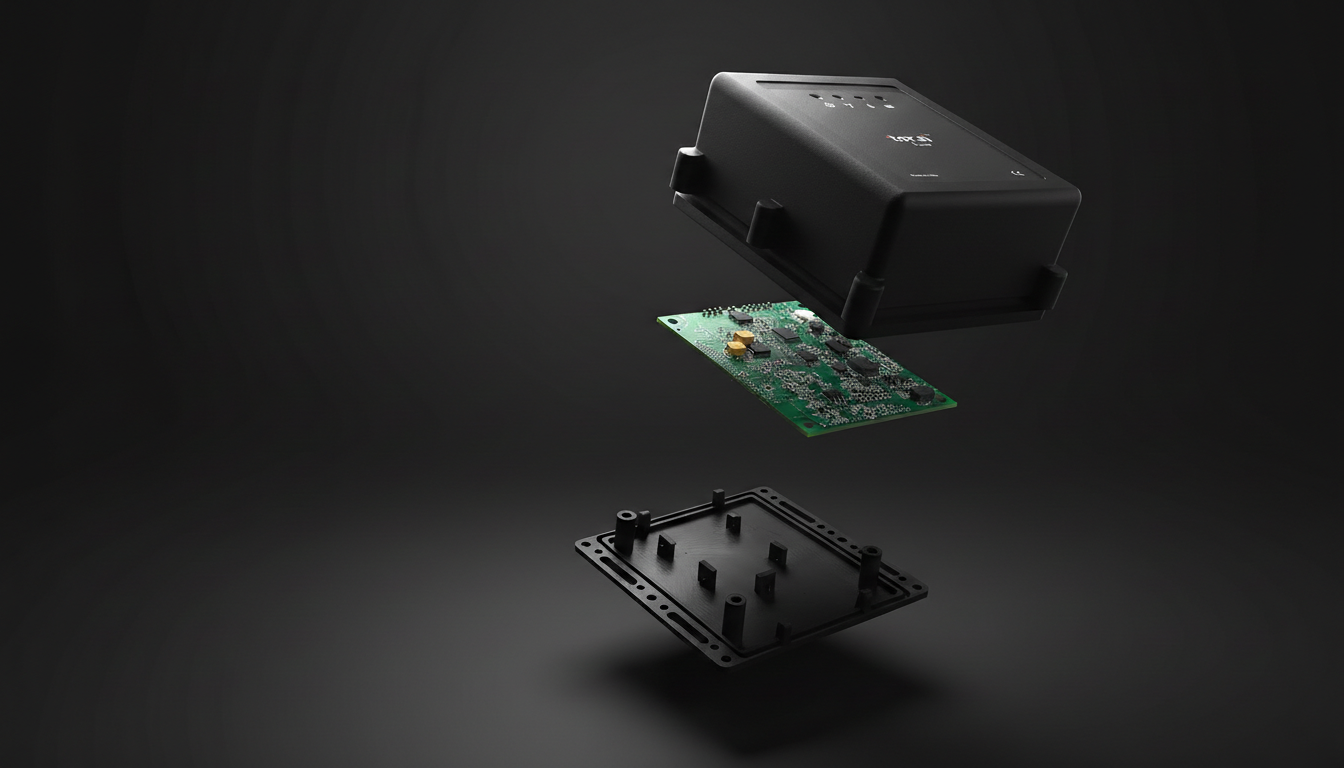

Take a closer look.
Built-in CAN interface enables direct ECU data extraction from vehicles and heavy machinery without an external adapter.
RS485 interface enables reliable wired communication with Modbus-based sensors and equipment alongside CAN in mixed-protocol installations.
BLE 4.2 enables wireless connection to fuel sensors and asset beacons expanding monitoring capability without additional wiring.
At 104×91×36 mm with IP65 rating and -40 to +85°C operating range, fits tight installation spaces in harsh outdoor and industrial environments.
FOTA and Tor Apollo let you update firmware and push configuration changes to all deployed units without on-site intervention.
Technical specifications.
power
- Supply voltage
- 14–90 V DC
- Max supply
- 90 V DC
- Reverse polarity
- 0 to -90 V DC
- Max operating current
- <100 mA
- Backup battery
- 800 mAH Li-Ion 3.7 V
communication
- Cellular
- 4G LTE FDD/TDD, 2G GSM
- GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS
- Protocols
- TCP/IP, MQTT
- Memory
- 64 MB
interfaces
- CAN
- 1
- RS485
- 1
- GNSS antenna
- Internal
- Cellular antenna
- Internal GSM
- SIM
- Micro
physical
- Dimensions
- 104 × 91 × 36 mm
- Harness
- 4 Pin
environmental
- Operating temp
- -40 °C to +85 °C
- IP
- IP65
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
