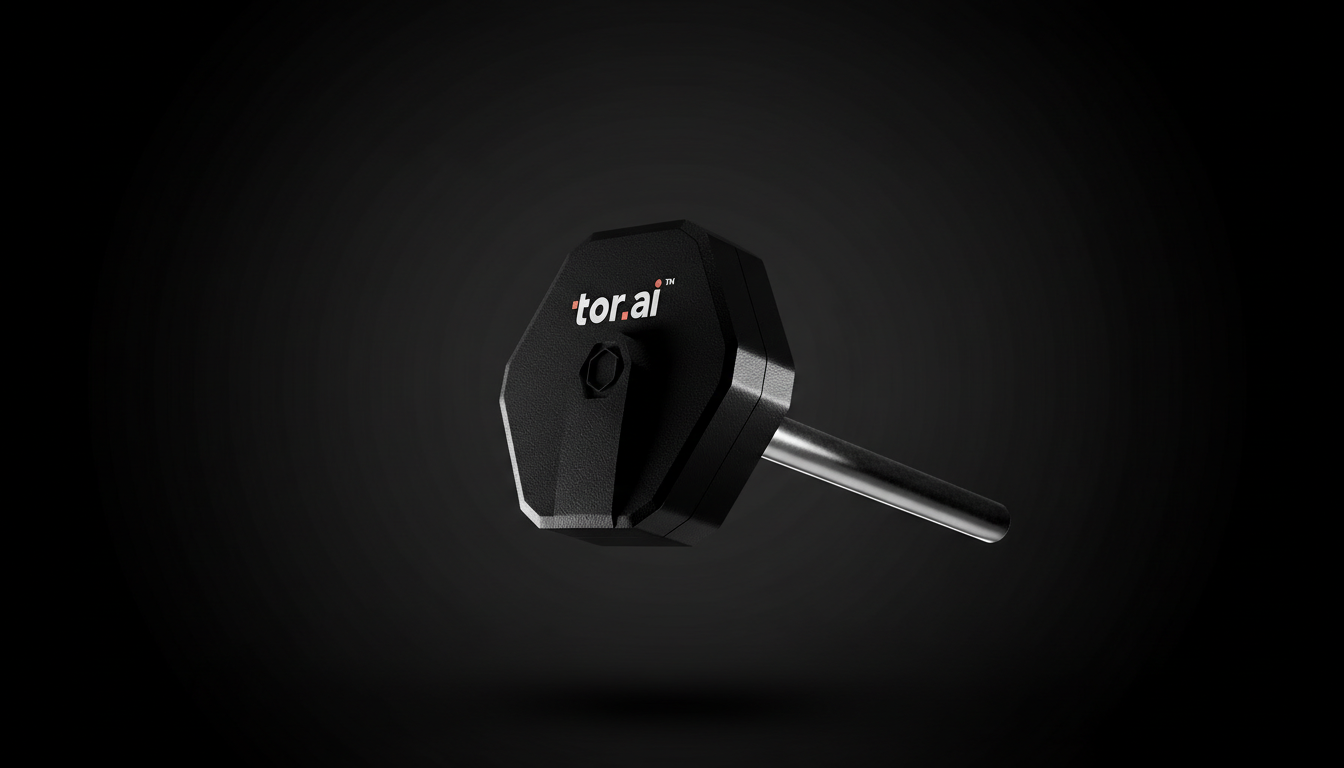

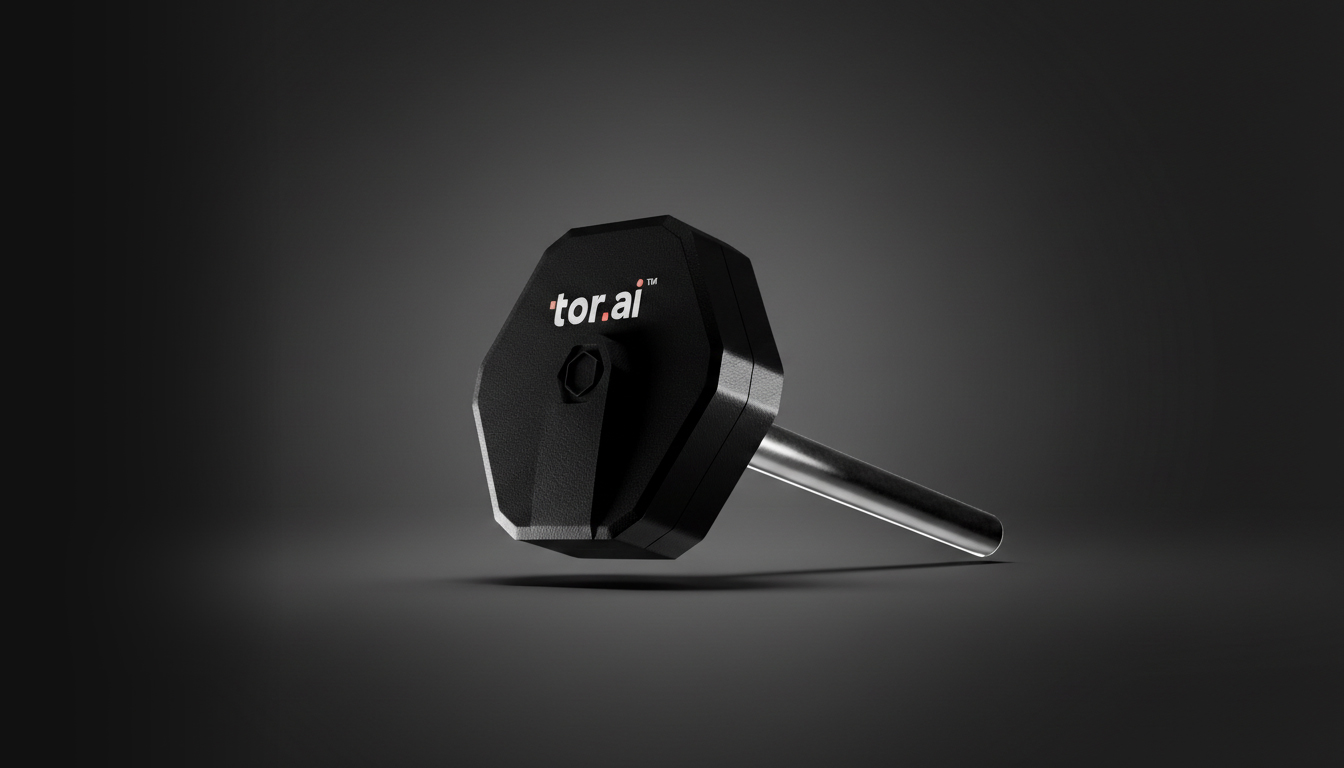

Fuel Sensor (Ceres)
CAN J1939 fuel level sensor with ±1% accuracy and IP69 rating for OEM vehicle integration. Direct CAN bus connection eliminates gateway requirement in factory-installed applications.
Analog I/O
0–5 V or 4–20 mA for level and consumption signals.
4-pin harness
Standard connector for power and signal.
Consumption analytics
Track fuel use and idle time via gateways.
Theft detection
Alerts when fuel level drops unexpectedly.
Take a closer look.
±1% full-scale accuracy enables precise fuel consumption tracking and immediate theft detection — significantly outperforming typical ±2-3% aftermarket sensors.
Fast 1-second update rate enables dynamic fuel consumption monitoring, sloshing compensation, and immediate anomaly detection — outpacing competitors with 5-10 second update intervals.
Native CAN 2.0 interface with J1939 protocol (250 kbps, 120-ohm terminated) enables direct integration with vehicle ECUs and fleet management systems without requiring an external gateway.
BLE 5.0 with 10-meter range enables wireless fuel monitoring in retrofit installations where running wiring to the tank is impractical or expensive.
Highest ingress protection rating available — dust-tight and resistant to high-pressure, high-temperature water jets — ensuring reliable operation fully submerged in fuel tanks and harsh washdown environments.
Available in 300mm, 500mm, 600mm, 800mm, and 1000mm standard lengths, pre-calibrated at factory — eliminating field calibration complexity and installation errors across different tank depths.
Technical specifications and integration details.
General
- Product
- Fuel Sensor (Ceres)
- Type
- Fuel level / consumption
- Output
- Analog (0–5 V / 4–20 mA)
- Harness
- 4 Pin
Application
- Typical use
- Gensets, marine, industrial tanks
- OEM variant
- Ceres OE for engine/generator integration
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Use cases
Typical applications for this sensor.
Genset and marine fuel monitoring
Tor Ceres fuel sensor with consumption analytics, idle time tracking, and theft detection alerts. Avoid idle running to extend asset life.
Industrial equipment OEM
Venus 411B/511 or Saturn 321/322 with Tor Ceres OE for fuel. Monitor engine, electrical, fuel, run hours; 70K+ connected. DEIF, DSE, ComAp, Cummins compatible.
