Sensor

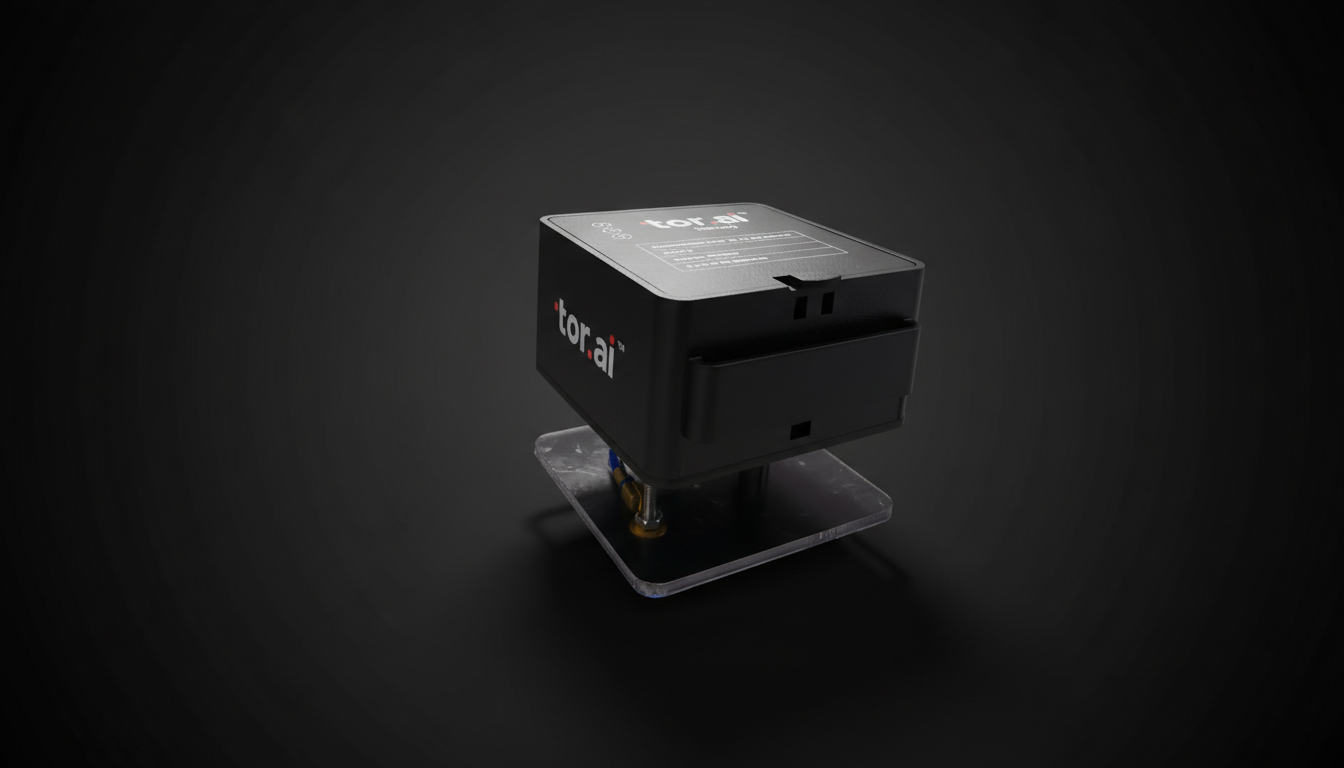

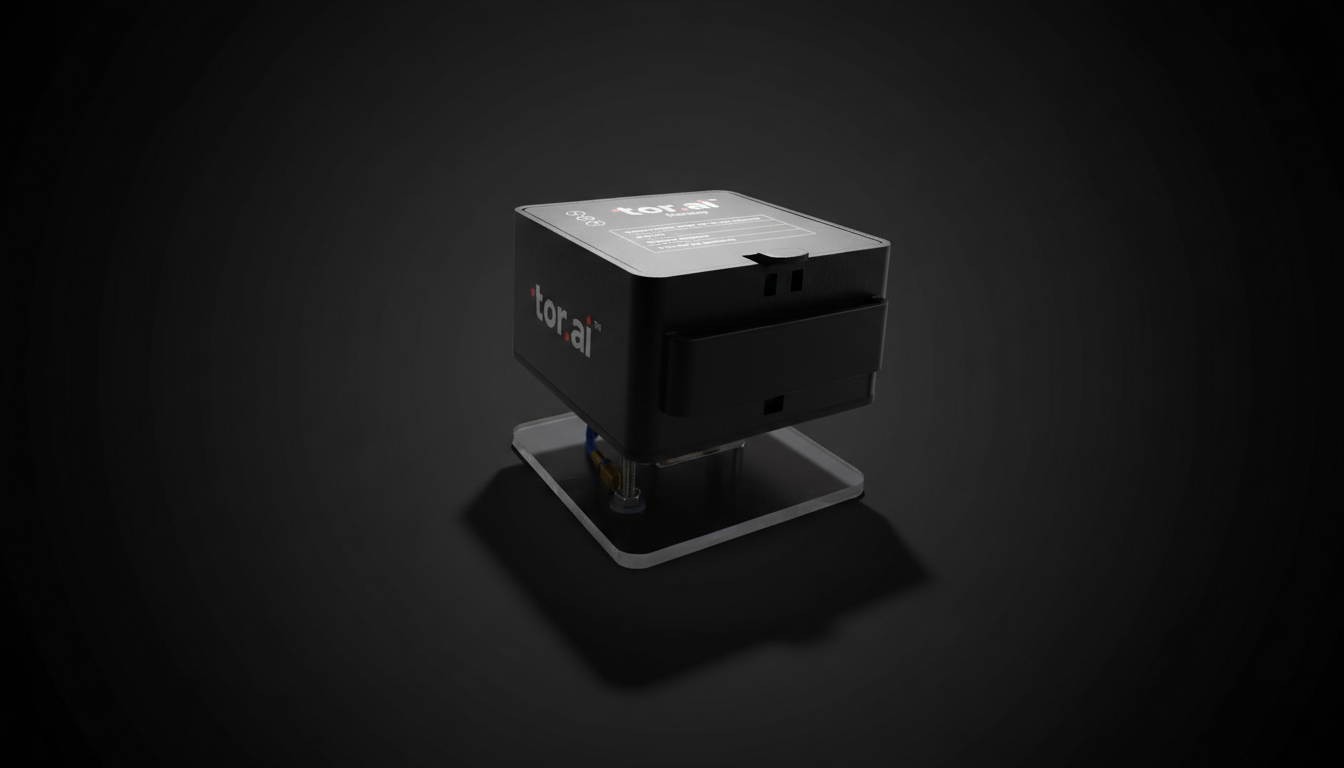

Tor Mercury
Wireless (BLE 5.2 with 50-meter range) temperature sensor with ±0.1°C accuracy across -40 to +240°C range and 15-year battery life.
Wireless monitoring
BLE based temperature monitoring
Temperature range
Wide operating range from -40 to +240°C
Applications
Busbar and in-panel temperature monitoring
Gateway integration
Works with Venus, Jupiter, and Pluto for cloud dashboards.
Thermography reports
Auto generated thermography reports
Take a closer look.
Covers everything from cold storage to hot machinery, busbar monitoring, and HVAC systems — eliminating the need for multiple sensor types across different temperature zones in a facility.
±0.1°C accuracy delivers exceptional precision for critical temperature monitoring and enabling early detection of thermal anomalies.
Dual ER14505 batteries (2700mAh, 7.2V nominal) provide 15 years of maintenance-free operation — eliminating the battery replacement burden.
50-meter range in advertising mode enables one gateway to cover large areas.
Adhesive backing for horizontal busbars and extension clip attachment enable installation without drilling, screwing, or equipment shutdown — reducing installation time.
65×70×65mm dimensions fit tight spaces on equipment, control panels, and busbars where larger sensors cannot mount.
Technical specifications and integration details.
General
- Product
- Tor Mercury
- Type
- Temperature sensor
- Output
- Analog (0–5 V / 4–20 mA)
- Harness
- 4 Pin
Environmental
- Operating temperature
- –40 °C to +85 °C
- Protection
- IP rating as per datasheet
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Wiki knowledge base
Firmware, first-start guides, usage scenarios, and certificates.
