Sensor

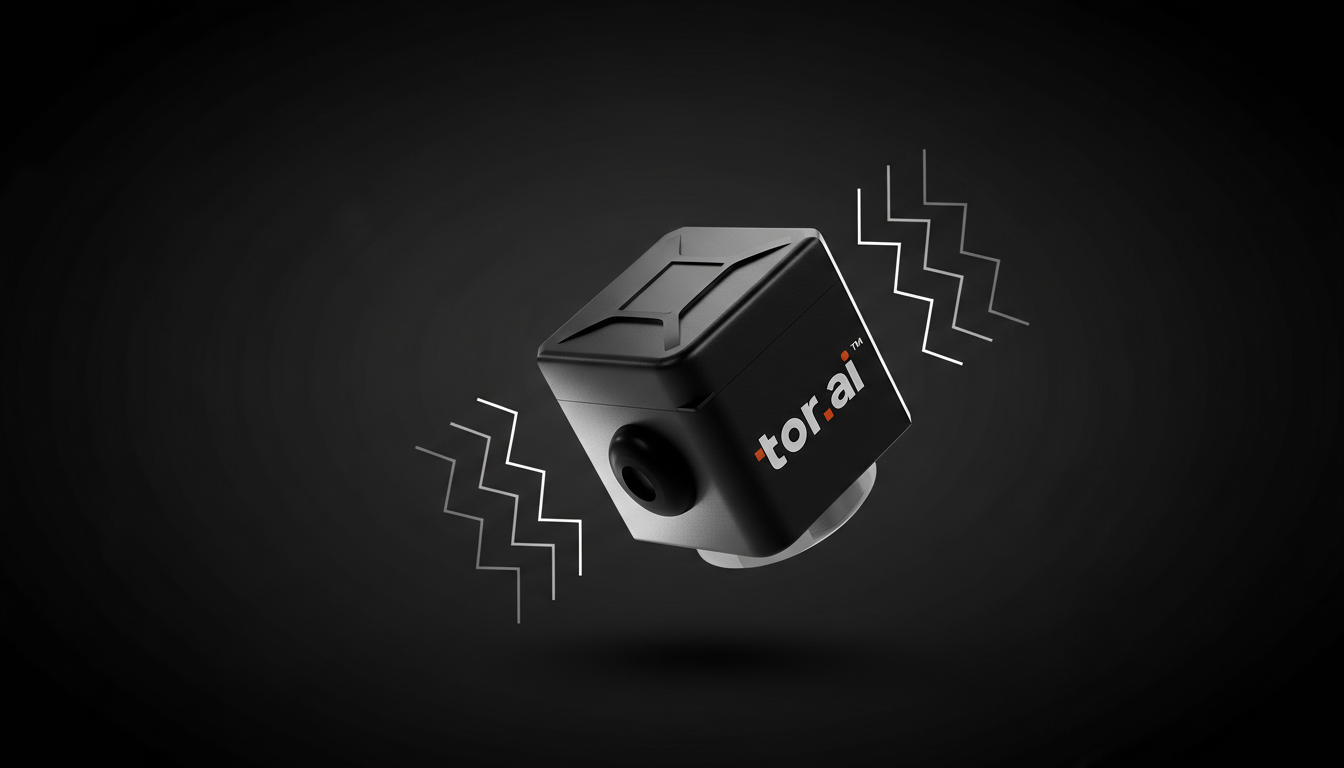

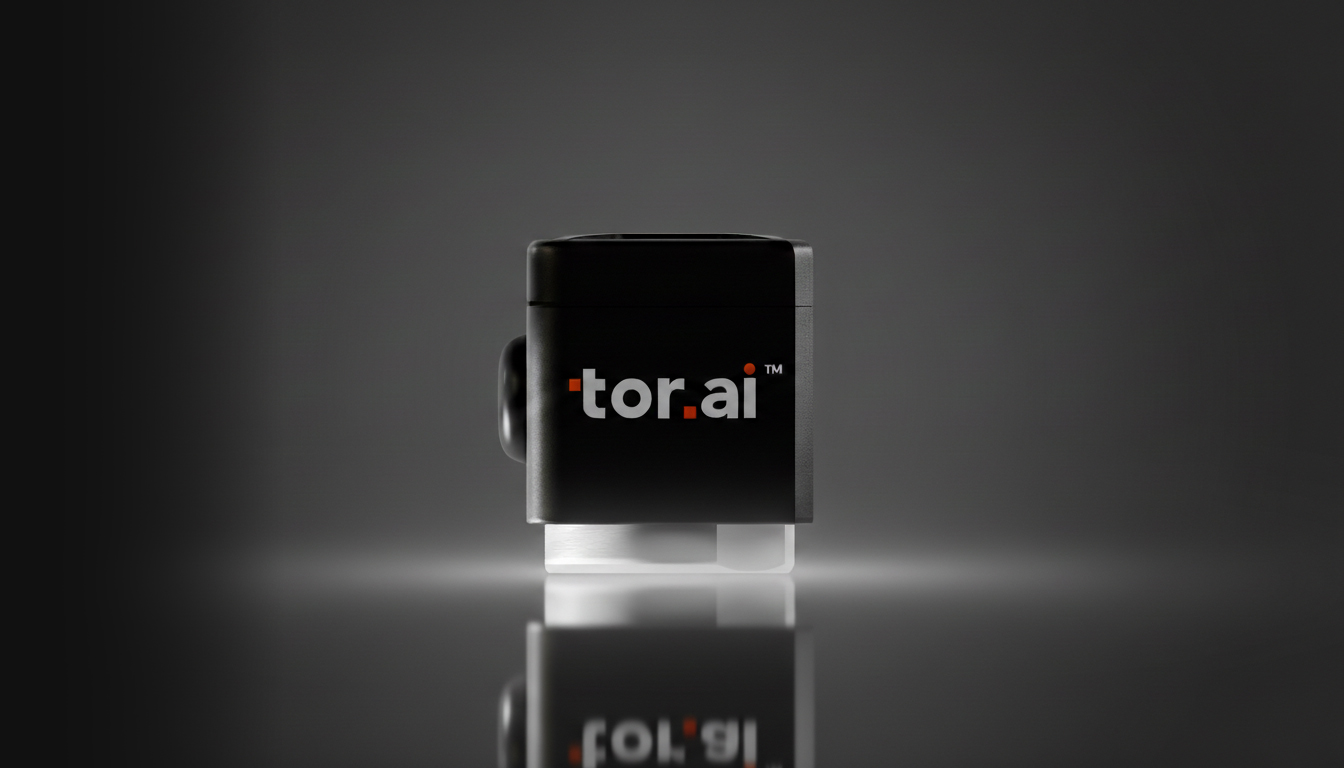

Vibration sensor (Neptune)
3-axis MEMS vibration sensor with 10Hz-1.3kHz frequency range, 6.66kHz sampling, and integrated temperature monitoring. 10,000g shock tolerance with 16-bit resolution and Modbus RS485 connectivity.
Analog I/O
Vibration signal output for gateways and controllers.
8-pin harness
Power, signal, and configuration in one connector.
6.66kHz sampling rate
6,660 samples per second per axis
Condition monitoring
Detect imbalance, bearing wear, and misalignment.
Precise measurement
0.488mg/LSB sensitivity at ±16G range provides precision detection of subtle vibration changes.
Take a closer look.
Captures vibration in X, Y, and Z axes simultaneously with both acceleration and velocity RMS output — enabling detection of complex machinery faults like misalignment, imbalance, and bearing wear that single-axis sensors miss.
Standard Modbus RTU over RS-485 enables direct integration with PLCs, SCADA systems, and industrial gateways without proprietary software or protocol converters — ensuring reliable communication over long cable runs.
Covers the full spectrum of rotating machinery vibration from slow-speed gearboxes (10-100Hz) to high-speed motors and bearings (500Hz+) — outperforming typical MEMS sensors that top out at 1kHz.
Technical specifications and integration details.
General
- Product
- Vibration (Neptune)
- Type
- Vibration / condition monitoring
- Output
- Analog (vibration signal)
- Harness
- 8 Pin
- Sensor
- Accelerometer
Application
- Typical use
- Compressors, motors, pumps, fans
- Benefits
- Predictive maintenance, leak and surge detection
Tor Apollo – Device Configuration & Provisioning
Configure and manage this gateway with Tor Apollo. Web-based setup, FOTA updates, and provisioning for deployment and maintenance without on-site visits.
Learn about Tor Apollo →Use cases
Typical applications for this sensor.
Compressor and motor condition
Address leaks (20–30% air waste), filter neglect, oil carryover, motor overheating. Venus 511 or Jupiter 611 with Tor Neptune and Tor Mercury. RS485 Modbus to controller.
Condenser and refrigerant monitoring
Monitor condenser fouling (30% energy increase), refrigerant leaks, compressor surge. Venus/Jupiter gateways with vibration and temperature sensors for condition-based maintenance.
OEM industrial equipment
Vibration and temperature on same gateway for engine and electrical monitoring. 70K+ connected assets; compatible with major controller brands.
